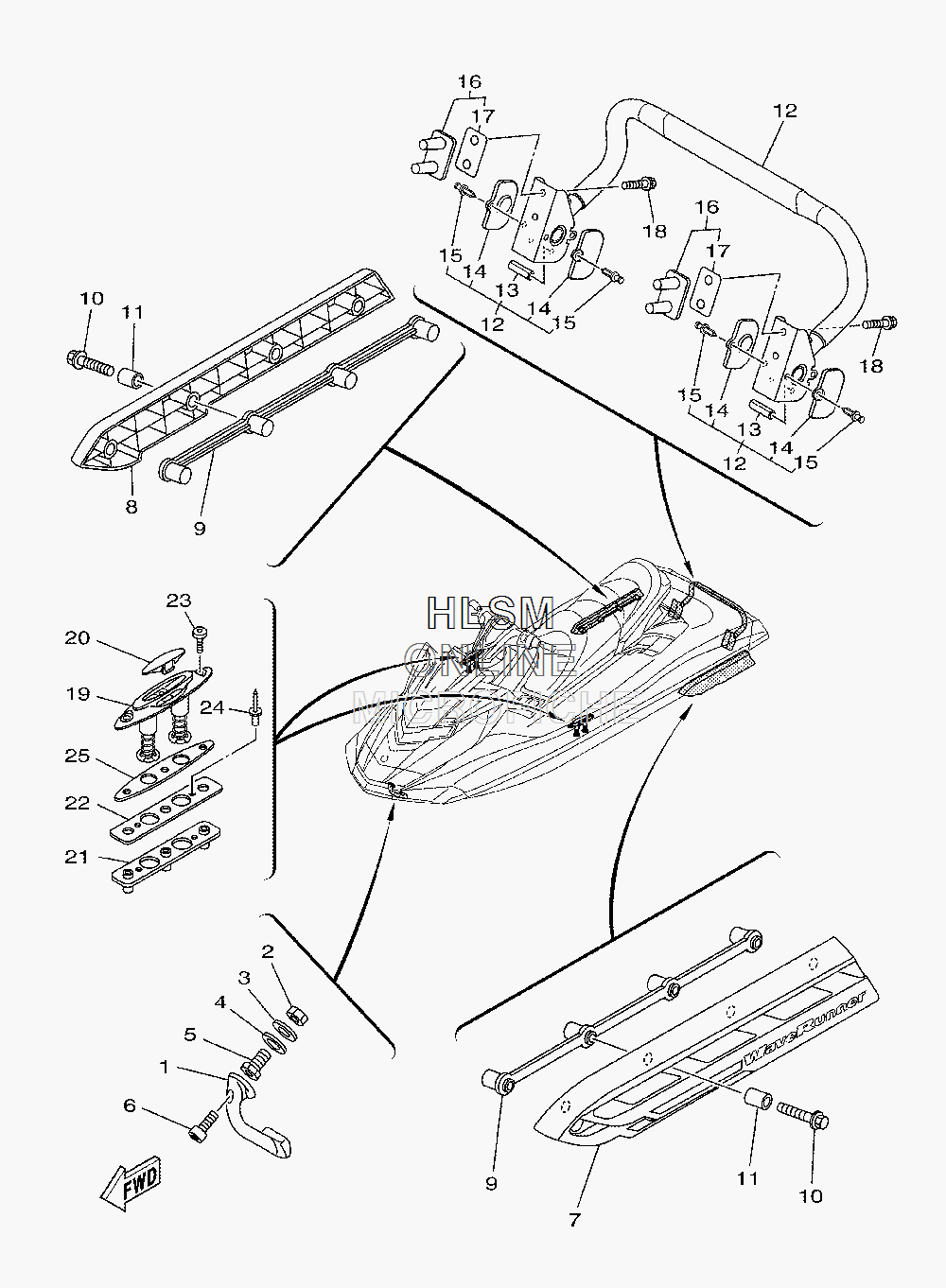

HULL FITTINGS W/ SPONSONS для Yamaha FX CRUISER SHO - 2014 года выпуска`
-
№АртикулНазвание
-
1F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
299780-12600-00 NUT.HEX.(COARSE)NUT.HEX.(COARSE)
-
392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
4F0X-61637-00-00 WASHERWASHER
-
5F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
690110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7F2S-U883N-01-00 STABILIZER LHSTABILIZER LH
-
8F2S-U883P-01-00 STABILIZER RHSTABILIZER RH
-
9F2S-U883T-00-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
1090105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
11F2N-U8169-00-00 SPACERSPACER
-
12F2S-U278A-00-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
13F1W-U771H-00-00 ...SLEEVE 1...SLEEVE 1
-
14F2C-U377H-00-00 ...INNER, COVER SIDE 1...INNER, COVER SIDE 1
-
15F2C-U1314-00-00 ...PIN...PIN
-
16F2S-U278F-00-00 BRACKET, LADDER LHBRACKET, LADDER LH
-
17F2S-U278H-00-00 ...PACKING, BRKT. 1...PACKING, BRKT. 1
-
1890119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19F1X-U163A-02-00 CLEAT ASSY.CLEAT ASSY.
-
20F1X-U826D-00-00 COVERCOVER
-
21F1X-U826C-10-00 BRACKETBRACKET
-
22F1X-U2157-00-00 PACKINGPACKING
-
23F1W-U2624-00-00 BOLTBOLT
-
2490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
25F1X-U2284-00-00 PACKINGPACKING
