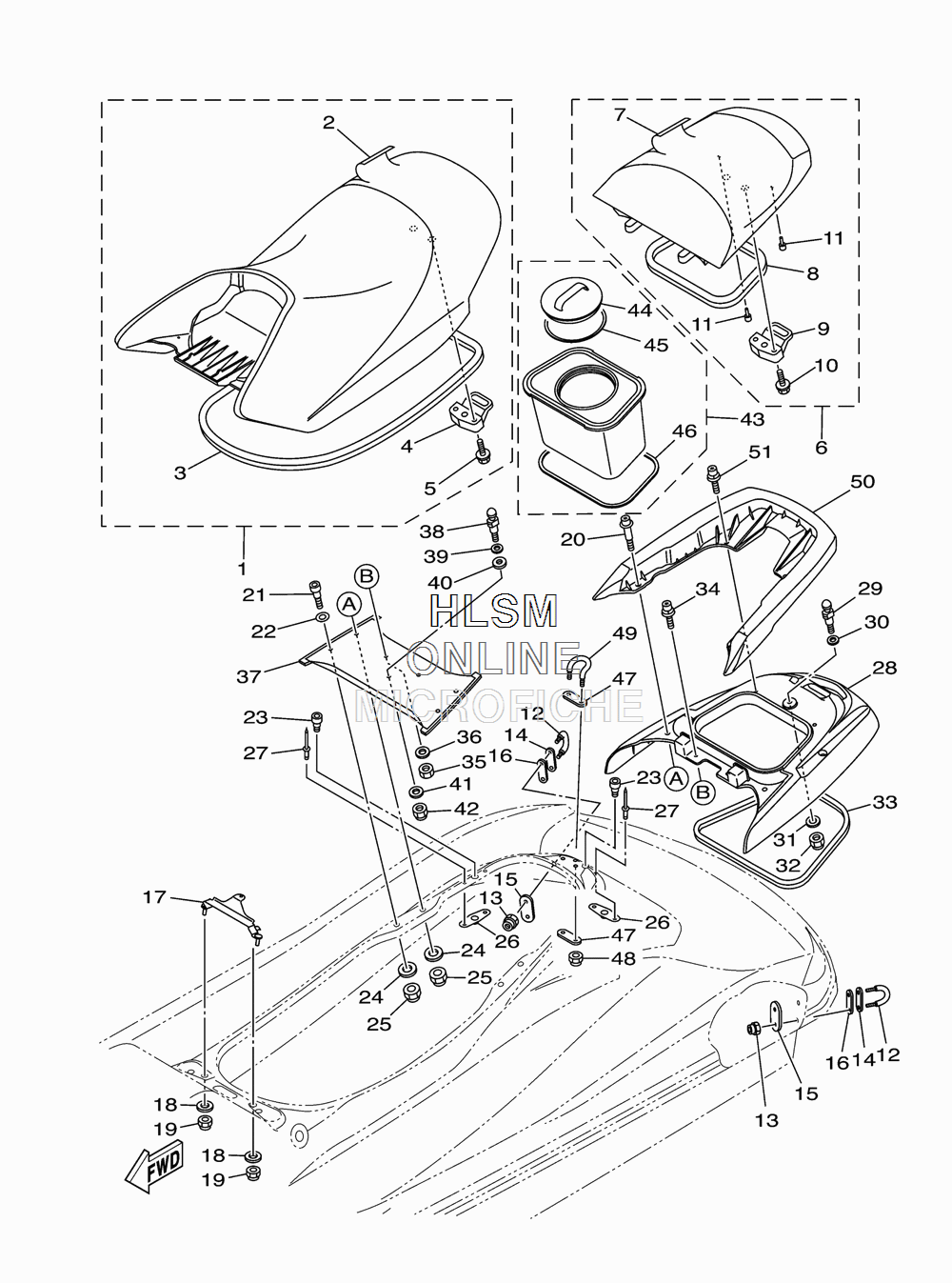

SEAT W/ UNDER LOCKER для Yamaha WAVERUNNER FZS [GX1800AM] - 2013 года выпуска`
-
№АртикулНазвание
-
1F2C-U371A-20-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2F2C-U371B-20-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3F1W-U2664-01-00 ...PACKING...PACKING
-
4F1B-U3850-02-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F2C-U372A-20-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
7F2C-U372B-20-00 ...COVER, SEAT...COVER, SEAT
-
8F2C-U266D-01-00 ...PACKING 5...PACKING 5
-
9F2C-U3850-00-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
1090119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
11F1W-U3768-01-00 ...CUSHION, RUBBER...CUSHION, RUBBER
-
12F2N-U1628-02-00 STERN EYESTERN EYE
-
139572R-08300-00 NUT, FLANGENUT, FLANGE
-
14GP7-U4953-10-00 PLATE APLATE A
-
15F2C-U4953-10-00 PLATE APLATE A
-
16F1B-U1653-02-00 PACKINGPACKING
-
17F2C-U378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
1890201-099U3-00 WASHER, PLATEWASHER, PLATE
-
199572R-08300-00 NUT, FLANGENUT, FLANGE
-
20F2C-U2624-01-00 BOLTBOLT
-
21F2C-U2624-20-00 BOLTBOLT
-
229299R-10200-00 WASHERWASHER
-
23F2C-U2624-10-00 BOLTBOLT
-
249299R-08200-00 WASHERWASHER
-
259572R-08300-00 NUT, FLANGENUT, FLANGE
-
26F2C-U826C-00-00 BRACKETBRACKET
-
2790267-489U1-00 RIVET,BLINDRIVET,BLIND
-
28F2C-U8952-01-00 BEAM, DECK 1BEAM, DECK 1
-
29GH1-U3774-00-00 PINPIN
-
3090201-109U6-00 WASHER, PLATEWASHER, PLATE
-
319299R-10200-00 WASHERWASHER
-
329572R-10300-00 NUT, NYLONNUT, NYLON
-
33F2C-U375E-00-00 PACKING 1PACKING 1
-
34F2C-U2624-30-00 BOLTBOLT
-
359538R-08600-00 NUTNUT
-
369299R-08200-00 WASHERWASHER
-
37F2C-U8952-11-00 BEAM, DECK 1BEAM, DECK 1
-
38F1B-U3774-00-00 PINPIN
-
3992990-12200-00 WASHER, PLAINWASHER, PLAIN
-
40F0X-6375E-00-00 PACKING 1PACKING 1
-
419299R-10200-00 WASHERWASHER
-
429572R-10300-00 NUT, NYLONNUT, NYLON
-
43F2C-U591A-02-00 CASE,ASSY 1CASE,ASSY 1
-
44F2C-U591C-00-00 ...CAP,CASE...CAP,CASE
-
45F2C-U591D-01-00 ...PACKING,CASE...PACKING,CASE
-
46F2C-U266E-00-00 ...PACKING,6...PACKING,6
-
47F2C-U4953-00-00 PLATE APLATE A
-
489572R-10300-00 NUT, NYLONNUT, NYLON
-
49F2C-U1629-00-00 SKI TOWSSKI TOWS
-
50F2C-U271B-20-00 GRIP, HANDGRIP, HAND
-
51F2C-U2624-30-00 BOLTBOLT
