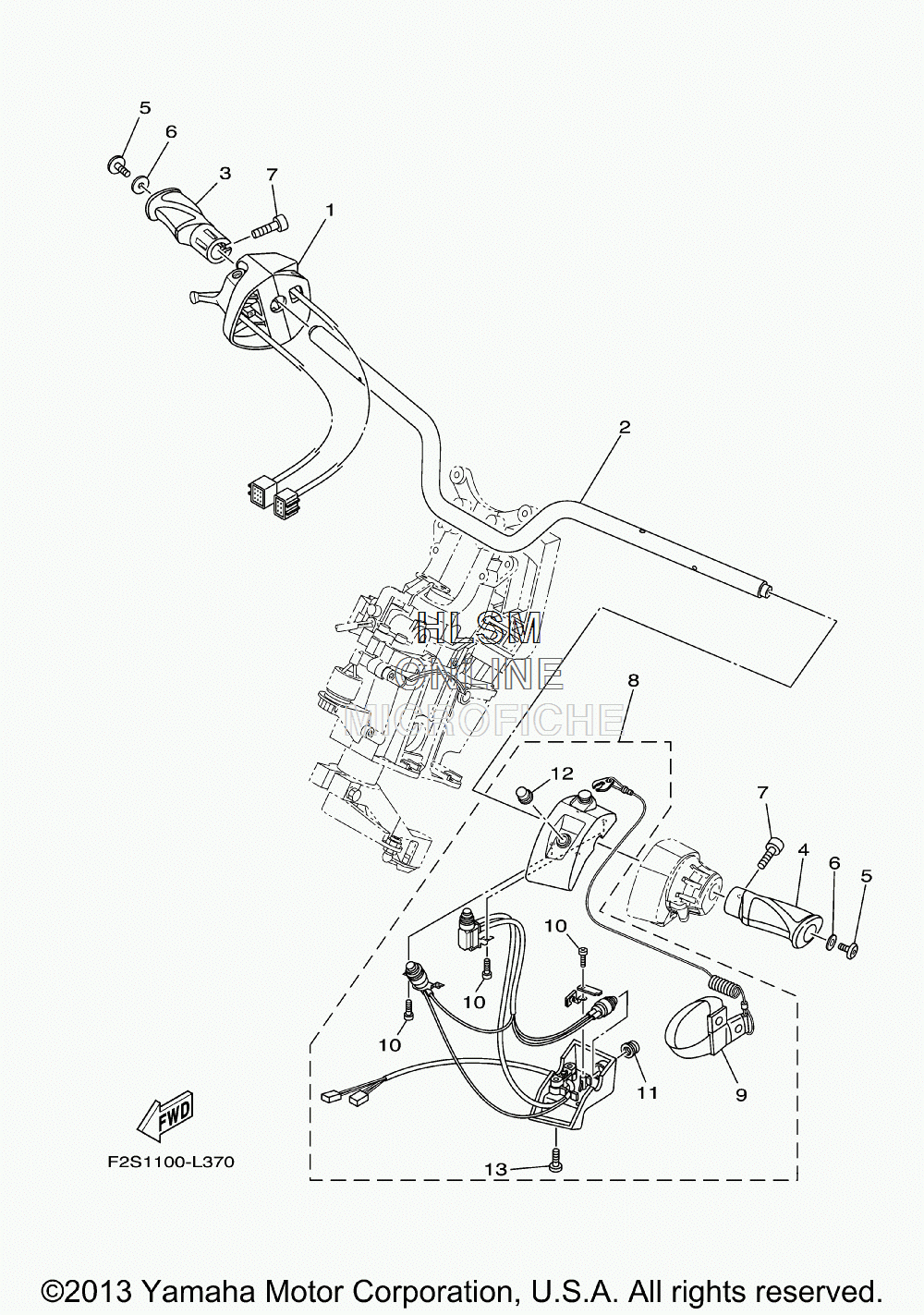

HANDLEBAR W/ CONTROLS для Yamaha WAVERUNNER FX CRUISER SHO [FA1800AM] - 2013 года выпуска`
-
№АртикулНазвание
-
16CS-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
2F2S-U1552-00-00 HANDLEHANDLE
-
3F2S-U155D-02-00 GRIP, HANDLEGRIP, HANDLE
-
4F2S-U155C-02-00 GRIP,HANDLEGRIP,HANDLE
-
590110-06382-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690201-068G0-00 WASHER, PLATEWASHER, PLATE
-
7F2S-U1516-00-00 BOLTBOLT
-
8F2S-68310-00-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
9EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1097780-30610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
11FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
12FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1398580-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
