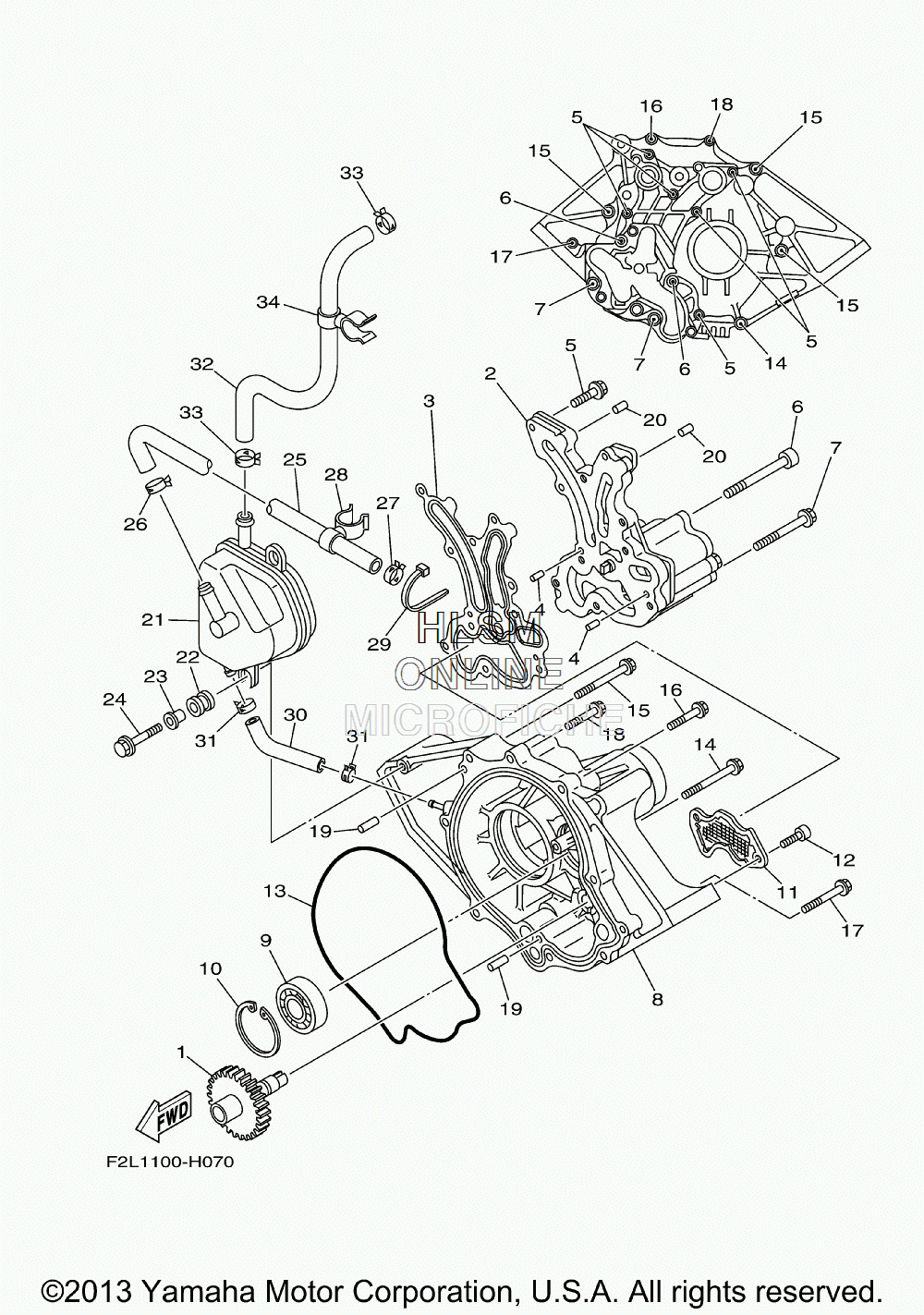

OIL PUMP для Yamaha WAVERUNNER VX SPORT [VX1100CL] - 2012 года выпуска`
-
№АртикулНазвание
-
16B6-13360-00-00 DRIVEN GEAR ASSYDRIVEN GEAR ASSY
-
26D3-13300-10-00 OIL PUMP ASSYOIL PUMP ASSY
-
36B6-13563-01-00 GASKETGASKET
-
493603-12221-00 PIN, DOWELPIN, DOWEL
-
597513-06525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690110-08041-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790119-08085-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
86B6-13327-02-94 COVER, PUMP GEARCOVER, PUMP GEAR
-
993306-30441-00 BEARINGBEARING
-
1099009-52500-00 CIRCLIPCIRCLIP
-
116B6-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1291317-06016-00 BOLTBOLT
-
136B6-13475-01-00 GASKETGASKET
-
1490119-08045-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690119-08043-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1797513-06555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1897513-06535-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1993608-16M16-00 PIN, DOWELPIN, DOWEL
-
2093606-25M00-00 PIN, DOWELPIN, DOWEL
-
216D3-11164-00-00 SEPERATOR, OILSEPERATOR, OIL
-
226A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
2390387-06119-00 COLLARCOLLAR
-
2490119-06M65-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
256D3-11126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
2690467-170A4-00 CLIPCLIP
-
2790467-170A4-00 CLIPCLIP
-
2890464-21001-00 CLAMPCLAMP
-
2990464-18006-00 CLAMPCLAMP
-
306D3-11125-00-00 PIPE, BREATHER 4PIPE, BREATHER 4
-
3190467-110A1-00 CLIPCLIP
-
326D3-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
3390467-170A4-00 CLIPCLIP
-
3490464-21001-00 CLAMPCLAMP
