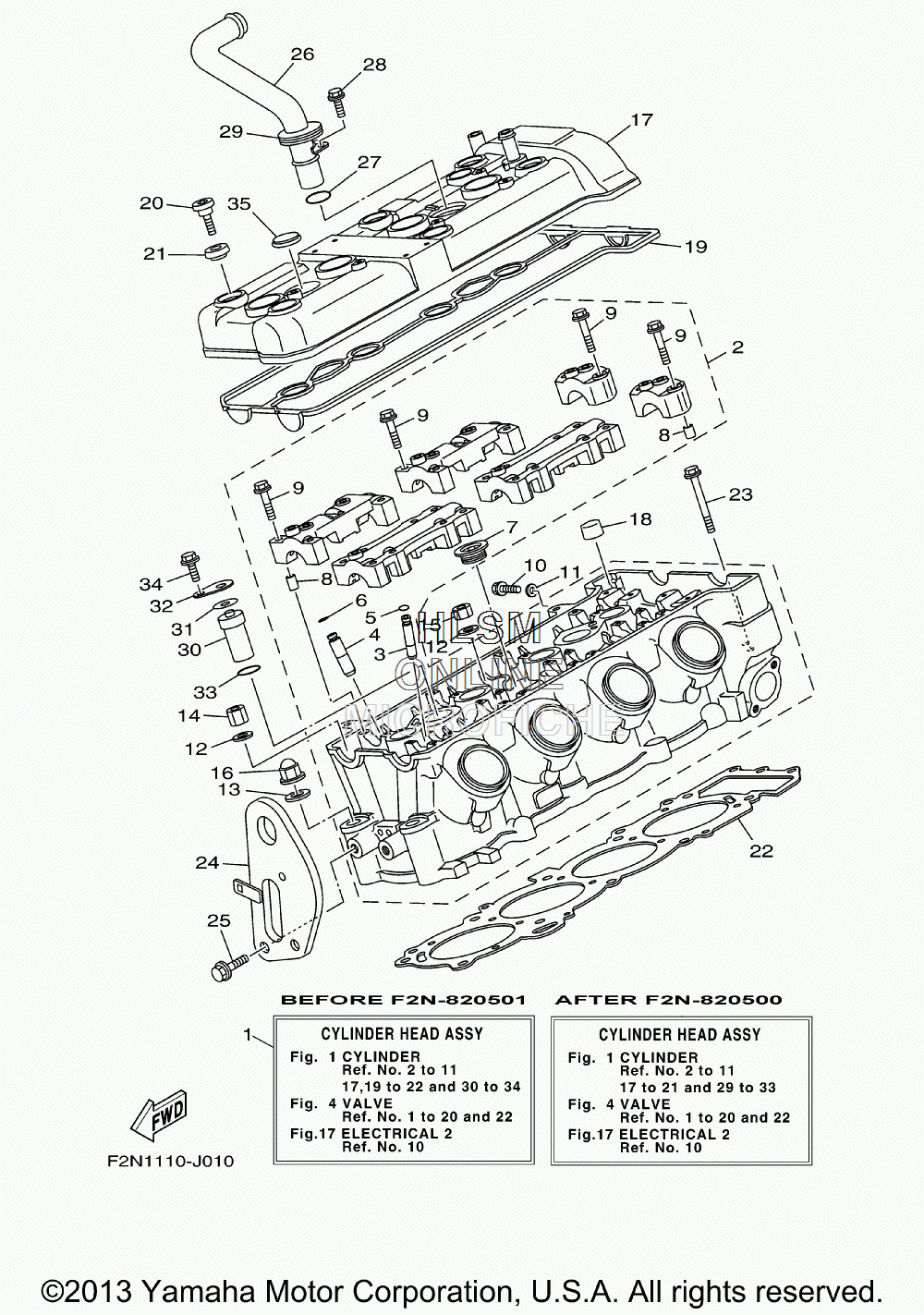

CYLINDER W/ HEAD для Yamaha WAVERUNNER VX CRUISER [VX1100AL] - 2012 года выпуска`
-
№АртикулНазвание
-
16D3-W009A-10-94 CYLINDER HEAD COMPLETE (PID F2N-819901 - F2N-820500)CYLINDER HEAD COMPLETE (PID F2N-819901 - F2N-820500)
-
16D3-W009A-11-94 CYLINDER HEAD COMPLETE (PID F2N-820501 & UP)CYLINDER HEAD COMPLETE (PID F2N-820501 & UP)
-
26D3-11102-00-94 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
33TJ-11133-10-00 ...GUIDE, VALVE...GUIDE, VALVE
-
41WG-11133-11-00 ...GUIDE, VALVE...GUIDE, VALVE
-
593440-07149-00 ...CIRCLIP...CIRCLIP
-
693440-10153-00 ...CIRCLIP...CIRCLIP
-
790340-27001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
891808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
990105-06026-00 ...BOLT WASHER BASED...BOLT WASHER BASED
-
1095023-06012-00 BOLTBOLT
-
1190430-06014-00 GASKETGASKET
-
1290201-10013-00 WASHER, PLATEWASHER, PLATE
-
1390201-10019-00 WASHER, PLATEWASHER, PLATE
-
1490179-10006-00 NUTNUT
-
1590179-10414-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
1690176-10001-00 NUT, CROWNNUT, CROWN
-
176D3-11191-01-94 COVER, CYLINDER HEAD 1 (PID F2N-819901 - F2N-820500)COVER, CYLINDER HEAD 1 (PID F2N-819901 - F2N-820500)
-
176D3-11191-10-00 COVER, CYLINDER HEAD 1 (PID F2N-820501 & UP)COVER, CYLINDER HEAD 1 (PID F2N-820501 & UP)
-
186D3-1118A-00-00 COVER (PID F2N-819901 - F2N-820500 ONLY)COVER (PID F2N-819901 - F2N-820500 ONLY)
-
1960E-11193-01-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
2090109-066F0-00 BOLTBOLT
-
214KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
226D3-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
2397513-06555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
246D3-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
2597513-08520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
266D3-12482-00-00 PIPE 2PIPE 2
-
2793210-18417-00 O-RINGO-RING
-
2891317-06016-00 BOLTBOLT
-
2960E-12494-00-00 SEAL, PIPE 1SEAL, PIPE 1
-
3060E-12483-10-00 PIPE 3PIPE 3
-
3160E-12474-00-00 GASKET 1GASKET 1
-
3260E-12537-00-00 PLATE 2PLATE 2
-
3393210-18417-00 O-RINGO-RING
-
3491317-06016-00 BOLTBOLT
-
3560E-12495-00-00 SEAL, PIPE 2 (PID F2N-819901 - F2N-820500 ONLY)SEAL, PIPE 2 (PID F2N-819901 - F2N-820500 ONLY)
