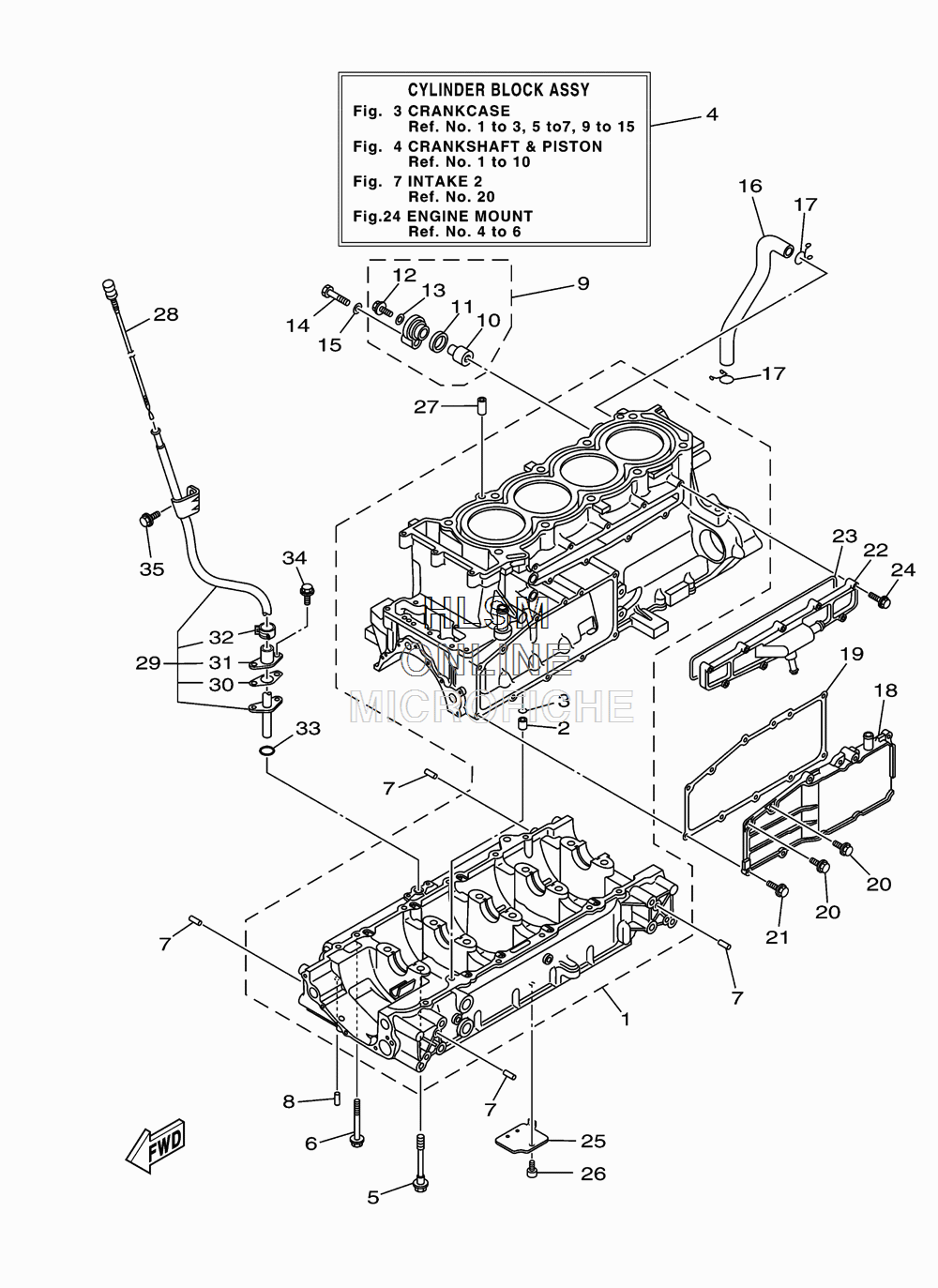

CRANKCASE для Yamaha WAVERUNNER FZS [GX1800AL] - 2012 года выпуска`
-
№АртикулНазвание
-
16S5-15100-20-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
393210-11453-00 ...O-RING...O-RING
-
46S5-W009B-02-94 CYLINDER BLOCK ASSYCYLINDER BLOCK ASSY
-
590105-10071-00 BOLT, FLANGEBOLT, FLANGE
-
695814-06070-00 BOLT, FLANGEBOLT, FLANGE
-
793606-12019-00 PIN, DOWELPIN, DOWEL
-
893604-10M03-00 PIN, DOWELPIN, DOWEL
-
969J-11301-10-00 ANODE COVER ASSYANODE COVER ASSY
-
1068V-11325-02-00 ...ANODE...ANODE
-
1167F-11328-00-00 ...GROMMET, ANODE...GROMMET, ANODE
-
1290105-06M07-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1390430-06M03-00 ...GASKET...GASKET
-
1497095-08040-00 BOLTBOLT
-
1592995-08600-00 WASHERWASHER
-
166S5-11377-00-00 HOSEHOSE
-
1790467-190A0-00 CLIPCLIP
-
186S5-1131M-10-8P COVERCOVER
-
196BH-13557-00-00 GASKETGASKET
-
2095024-06014-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
2195024-06020-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
226S5-12469-01-94 JOINT 1JOINT 1
-
236S5-12517-01-00 GASKET, WATER INLETGASKET, WATER INLET
-
2495023-06025-00 BOLTBOLT
-
256S5-13337-10-00 PLATE, BAFFLE LOWERPLATE, BAFFLE LOWER
-
2690110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2799530-10114-00 PIN, DOWELPIN, DOWEL
-
286S5-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
296S5-8572F-10-00 PIPE, OIL LEVELPIPE, OIL LEVEL
-
306BH-1319K-00-00 ...PLATE...PLATE
-
316BH-85516-00-00 ...SPACER...SPACER
-
3290467-150A1-00 ...CLIP...CLIP
-
3393210-12790-00 O-RINGO-RING
-
3490109-06268-00 BOLTBOLT
-
3595023-06012-00 BOLTBOLT
