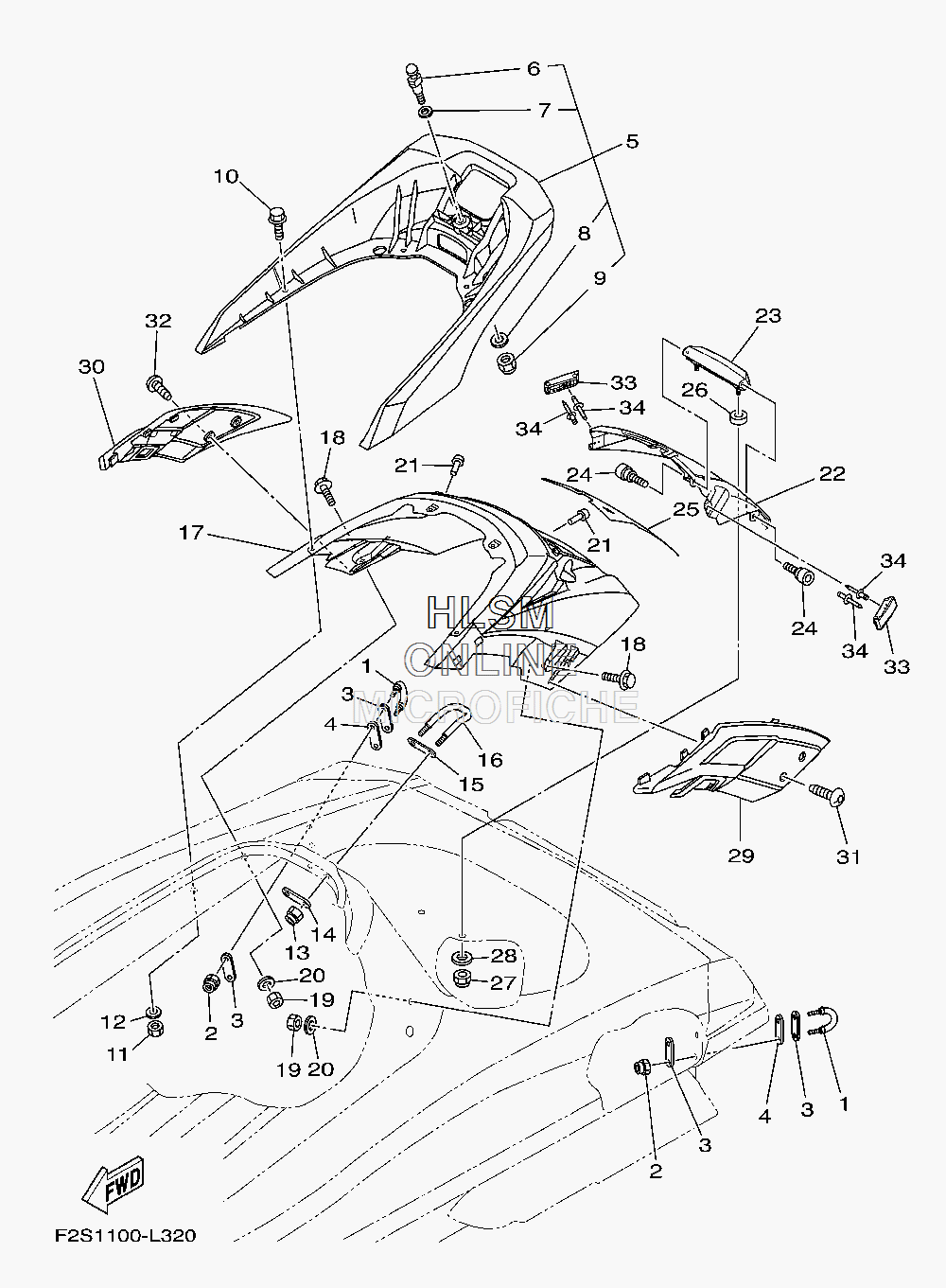

SEAT - REAR GRIP для Yamaha WAVERUNNER FX CRUISER SHO [FA1800AL] - 2012 года выпуска`
-
№АртикулНазвание
-
1F2N-U1628-02-00 STERN EYESTERN EYE
-
29572R-08300-00 NUT, FLANGENUT, FLANGE
-
3GP7-U4953-10-00 PLATE APLATE A
-
4F1B-U1653-02-00 PACKINGPACKING
-
5F2S-U270B-02-00 GRIP ASSY (GRAY FOR BLUE)GRIP ASSY (GRAY FOR BLUE)
-
5F2S-U270B-10-00 GRIP ASSY (BLACK FOR GRAY)GRIP ASSY (BLACK FOR GRAY)
-
6GH1-U3774-00-00 ...PIN...PIN
-
790201-109U6-00 ...WASHER, PLATE...WASHER, PLATE
-
89299R-10200-00 ...WASHER...WASHER
-
99572R-10300-00 ...NUT, NYLON...NUT, NYLON
-
1090119-08829-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
119572R-08300-00 NUT, FLANGENUT, FLANGE
-
129299R-08200-00 WASHERWASHER
-
139572R-08300-00 NUT, FLANGENUT, FLANGE
-
14GP7-U4953-10-00 PLATE APLATE A
-
15GP7-U4953-10-00 PLATE APLATE A
-
16F1B-U1629-00-00 SKI TOWSSKI TOWS
-
17F2S-U89A1-01-P1 STORAGE, STERN (DNMC) FOR GRAYSTORAGE, STERN (DNMC) FOR GRAY
-
17F2S-U89A1-01-P0 STORAGE, STERN (DPBM11) FOR BLUESTORAGE, STERN (DPBM11) FOR BLUE
-
1890119-08832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
199572R-08300-00 NUT, FLANGENUT, FLANGE
-
209299R-08200-00 WASHERWASHER
-
21F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
22F2S-U518M-01-P1 LID LOCKER STERN (DNMC) FOR GRAYLID LOCKER STERN (DNMC) FOR GRAY
-
22F2S-U518M-01-P0 LID LOCKER STERN (DPBM11) FOR BLUELID LOCKER STERN (DPBM11) FOR BLUE
-
23F2S-U271F-01-00 GRIP, LOWERGRIP, LOWER
-
24F2S-U2624-00-00 BOLTBOLT
-
25F2S-U519D-10-00 PACKING CASEPACKING CASE
-
26F2S-U2284-00-00 PACKINGPACKING
-
279572R-08300-00 NUT, FLANGENUT, FLANGE
-
289299R-08200-00 WASHERWASHER
-
29F2S-U890M-10-00 STERN COVER ASSY 1 (BLACK FOR GRAY)STERN COVER ASSY 1 (BLACK FOR GRAY)
-
29F2S-U890M-02-00 STERN COVER ASSY 1 (GRAY FOR BLUE)STERN COVER ASSY 1 (GRAY FOR BLUE)
-
30F2S-U890N-10-00 STERN COVER ASSY 2 (BLACK FOR GRAY)STERN COVER ASSY 2 (BLACK FOR GRAY)
-
30F2S-U890N-02-00 STERN COVER ASSY 2 (GRAY FOR BLUE)STERN COVER ASSY 2 (GRAY FOR BLUE)
-
31F2S-U13C1-00-00 SCREWSCREW
-
32F2S-U13C1-00-00 SCREWSCREW
-
33F2S-U264L-00-00 LOCK 1LOCK 1
-
3490267-409U3-00 RIVET, BLINDRIVET, BLIND
