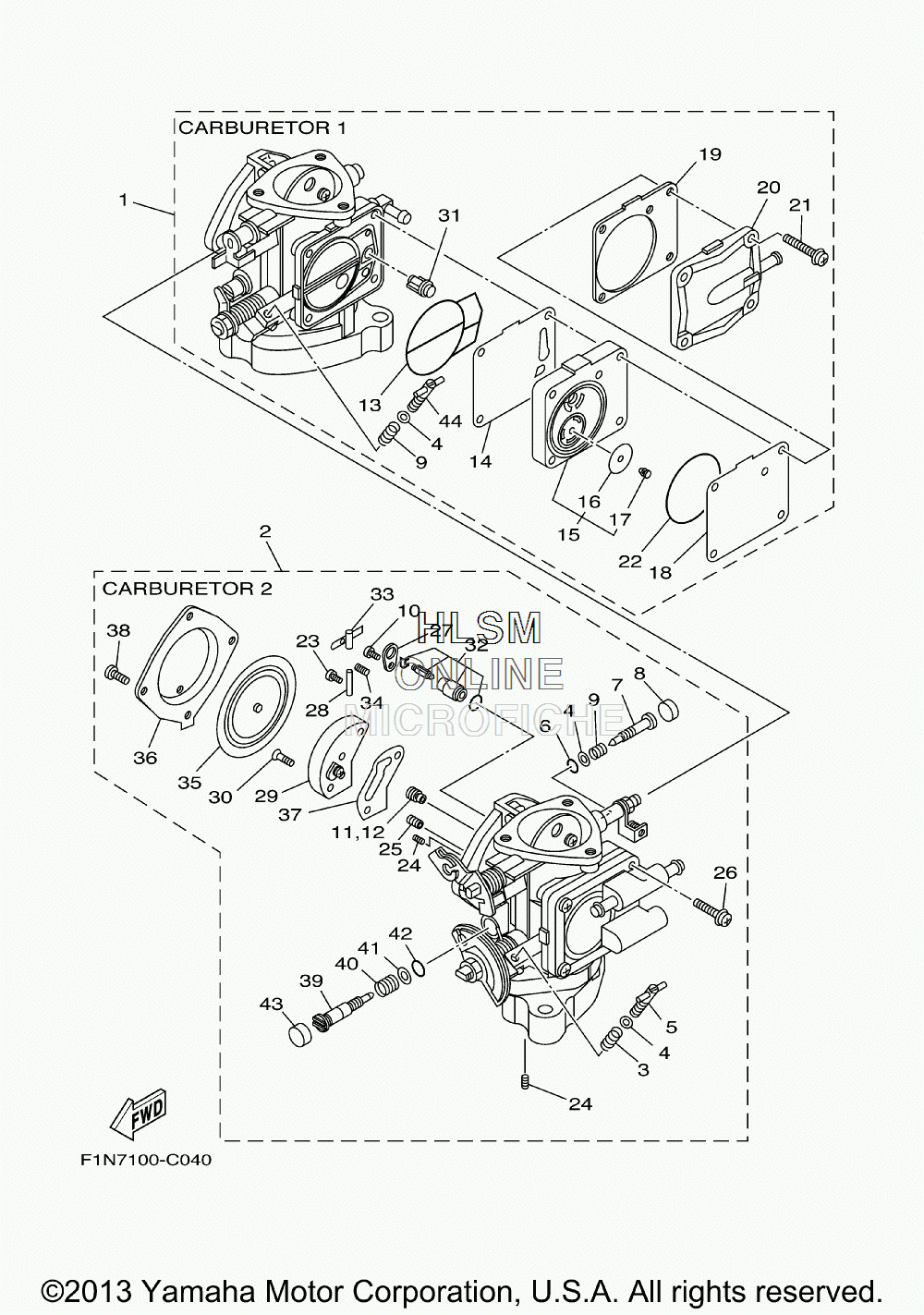

CARBURETOR для Yamaha SUPER JET [SJ700BL] - 2012 года выпуска`
-
№АртикулНазвание
-
164U-14301-10-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
264U-14302-10-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
347X-14133-00-00 ...SPRING, THROTTLE STOP (CARB 2)...SPRING, THROTTLE STOP (CARB 2)
-
4812-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
56M6-14521-01-00 ...SCREW, ADJUST (CARB 2)...SCREW, ADJUST (CARB 2)
-
6812-14147-00-00 ...O-RING...O-RING
-
764U-14946-00-00 ...PLATE, NEEDLE FITTING...PLATE, NEEDLE FITTING
-
864U-1432A-00-00 ...PLUG...PLUG
-
93KW-14932-00-00 ...SPRING, THROTTLE 2...SPRING, THROTTLE 2
-
106M6-14503-00-00 ...SCREW...SCREW
-
113G2-14231-26-00 ...JET, MAIN (#130) (CARB 1)...JET, MAIN (#130) (CARB 1)
-
123G2-14231-26-00 ...JET, MAIN (#130) (CARB 2)...JET, MAIN (#130) (CARB 2)
-
136K8-14564-00-00 ...O-RING...O-RING
-
146K8-24411-20-00 ...DIAPHRAGM (CARB 1)...DIAPHRAGM (CARB 1)
-
156M6-24413-02-00 ...BODY 2 (CARB 1)...BODY 2 (CARB 1)
-
1665U-24421-00-00 ......VALVE, CHECK (CARB 1)......VALVE, CHECK (CARB 1)
-
1765U-24492-00-00 ......BUSH, FUEL PUMP (CARB 1)......BUSH, FUEL PUMP (CARB 1)
-
186K8-24421-10-00 ...VALVE, CHECK (CARB 1)...VALVE, CHECK (CARB 1)
-
196K8-24431-20-00 ...GASKET, FUEL PUMP 1 (CARB 1)...GASKET, FUEL PUMP 1 (CARB 1)
-
206K8-24452-10-00 ...COVER (CARB 1)...COVER (CARB 1)
-
2197980-05330-00 ...SCREW, WITH WASHER (CARB 1)...SCREW, WITH WASHER (CARB 1)
-
226K8-14563-00-00 ...O-RING (CARB 1)...O-RING (CARB 1)
-
236K8-14503-02-00 ...SCREW...SCREW
-
246K8-14521-10-00 ...SCREW...SCREW
-
25830-14231-14-00 ...JET, MAIN (# 70)...JET, MAIN (# 70)
-
2698580-05018-00 ...SCREW, PAN HEAD (CARB 2)...SCREW, PAN HEAD (CARB 2)
-
276K8-14527-11-00 ...PLATE...PLATE
-
28439-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
296R7-24412-02-00 ...BODY 1...BODY 1
-
306K8-14523-11-00 ...SCREW, STOP...SCREW, STOP
-
316R7-14569-00-00 ...STRAINER...STRAINER
-
3261X-14916-16-00 ...JET NEEDLE COMP....JET NEEDLE COMP.
-
336K8-14547-01-00 ...ARM, FLOAT...ARM, FLOAT
-
346R7-14253-00-00 ...SPRING...SPRING
-
356R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
366R7-14542-00-00 ...BODY, PUMP 1...BODY, PUMP 1
-
376K8-14536-11-00 ...GASKET...GASKET
-
3897880-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3964U-14923-10-00 ...SCREW, PILOT...SCREW, PILOT
-
406K8-14589-00-00 ...SPRING...SPRING
-
41822-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
42583-14561-00-00 ...O-RING...O-RING
-
4364U-1432A-10-00 ...PLUG...PLUG
-
446K8-14521-01-00 ...SCREW, ADJUST (CARB 1)...SCREW, ADJUST (CARB 1)
