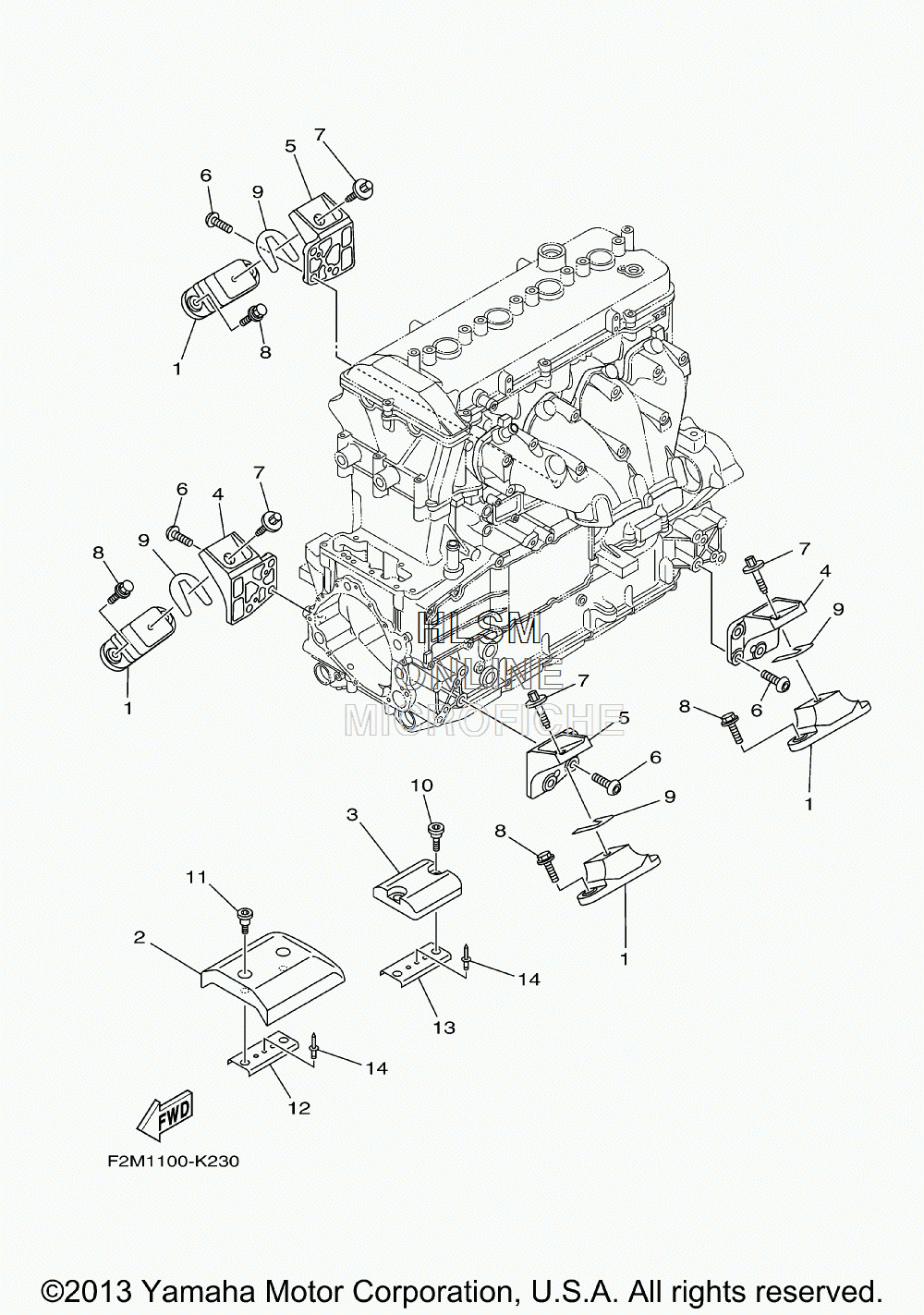

ENGINE MOUNTS для Yamaha WAVERUNNER VXS [VX1800K] - 2011 года выпуска`
-
№АртикулНазвание
-
167X-44517-10-94 MOUNT RUBBERMOUNT RUBBER
-
26CN-G4532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
36CN-G4574-00-00 STOPPER, LOWER MOUNTSTOPPER, LOWER MOUNT
-
46BH-41661-00-94 BRACKET 1BRACKET 1
-
56BH-41662-00-94 BRACKET 2BRACKET 2
-
690149-10052-00 SCREWSCREW
-
790119-08860-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890119-08829-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
9EU0-U7354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
9EU0-U7354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
-
9EU0-U7354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
9EU0-U7354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
9EU0-U7354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
1090109-06864-00 BOLTBOLT
-
1190109-06857-00 BOLTBOLT
-
12F2M-U732B-00-00 PLATEPLATE
-
13F2M-U732B-00-00 PLATEPLATE
-
1490267-489U2-00 RIVET, BLINDRIVET, BLIND
