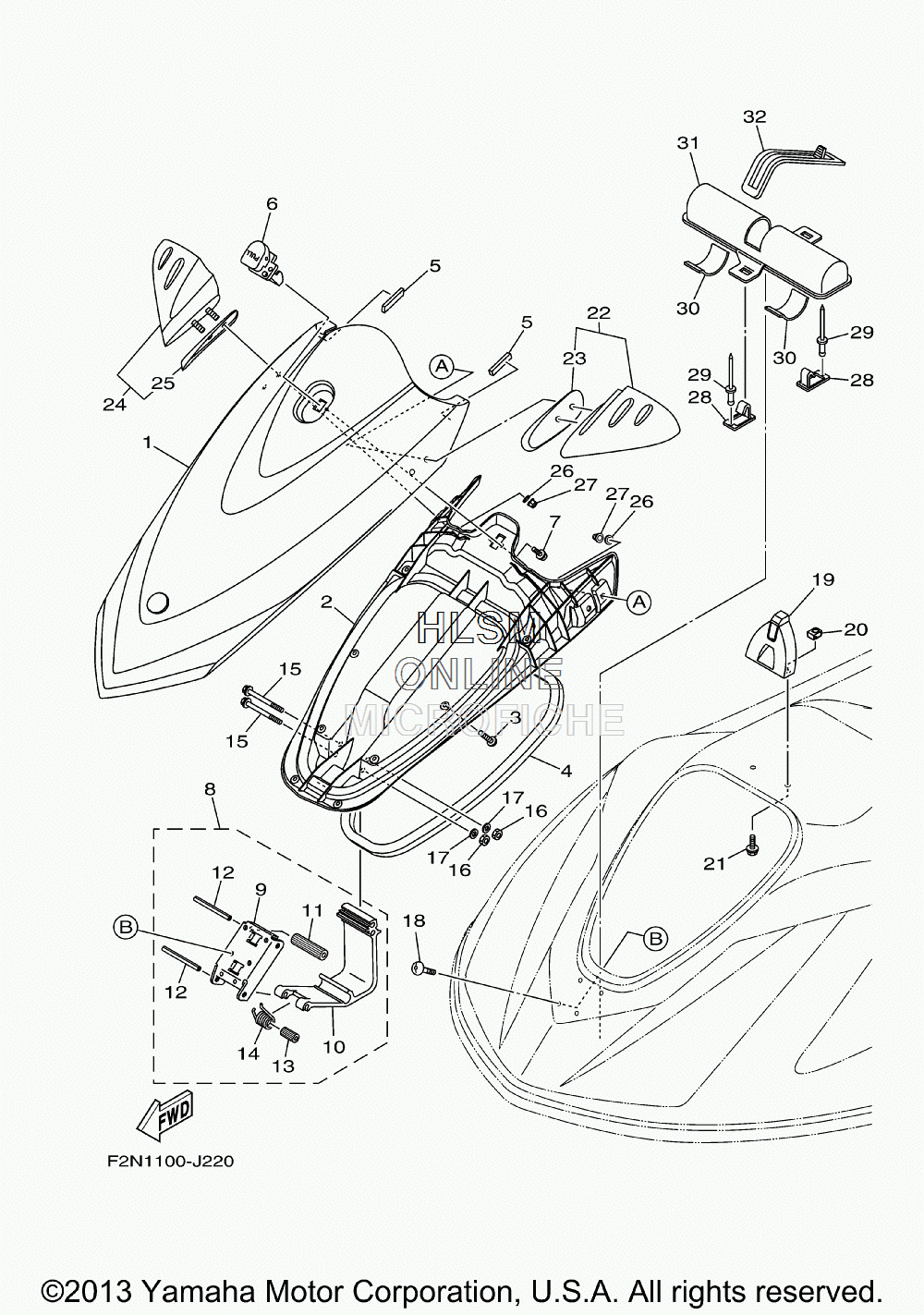

FRONT STORAGE W/ COVER для Yamaha WAVERUNNER VX CRUISER 3-PASS [VX1100AK] - 2011 года выпуска`
-
№АртикулНазвание
-
1F2N-U517B-10-P1 LID, ENGINE ROOM (DPBMT) (BLUE) (CRUISER)LID, ENGINE ROOM (DPBMT) (BLUE) (CRUISER)
-
1F2N-U517B-10-P2 LID, ENGINE ROOM (PBMK) (BLACK) (CRUISER)LID, ENGINE ROOM (PBMK) (BLACK) (CRUISER)
-
1F2N-U517B-10-P3 LID, ENGINE ROOM (NME) (BLACK) (DELUXE)LID, ENGINE ROOM (NME) (BLACK) (DELUXE)
-
1F2N-U517B-10-P4 LID, ENGINE ROOM (DPBM11) (WHITE) (DELUXE)LID, ENGINE ROOM (DPBM11) (WHITE) (DELUXE)
-
2F2N-U213B-00-00 COVER,VENTILATOR 1COVER,VENTILATOR 1
-
390149-05903-00 SCREWSCREW
-
4F2N-U2663-01-00 PACKING 1PACKING 1
-
5F1K-U266B-00-00 PACKING 3PACKING 3
-
6F1K-6517C-00-00 LOCK, LIDLOCK, LID
-
790119-059U4-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8F1K-U515A-00-00 HINGE ASSY.HINGE ASSY.
-
9F1K-U518E-04-00 ...PLATE, HINGE LID...PLATE, HINGE LID
-
10F1K-U517D-05-00 ...HINGE, LID...HINGE, LID
-
11F1K-U135C-01-00 ...ROLLER, DETENT...ROLLER, DETENT
-
12F1K-U517R-00-00 ...PIN, HINGE...PIN, HINGE
-
13F1K-U471E-03-00 ...SPACER 1...SPACER 1
-
14F1K-U283B-02-00 ...SPRING, TORSION...SPRING, TORSION
-
1590105-06826-00 BOLT, FLANGEBOLT, FLANGE
-
169572R-06300-00 NUT, NYLONNUT, NYLON
-
179299R-06200-00 WASHERWASHER
-
18F2N-67823-00-00 SCREWSCREW
-
19F2N-U517F-00-00 HOOK,LID LOCKHOOK,LID LOCK
-
20F1X-U517E-01-00 NUTNUT
-
2190119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
22F2N-U596B-00-00 MIRROR LHMIRROR LH
-
23F2N-U471E-00-00 ...SPACER 1...SPACER 1
-
24F2N-U596C-00-00 MIRROR RHMIRROR RH
-
25F2N-U471F-00-00 ...SPACER 2...SPACER 2
-
269299R-08200-00 WASHERWASHER
-
279572R-08300-00 NUT, FLANGENUT, FLANGE
-
28F1K-U5772-04-00 HOOK AHOOK A
-
2990267-489U1-00 RIVET,BLINDRIVET,BLIND
-
30F1K-U759C-00-00 MAT 2MAT 2
-
31F1K-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
32F1K-U828K-00-00 BAND, 1BAND, 1
