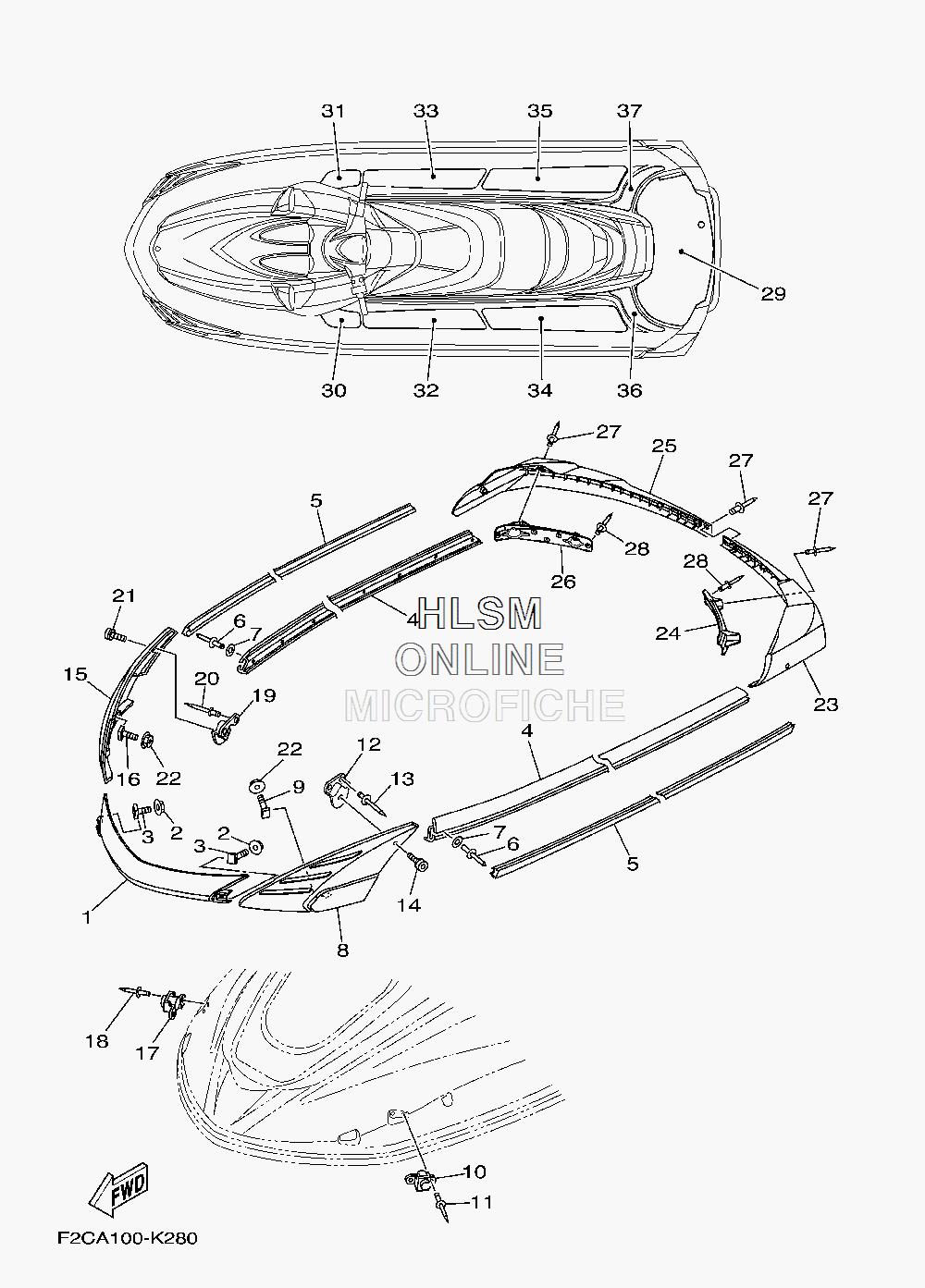

HULL - GUNWALE - MAT для Yamaha WAVERUNNER FZS [GX1800AK] - 2011 года выпуска`
-
№АртикулНазвание
-
1F2C-U2511-00-00 GUNWALE, BOWGUNWALE, BOW
-
2F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
3F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
4F1B-U2512-00-00 GUNWALE, SIDE (SILVER)GUNWALE, SIDE (SILVER)
-
5F1B-U2519-10-00 INNER, GUNWALE (BLACK FOR DRMR)INNER, GUNWALE (BLACK FOR DRMR)
-
5F1B-U2519-40-00 INNER, GUNWALE FOR LGM3INNER, GUNWALE FOR LGM3
-
690267-489U8-00 RIVET, BLINDRIVET, BLIND
-
79299R-05200-00 WASHERWASHER
-
8F1W-U252E-10-00 JOINT, GUNWALE LH (GRAY)JOINT, GUNWALE LH (GRAY)
-
9F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
10F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
12F1W-U4949-00-00 BRACKETBRACKET
-
1390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1490111-06114-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
15F1W-U252F-10-00 JOINT, GUNWALE RH (GRAY)JOINT, GUNWALE RH (GRAY)
-
16F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
17F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
19F1W-U4949-00-00 BRACKETBRACKET
-
2090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2190111-06114-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
22F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
23F1W-U251D-11-00 GUNWALE, STERN 1 (GRAY)GUNWALE, STERN 1 (GRAY)
-
24F1W-U251L-01-00 BRACKET, GUNWALE 1BRACKET, GUNWALE 1
-
25F1W-U251E-11-00 GUNWALE, STERN 2 (GRAY)GUNWALE, STERN 2 (GRAY)
-
26F1W-U251M-01-00 BRACKET, GUNWALE 2BRACKET, GUNWALE 2
-
2790267-48825-00 RIVET, BLINDRIVET, BLIND
-
2890267-489U8-00 RIVET, BLINDRIVET, BLIND
-
29F2C-U3581-00-00 MAT, UPPER (DARK GRAY)MAT, UPPER (DARK GRAY)
-
30F2C-U351H-00-00 MAT, STEP 1 (DARK GRAY)MAT, STEP 1 (DARK GRAY)
-
31F2C-U351J-00-00 MAT, STEP 2 (DARK GRAY)MAT, STEP 2 (DARK GRAY)
-
32F2C-U351K-00-00 MAT, STEP 3 (DARK GRAY)MAT, STEP 3 (DARK GRAY)
-
33F2C-U351M-00-00 MAT, STEP 4 (DARK GRAY)MAT, STEP 4 (DARK GRAY)
-
34F2C-U351N-00-00 MAT, STEP 5 (DARK GRAY)MAT, STEP 5 (DARK GRAY)
-
35F2C-U351P-00-00 MAT, STEP 6 (DARK GRAY)MAT, STEP 6 (DARK GRAY)
-
36F2C-U351R-00-00 MAT, STEP 7 (DARK GRAY)MAT, STEP 7 (DARK GRAY)
-
37F2C-U351S-00-00 MAT, STEP 8 (DARK GRAY)MAT, STEP 8 (DARK GRAY)
