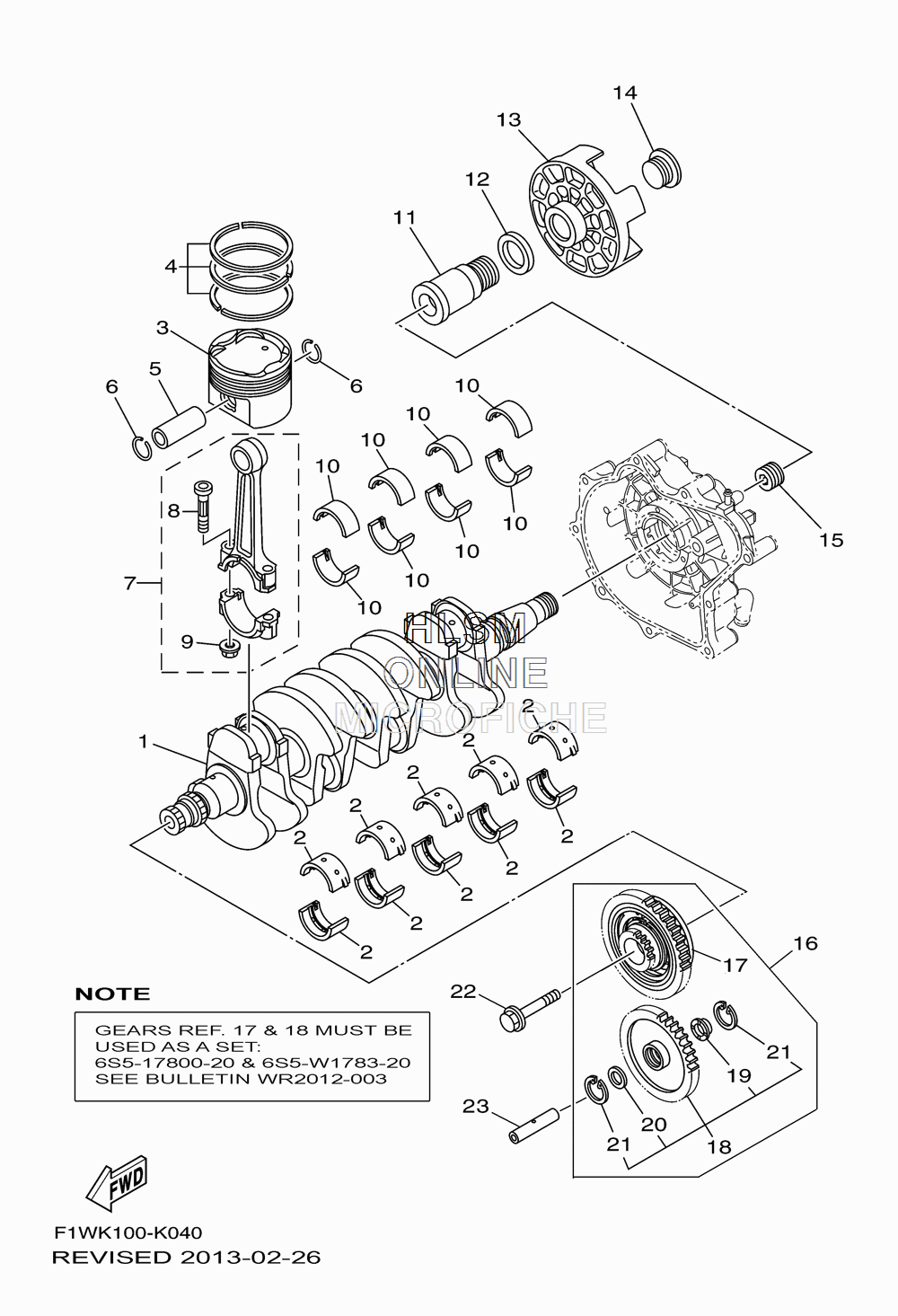

CRANKSHAFT W/ PISTON для Yamaha WAVERUNNER FX SUPER HO [FX1800K] - 2011 года выпуска`

№

Артикул

Название
1

6S5-11411-00-00 CRANKSHAFT

CRANKSHAFT

239 390 ₽
2

6S5-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)

PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)

2 670 ₽
2

6S5-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)

PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)

1 880 ₽
2

6S5-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)

PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)

2 200 ₽
2

6S5-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)

PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)

2 200 ₽
2

6S5-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)

PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)

2 200 ₽
3

6S5-11631-10-B0 PISTON (STD)

PISTON (STD)

13 070 ₽
4

6S5-11603-00-00 PISTON RING SET (STD)

PISTON RING SET (STD)

5 350 ₽
5

6S5-11633-00-00 PIN, PISTON

PIN, PISTON

5 030 ₽
6

93450-24028-00 CIRCLIP

CIRCLIP

180 ₽
7

6S5-11650-00-00 CONNECTING ROD ASSY

CONNECTING ROD ASSY

35 430 ₽
8

6S5-11654-00-00 ...BOLT, CONNECTING ROD

...BOLT, CONNECTING ROD

1 030 ₽
9

90179-09379-00 ...NUT SPEC'L SHAPE

...NUT SPEC'L SHAPE

380 ₽
10

6S5-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)

PLANE BEARING, CONNECTING ROD (OPT) (BLUE)

2 200 ₽
10

6S5-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

PLANE BEARING, CONNECTING ROD (OPT) (BLACK)

1 360 ₽
10

6S5-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

PLANE BEARING, CONNECTING ROD (OPT) (BROWN)

1 880 ₽
10

6S5-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

PLANE BEARING, CONNECTING ROD (OPT) (GREEN)

1 880 ₽
11

6S5-17572-01-00 SHAFT, TRANSFER

SHAFT, TRANSFER

32 750 ₽
12

6S5-12289-00-00 WASHER

WASHER

5 030 ₽
13

6S5-45813-01-94 FLANGE, COUPLING

FLANGE, COUPLING

18 740 ₽
14

6S5-17525-01-00 HOLDER 2

HOLDER 2

7 550 ₽
15

6S5-11459-01-00 NUT, SPECIAL

NUT, SPECIAL

5 030 ₽
16

99999-04107-00 GEAR UNIT & DRIVE GEAR SET (SEE WR2012-003)

GEAR UNIT & DRIVE GEAR SET (SEE WR2012-003)

126 620 ₽
17

6S5-17800-20-00 ...GEAR UNIT ASSY (57T) (SEE WR2012-003)

...GEAR UNIT ASSY (57T) (SEE WR2012-003)

92 290 ₽
18

6S5-W1783-20-00 ...DRIVE GEAR & COLLAR SET (18T) (SEE WR2012-003)

...DRIVE GEAR & COLLAR SET (18T) (SEE WR2012-003)

63 310 ₽
19

6S5-17529-00-00 ...WASHER, THRUST

...WASHER, THRUST

2 040 ₽
20

90201-132G5-00 ...WASHER, PLATE

...WASHER, PLATE

380 ₽
21

99009-24700-00 ...CIRCLIP

...CIRCLIP

290 ₽
22

6S5-17031-00-00 BOLT

BOLT

5 030 ₽
23

6S5-17553-00-00 SHAFT, MIDDLE DRIVEN

SHAFT, MIDDLE DRIVEN

4 400 ₽
