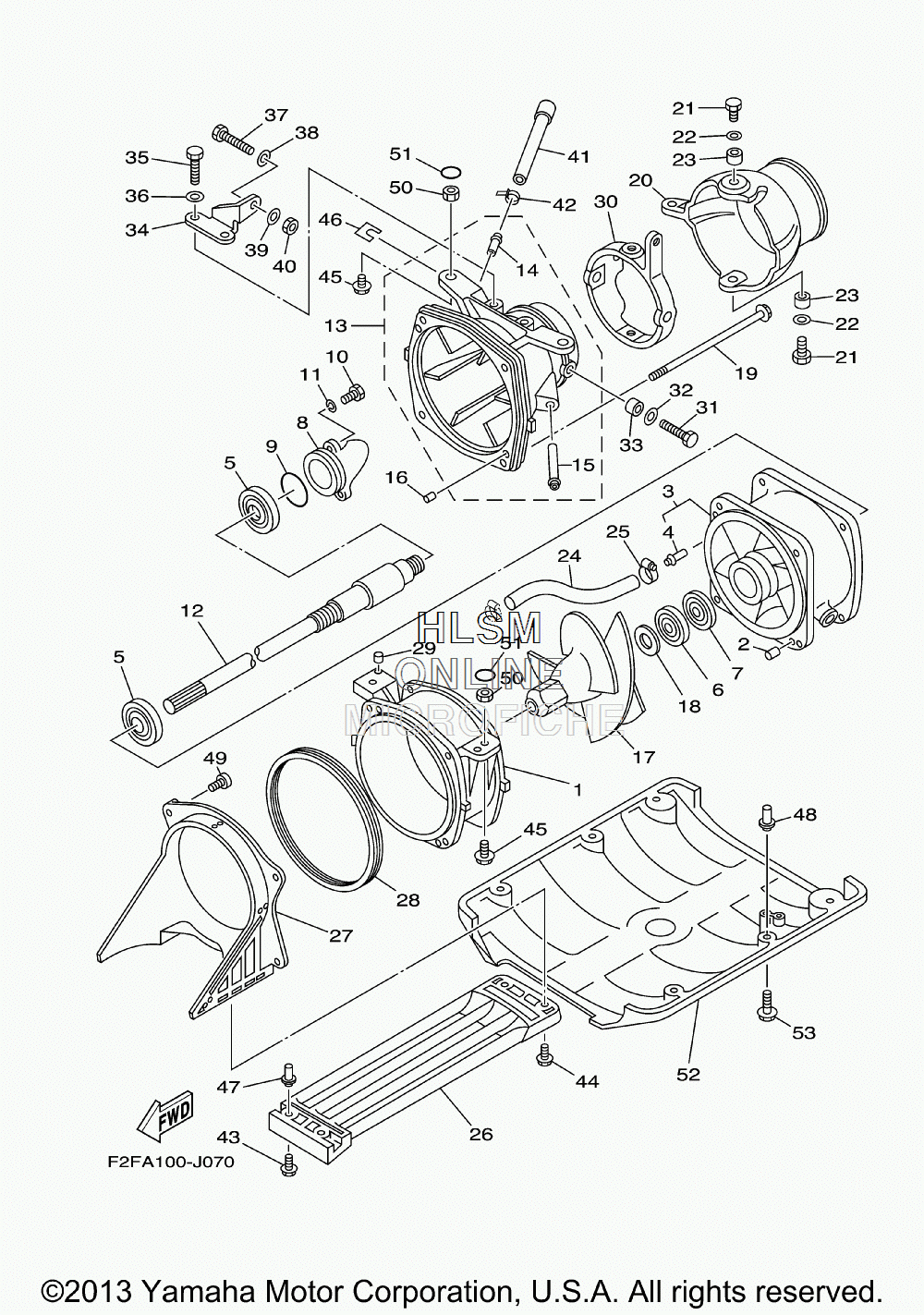

PROPULSION SYSTEM - EXTERNAL для Yamaha SUPER JET [SJ700BK] - 2011 года выпуска`
-
№АртикулНазвание
-
16R7-51312-03-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
293606-12019-00 PIN, DOWELPIN, DOWEL
-
362T-51315-01-94 DUCT, IMPELLERDUCT, IMPELLER
-
46K8-51129-00-00 ...NIPPLE...NIPPLE
-
593306-205U0-00 BEARINGBEARING
-
693102-25M34-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
793101-25M50-00 OIL SEAL S-TYPEOIL SEAL S-TYPE
-
862T-51326-00-00 CAPCAP
-
993210-46M16-00 O-RINGO-RING
-
1097095-06020-00 BOLTBOLT
-
1192995-06600-00 WASHERWASHER
-
126BA-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
1364R-51318-01-94 NOZZLENOZZLE
-
146K8-51129-00-00 ...NIPPLE...NIPPLE
-
1562T-51129-00-00 ...NIPPLE...NIPPLE
-
1693606-12019-00 PIN, DOWELPIN, DOWEL
-
176BA-51321-00-00 IMPELLERIMPELLER
-
1862T-51348-00-00 SPACERSPACER
-
1990119-06M70-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
206BA-51313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
2197095-08020-00 BOLTBOLT
-
2292995-08600-00 WASHERWASHER
-
2390387-08M06-00 COLLARCOLLAR
-
2490445-14M12-00 HOSE (L110)HOSE (L110)
-
2590450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
266R7-51333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
276R7-51311-00-00 DUCT, INTAKEDUCT, INTAKE
-
286R7-51117-01-00 PACKINGPACKING
-
2993606-07M17-00 PIN, DOWELPIN, DOWEL
-
3062T-51190-01-94 RING,TRIMRING,TRIM
-
3197095-08018-00 BOLTBOLT
-
3292995-08600-00 WASHERWASHER
-
3390387-08M08-00 COLLARCOLLAR
-
346BA-51387-00-00 STAYSTAY
-
3597095-06014-00 BOLTBOLT
-
3692995-06600-00 WASHERWASHER
-
3797095-06020-00 BOLTBOLT
-
3892995-06600-00 WASHERWASHER
-
3990201-06M31-00 WASHER, PLATEWASHER, PLATE
-
4095380-06700-00 NUTNUT
-
416BA-51673-00-00 PIPE 1PIPE 1
-
4290465-11M10-00 CLAMPCLAMP
-
4390119-06915-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4490119-06908-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4590119-10948-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46EW2-67354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
46EW2-67354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
46EW2-67354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
46EW2-67354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
4790179-06947-00 NUTNUT
-
4890179-08962-00 NUTNUT
-
4997780-60120-00 SCREW, TAPPINGSCREW, TAPPING
-
5090179-10925-00 NUTNUT
-
51EW2-62723-30-00 SEALSEAL
-
52F2F-6273B-00-00 PLATE 2PLATE 2
-
5390119-08943-00 BOLT, WITH WASHERBOLT, WITH WASHER
