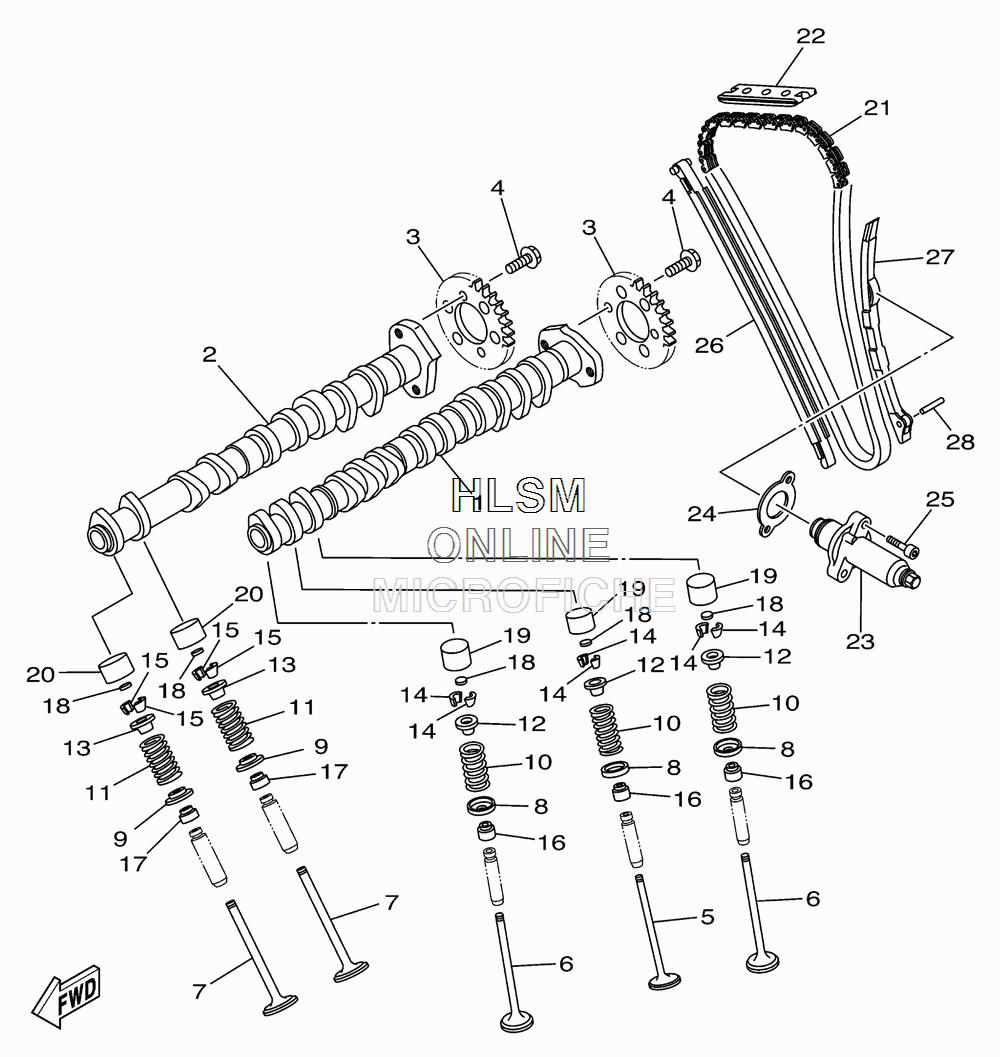

VALVE W/ CAM SHAFTS AND CHAIN для Yamaha VX DELUXE 3-PASS - 2010 года выпуска`

№

Артикул

Название
1

6D3-12171-11-00 CAMSHAFT 1

CAMSHAFT 1

67 090 ₽
2

6D3-12181-00-00 CAMSHAFT 2

CAMSHAFT 2

35 430 ₽
3

6D3-12176-00-00 SPROCKET, CAM CHAIN

SPROCKET, CAM CHAIN

10 700 ₽
4

90105-07004-00 BOLT, FLANGE

BOLT, FLANGE

220 ₽
5

4XV-12111-00-00 VALVE, INTAKE

VALVE, INTAKE

2 200 ₽
6

4XV-12112-00-00 VALVE, INTAKE 2

VALVE, INTAKE 2

2 200 ₽
7

5LV-12121-00-00 VALVE, EXHAUST

VALVE, EXHAUST

5 660 ₽
8

1HX-12116-01-00 SEAT, VALVE SPRING

SEAT, VALVE SPRING

380 ₽
9

3GM-12126-00-00 SEAT, VALVE SPRING 2

SEAT, VALVE SPRING 2

500 ₽
10

4XV-12113-00-00 SPRING, VALVE INNER

SPRING, VALVE INNER

690 ₽
11

4XV-12114-00-00 SPRING, VALVE OUTER

SPRING, VALVE OUTER

970 ₽
12

1HX-12117-00-00 RETAINER, VALVE SPRING

RETAINER, VALVE SPRING

1 040 ₽
13

1WG-12117-00-00 RETAINER, VALVE SPRING

RETAINER, VALVE SPRING

890 ₽
14

1HX-12118-00-00 COTTER, VALVE

COTTER, VALVE

350 ₽
15

1WG-12118-00-00 COTTER, VALVE

COTTER, VALVE

290 ₽
16

4TV-12119-00-00 SEAL, VALVE STEM

SEAL, VALVE STEM

480 ₽
17

4SV-12119-00-00 SEAL, VALVE STEM

SEAL, VALVE STEM

500 ₽
18

1HX-12168-K1-00 PAD, ADJUSTING 2 (1.60)

PAD, ADJUSTING 2 (1.60)

1 470 ₽
18

1HX-12168-M1-00 PAD, ADJUSTING 2 (1.65)

PAD, ADJUSTING 2 (1.65)

1 550 ₽
18

1HX-12168-R1-00 PAD, ADJUSTING 2 (1.70)

PAD, ADJUSTING 2 (1.70)

1 550 ₽
18

1HX-12168-U1-00 PAD, ADJUSTING 2 (1.75)

PAD, ADJUSTING 2 (1.75)

1 470 ₽
18

1HX-12168-W1-00 PAD, ADJUSTING 2 (1.80)

PAD, ADJUSTING 2 (1.80)

780 ₽
18

1HX-12168-Y1-00 PAD, ADJUSTING 2 (1.85)

PAD, ADJUSTING 2 (1.85)

1 470 ₽
18

1HX-12169-11-00 PAD, ADJUSTING 2 (1.90)

PAD, ADJUSTING 2 (1.90)

1 470 ₽
18

1HX-12169-31-00 PAD, ADJUSTING 2 (1.95)

PAD, ADJUSTING 2 (1.95)

1 470 ₽
18

1HX-12169-50-00 PAD, ADJUSTING 2 (2.00)

PAD, ADJUSTING 2 (2.00)

1 470 ₽
18

1HX-12169-70-00 PAD, ADJUSTING 2 (2.05)

PAD, ADJUSTING 2 (2.05)

1 550 ₽
18

1HX-12169-90-00 PAD, ADJUSTING 2 (2.10)

PAD, ADJUSTING 2 (2.10)

1 470 ₽
18

1HX-12169-E0-00 PAD, ADJUSTING 2 (2.15)

PAD, ADJUSTING 2 (2.15)

1 550 ₽
18

1HX-12169-G0-00 PAD, ADJUSTING 2 (2.20)

PAD, ADJUSTING 2 (2.20)

1 130 ₽
18

1HX-12169-J0-00 PAD, ADJUSTING 2 (2.25)

PAD, ADJUSTING 2 (2.25)

1 110 ₽
18

1HX-12169-L0-00 PAD, ADJUSTING 2 (2.30)

PAD, ADJUSTING 2 (2.30)

1 130 ₽
18

1HX-12169-N0-00 PAD, ADJUSTING 2 (2.35)

PAD, ADJUSTING 2 (2.35)

1 130 ₽
18

1HX-12169-T0-00 PAD, ADJUSTING 2 (2.40)

PAD, ADJUSTING 2 (2.40)

1 110 ₽
18

1HX-12168-H1-00 PAD, ADJUSTING 2 (1.55)

PAD, ADJUSTING 2 (1.55)

1 550 ₽
18

1HX-12168-F0-00 PAD, ADJUSTING 2 (1.50)

PAD, ADJUSTING 2 (1.50)

1 550 ₽
18

1HX-12168-A0-00 PAD, ADJUSTING 2 (1.45)

PAD, ADJUSTING 2 (1.45)

1 130 ₽
18

1HX-12168-80-00 PAD, ADJUSTING 2 (1.40)

PAD, ADJUSTING 2 (1.40)

1 130 ₽
18

1HX-12168-60-00 PAD, ADJUSTING 2 (1.35)

PAD, ADJUSTING 2 (1.35)

1 130 ₽
18

1HX-12168-00-00 PAD, ADJUSTING 2 (1.20)

PAD, ADJUSTING 2 (1.20)

1 130 ₽
18

1HX-12168-20-00 PAD, ADJUSTING 2 (1.25)

PAD, ADJUSTING 2 (1.25)

1 130 ₽
18

1HX-12168-40-00 PAD, ADJUSTING 2 (1.30)

PAD, ADJUSTING 2 (1.30)

1 130 ₽
19

3LN-12153-10-00 LIFTER, VALVE YELLOW

LIFTER, VALVE YELLOW

8 340 ₽
20

3FV-12153-10-00 LIFTER, VALVE YELLOW

LIFTER, VALVE YELLOW

6 450 ₽
21

94591-49130-00 CHAIN

CHAIN

8 500 ₽
22

5BE-12241-00-00 GUIDE, STOPPER 2

GUIDE, STOPPER 2

1 520 ₽
23

6D3-12210-00-00 TENSIONER ASSY, CAM CHAIN

TENSIONER ASSY, CAM CHAIN

24 250 ₽
24

4FM-12213-00-00 GASKET, TENSIONER CASE

GASKET, TENSIONER CASE

160 ₽
25

91380-06025-00 BOLT

BOLT

150 ₽
26

6D3-12251-00-00 DAMPER, CHAIN 1

DAMPER, CHAIN 1

6 450 ₽
27

4XV-12252-00-00 DAMPER, CHAIN 2

DAMPER, CHAIN 2

10 700 ₽
28

93607-54002-00 PIN, DOWEL

PIN, DOWEL

1 510 ₽
