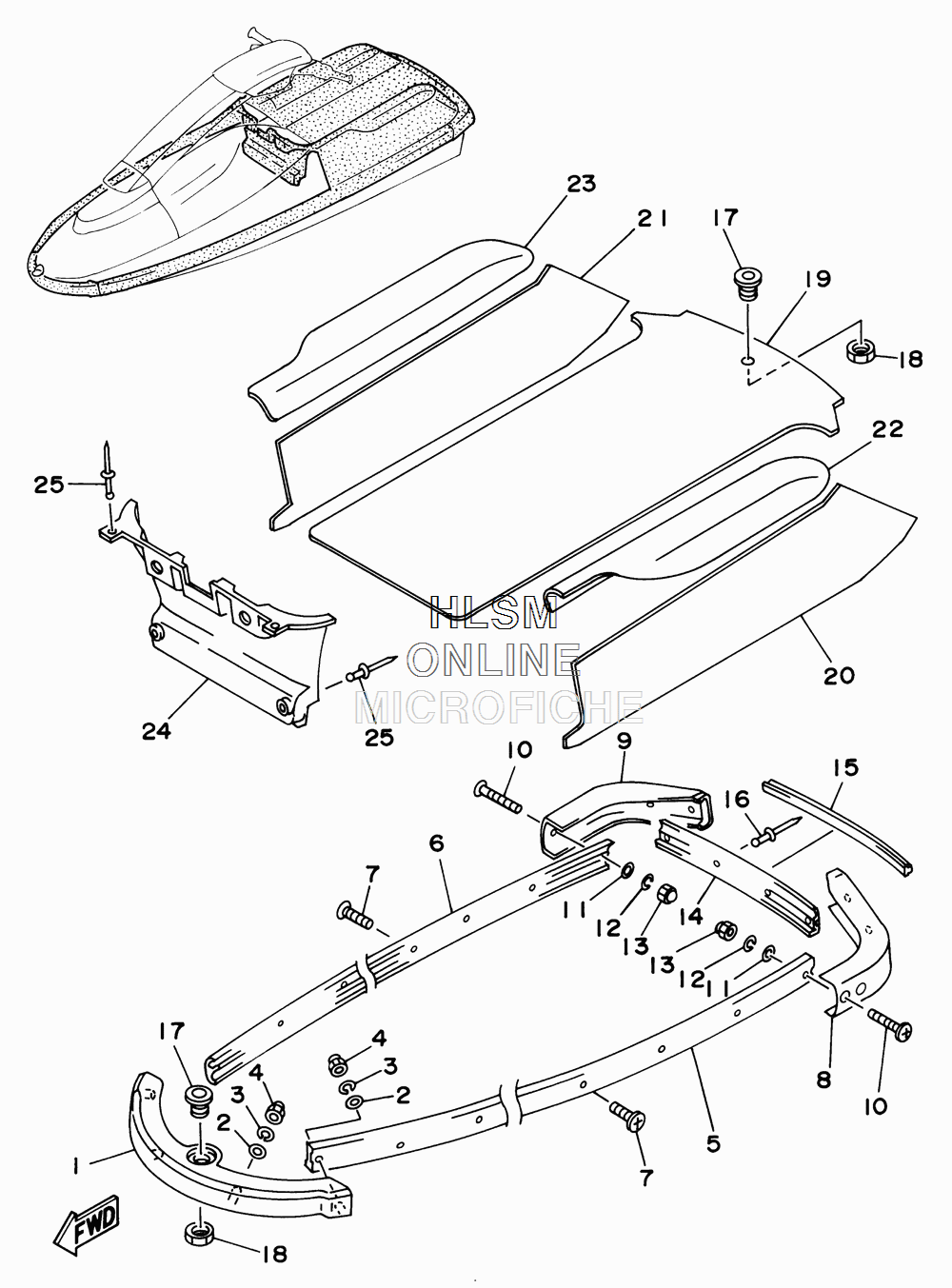

HULL - GUNWALE - MAT для Yamaha SUPER JET - 2010 года выпуска`
-
№АртикулНазвание
-
1GM6-62501-10-00 BOW GUNWALE COMP. BLACKBOW GUNWALE COMP. BLACK
-
292990-06200-00 WASHER, PLAINWASHER, PLAIN
-
392990-06100-00 WASHERWASHER
-
495380-06800-00 NUTNUT
-
5GM6-62552-10-00 GUNWALE,SIDE 1 BLACKGUNWALE,SIDE 1 BLACK
-
6GM6-62553-10-00 GUNWALE, SIDE 2 BLACKGUNWALE, SIDE 2 BLACK
-
790149-05962-00 SCREWSCREW
-
8GM6-6251D-10-00 GUNWALE, STERN 1 (YAMAHA BLACK)GUNWALE, STERN 1 (YAMAHA BLACK)
-
9GM6-6251E-10-00 GUNWALE, STERN 2 (YAMAHA BLACK)GUNWALE, STERN 2 (YAMAHA BLACK)
-
1090149-05960-00 SCREWSCREW
-
1192990-05200-00 WASHER, PLAINWASHER, PLAIN
-
1292990-05100-00 WASHER, SPRINGWASHER, SPRING
-
1390179-05964-00 NUTNUT
-
14GM6-6252C-10-00 COVER, GUNWALE 1 BLACKCOVER, GUNWALE 1 BLACK
-
15GM6-6252D-10-00 COVER, GUNWALE 2 BLACKCOVER, GUNWALE 2 BLACK
-
1690267-48932-00 RIVET, BLINDRIVET, BLIND
-
17FN8-61651-01-00 ROPE HOLEROPE HOLE
-
18EU0-61652-00-00 NUTNUT
-
19F2F-6351B-00-00 MAT,LOWER BLACKMAT,LOWER BLACK
-
20GM6-6351C-00-00 MAT, SIDE 1 BLACKMAT, SIDE 1 BLACK
-
21GM6-6351D-00-00 MAT,SIDE 2 BLACKMAT,SIDE 2 BLACK
-
22GM6-6521C-10-00 PAD 1PAD 1
-
23GM6-6521D-10-00 PAD 2PAD 2
-
24GM6-6351E-10-00 MAT,BOW (YAMAHA BLACK)MAT,BOW (YAMAHA BLACK)
-
2590267-48963-00 RIVET, BLINDRIVET, BLIND
