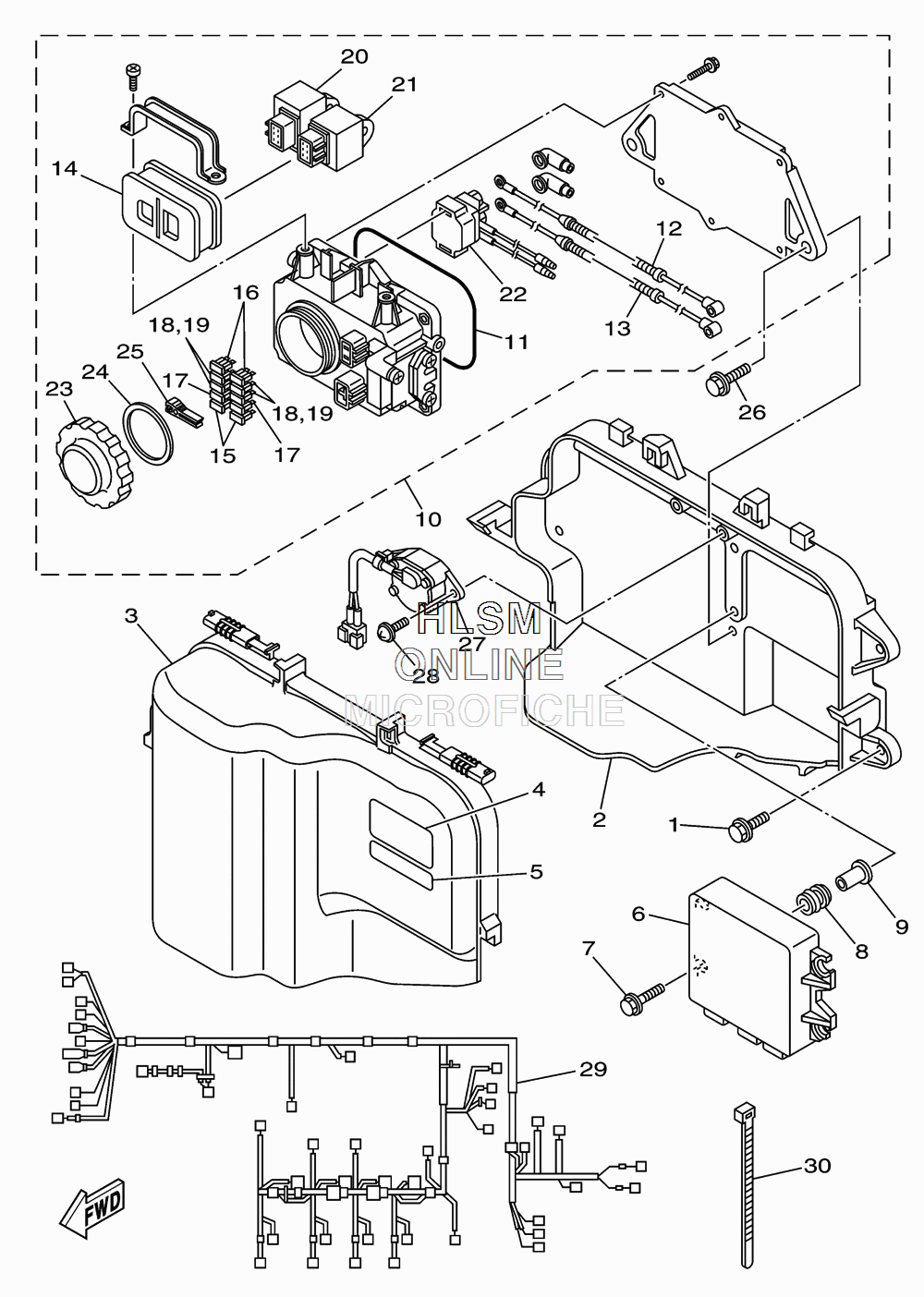

ELECTRICAL 1 для Yamaha FX SHO - 2010 года выпуска`
-
№АртикулНазвание
-
190119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26S5-81845-00-00 PLATEPLATE
-
36S5-81942-00-00 COVERCOVER
-
46B6-83623-00-00 MARK 3MARK 3
-
560E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
66S5-8591A-01-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
790119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
86A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
990387-06119-00 COLLARCOLLAR
-
106S5-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
116D3-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
126S5-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
136S5-82117-00-00 WIRE, LEADWIRE, LEAD
-
146D3-82157-00-00 DAMPERDAMPER
-
1567F-82151-00-00 FUSE (20A)FUSE (20A)
-
1667F-82151-10-00 FUSE (30A)FUSE (30A)
-
1767F-82151-30-00 FUSE (3A)FUSE (3A)
-
1867F-82151-40-00 FUSE (10A)FUSE (10A)
-
1967F-82151-40-00 FUSE (10A)FUSE (10A)
-
2060E-81950-00-00 RELAY ASSYRELAY ASSY
-
2168V-81950-00-00 RELAY ASSYRELAY ASSY
-
226B6-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2366V-8132W-00-00 CAPCAP
-
2466V-81844-00-00 GASKETGASKET
-
2567F-2812A-00-00 PULLER, FUSEPULLER, FUSE
-
2690119-08123-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
276S5-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
2897780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
296S5-8259L-02-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
3090465-14M66-00 CLAMPCLAMP
