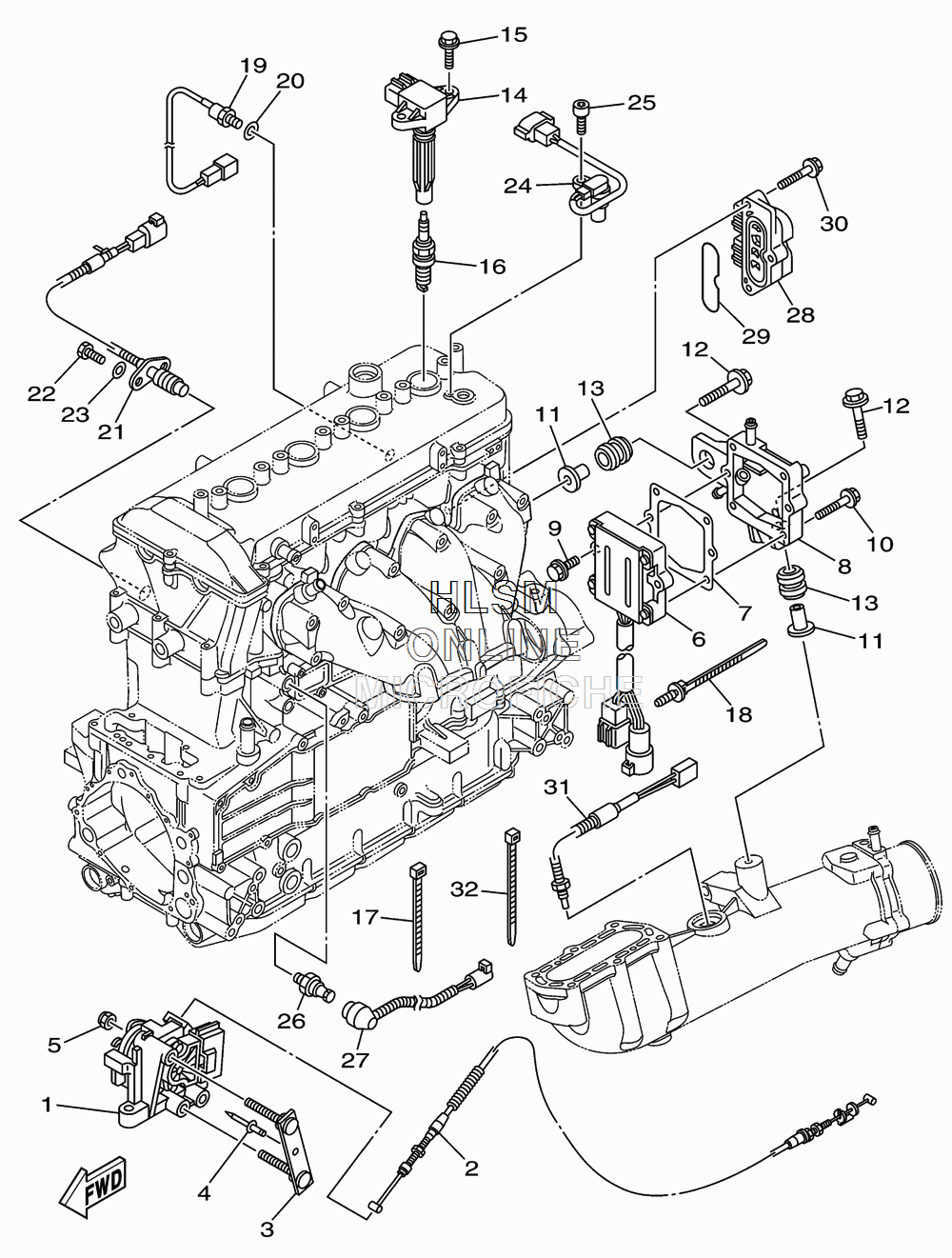

ELECTRICAL 2 для Yamaha FX HO - 2010 года выпуска`
-
№АртикулНазвание
-
16D3-14305-21-00 ACCEL. POSITON SENSOR ASSYACCEL. POSITON SENSOR ASSY
-
26S5-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
3F1W-U7254-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
490267-489U1-00 RIVET,BLINDRIVET,BLIND
-
595780-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
66S5-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
76S5-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
86S5-81972-01-94 COVER, RECTIFIERCOVER, RECTIFIER
-
990119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
116D3-14495-00-00 COLLARCOLLAR
-
1290119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390480-22M15-00 GROMMETGROMMET
-
146S5-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1590105-06903-00 BOLT, FLANGEBOLT, FLANGE
-
1694702-00427-00 PLUG, SPARK (NGK LFR6A)PLUG, SPARK (NGK LFR6A)
-
1790465-13M18-00 CLAMPCLAMP
-
1890464-31001-00 CLAMPCLAMP
-
1961A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2092990-10600-00 WASHER, PLATEWASHER, PLATE
-
2160E-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
2297095-06016-00 BOLTBOLT
-
2392995-06600-00 WASHERWASHER
-
246D3-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
2591380-06016-00 BOLTBOLT
-
2668V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
276S5-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
286D3-8273J-01-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
2993210-60ME8-00 O-RINGO-RING
-
3090119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
316AA-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
3290464-31001-00 CLAMPCLAMP
