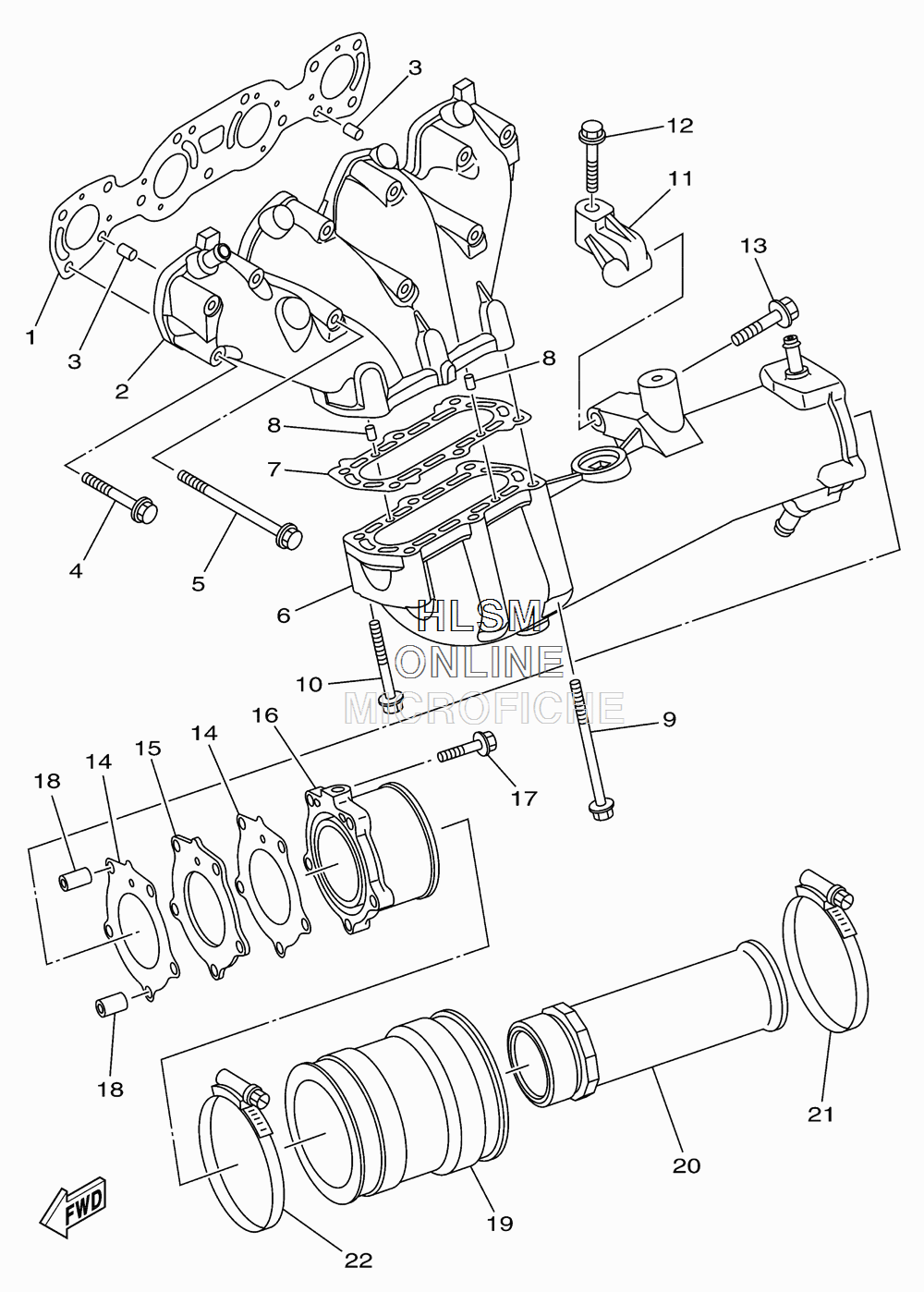

EXHAUST SYSTEM для Yamaha FX CRUISER SHO - 2010 года выпуска`
-
№АртикулНазвание
-
16S5-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
26S5-14711-00-94 MUFFLER 1MUFFLER 1
-
393608-16M16-00 PIN, DOWELPIN, DOWEL
-
490119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-08097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
66S5-14721-00-94 MUFFLER 2MUFFLER 2
-
76S5-14739-00-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
893606-12019-00 PIN, DOWELPIN, DOWEL
-
990119-08097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
116S5-14771-00-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
1290119-08096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-10029-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
146S5-14749-00-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
156S5-1469W-00-00 PLATE, SILENCER 6PLATE, SILENCER 6
-
166S5-14784-00-94 PIPE, TAILPIPE, TAIL
