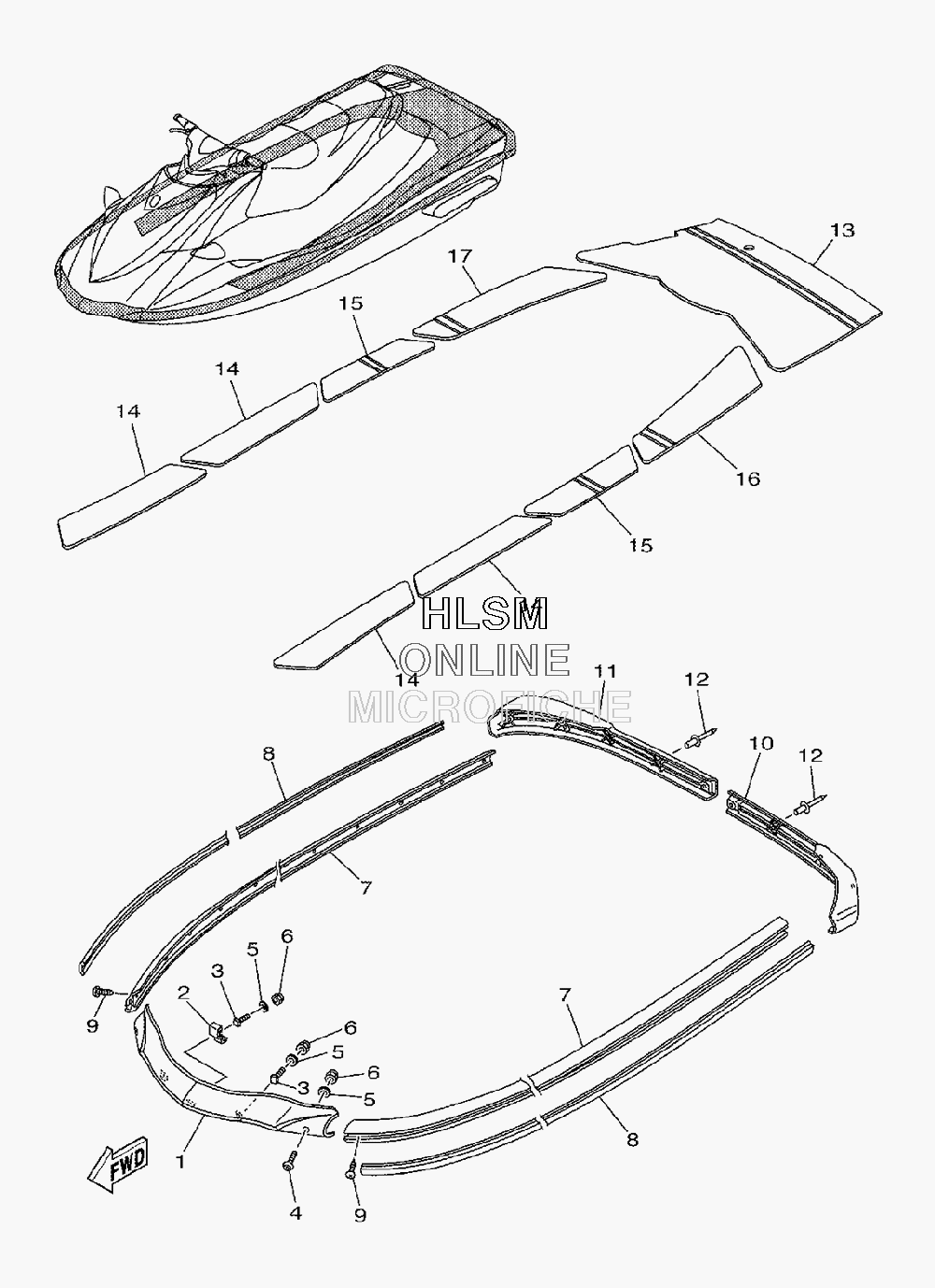

BUMBER W/ GUNWALE MAT для Yamaha VX DELUXE 3-PASS - 2009 года выпуска`
-
№АртикулНазвание
-
1F1K-U2501-02-00 BOW GUNWALE COMP.BOW GUNWALE COMP.
-
2F1K-U2521-02-00 PLATEPLATE
-
3F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
490111-06803-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
59299R-06200-00 WASHERWASHER
-
69572R-06300-00 NUT, NYLONNUT, NYLON
-
7F1K-U2512-03-00 GUNWALE, SIDE GRAYGUNWALE, SIDE GRAY
-
8F1K-U2519-20-00 INNER, GUNWALE FOR BLACKINNER, GUNWALE FOR BLACK
-
8F1K-U2519-02-00 INNER GUNWALE FOR GRAYINNER GUNWALE FOR GRAY
-
8F1K-U2519-02-00 INNER GUNWALE FOR BLUEINNER GUNWALE FOR BLUE
-
8F1K-U2519-20-00 INNER, GUNWALE FOR BLACKINNER, GUNWALE FOR BLACK
-
990169-059U1-00 SCREW, TAPPINGSCREW, TAPPING
-
10F1K-U251D-01-00 GUNWALE, STERN 1 GRAYGUNWALE, STERN 1 GRAY
-
11F1K-U251E-01-00 GUNWALE, STERN 2 GRAYGUNWALE, STERN 2 GRAY
-
1290267-47801-00 RIVET, BLIND GRAYRIVET, BLIND GRAY
-
13F1K-U3581-10-00 MAT, UPPER GRAYMAT, UPPER GRAY
-
14F1K-U351H-10-00 MAT, STEP 1 GRAYMAT, STEP 1 GRAY
-
15F1K-U351J-10-00 MAT, STEP 2 GRAYMAT, STEP 2 GRAY
-
16F1K-U351K-10-00 MAT, STEP 3 GRAYMAT, STEP 3 GRAY
-
17F1K-U351M-10-00 MAT, STEP 4 GRAYMAT, STEP 4 GRAY
