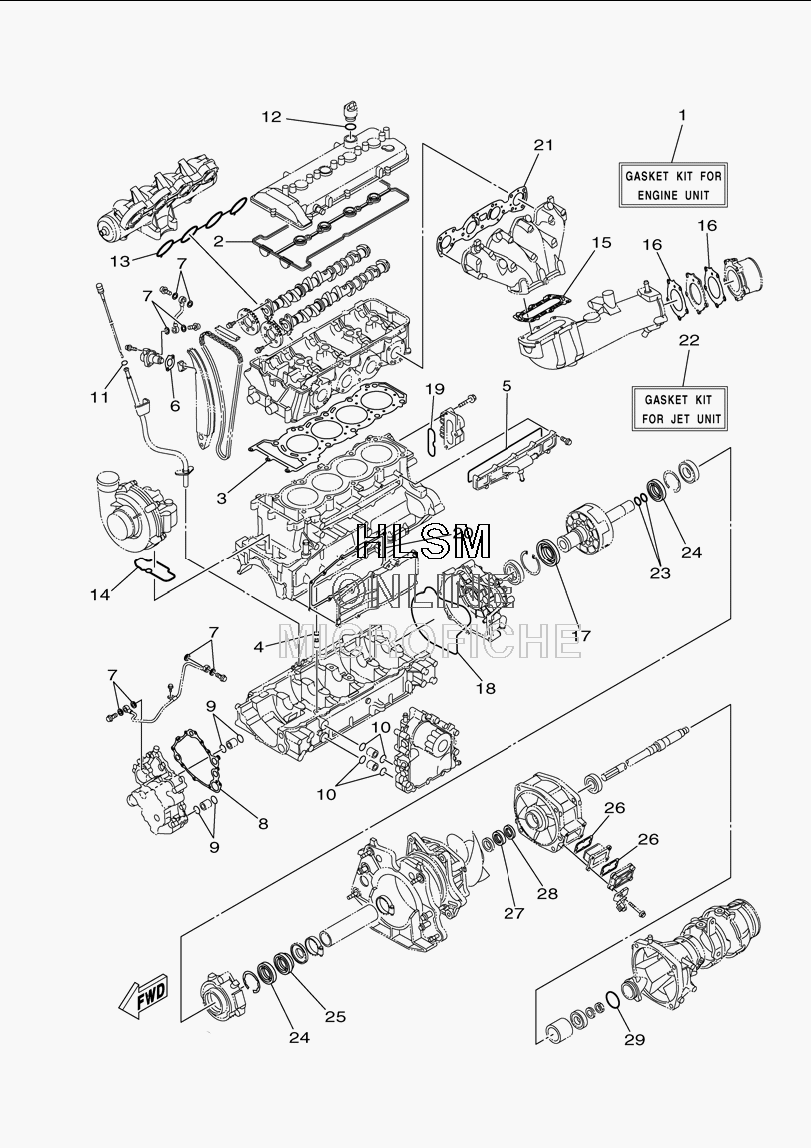

GASKET KIT - ENGINE AND JET UNIT для Yamaha FZR - 2009 года выпуска`
-
№АртикулНазвание
-
16S5-W0001-02-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
26S5-11193-00-00 .GASKET, HEAD COVER 1.GASKET, HEAD COVER 1
-
36S5-11181-00-00 .GASKET, CYLINDER HEAD 1.GASKET, CYLINDER HEAD 1
-
493210-11453-00 .O-RING.O-RING
-
56S5-12517-01-00 .GASKET, WATER INLET.GASKET, WATER INLET
-
66S5-121E2-00-00 .GASKET.GASKET
-
790430-10007-00 .GASKET.GASKET
-
86S5-13563-00-00 .GASKET.GASKET
-
993210-21631-00 .O-RING.O-RING
-
1093210-18322-00 .O-RING.O-RING
-
1193210-12790-00 .O-RING.O-RING
-
1293210-24M79-00 .O-RING.O-RING
-
136S5-13645-00-00 .GASKET, MANIFOLD 1.GASKET, MANIFOLD 1
-
146S5-1416A-00-00 .O-RING.O-RING
-
156S5-14739-00-00 .GASKET, MUFFLER DAMPER 1.GASKET, MUFFLER DAMPER 1
-
166S5-14749-00-00 .GASKET, MUFFLER DAMPER 2.GASKET, MUFFLER DAMPER 2
-
176S5-81167-10-00 .OIL SEAL.OIL SEAL
-
186S5-81168-00-00 .O-RING.O-RING
-
1993210-60ME8-00 .O-RING.O-RING
-
206S5-13557-00-00 .GASKET.GASKET
-
216S5-14613-00-00 .GASKET, EXHAUST PIPE.GASKET, EXHAUST PIPE
-
226S5-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
2393210-22MF1-00 .O-RING.O-RING
-
2493102-29008-00 .OIL SEAL.OIL SEAL
-
2593102-29009-00 .OIL SEAL.OIL SEAL
-
2666V-42414-00-00 .O-RING.O-RING
-
2793102-31009-00 .OIL SEAL.OIL SEAL
-
2893102-31004-00 .OIL SEAL.OIL SEAL
-
296S5-5111K-00-00 .O-RING 1.O-RING 1
