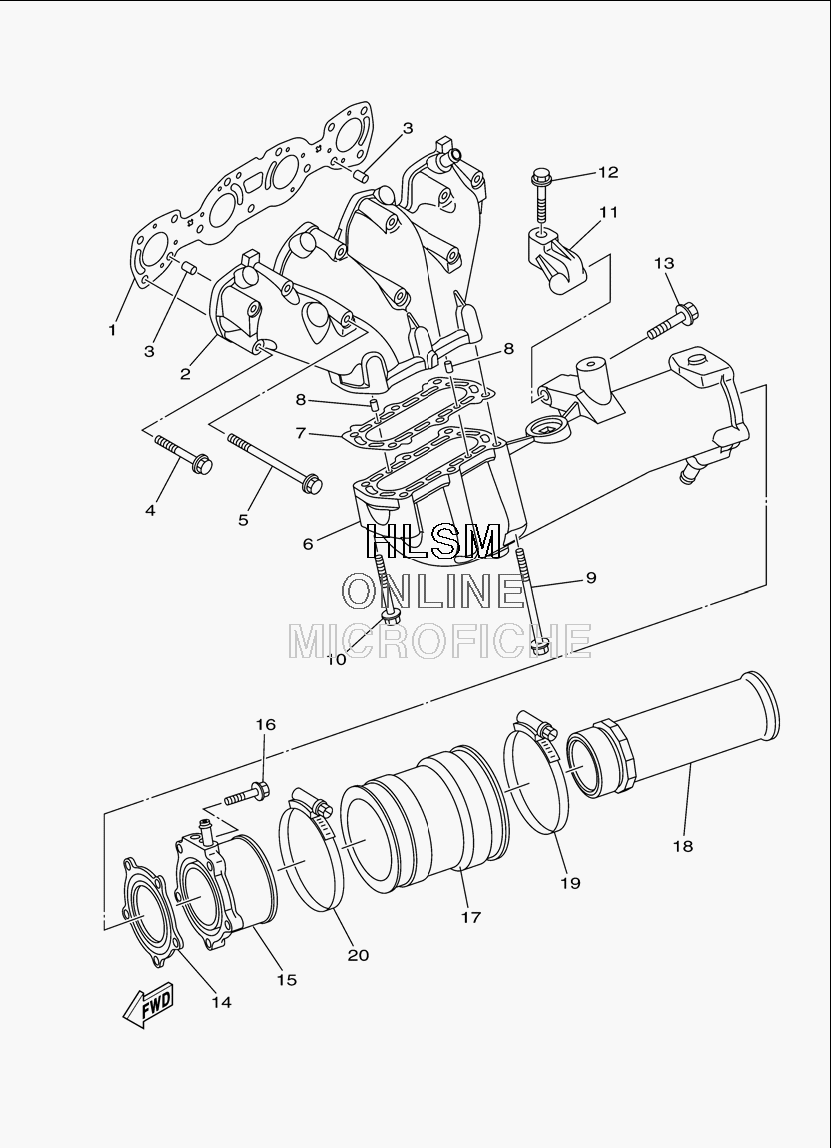

EXHAUST SYSTEM для Yamaha FX CRUISER HO - 2009 года выпуска`
-
№АртикулНазвание
-
16BH-14613-00-00 .GASKET, EXHAUST PIPE.GASKET, EXHAUST PIPE
-
26BH-14711-00-94 MUFFLER 1MUFFLER 1
-
393608-16M16-00 PIN, DOWELPIN, DOWEL
-
490119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-08097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
66BH-14721-00-94 MUFFLER 2MUFFLER 2
-
76S5-14739-00-00 .GASKET, MUFFLER DAMPER 1.GASKET, MUFFLER DAMPER 1
-
893606-12019-00 PIN, DOWELPIN, DOWEL
-
990119-08097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
116S5-14771-00-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
1290119-08096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-10029-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
146BH-14749-00-00 .GASKET, MUFFLER DAMPER 2.GASKET, MUFFLER DAMPER 2
-
156BH-14784-00-94 PIPE, TAILPIPE, TAIL
-
1695024-08035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
176S5-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
186S5-1475A-00-00 PIPE 1PIPE 1
-
1990450-99M06-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2090450-90M10-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
Все узлы модели:
- AIR FILTER ASSY
- BILGE PUMP
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER 2
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- • EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL-DECK 1
- INTAKE 1
- INTAKE AND RIDE PLATE ASSY
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
