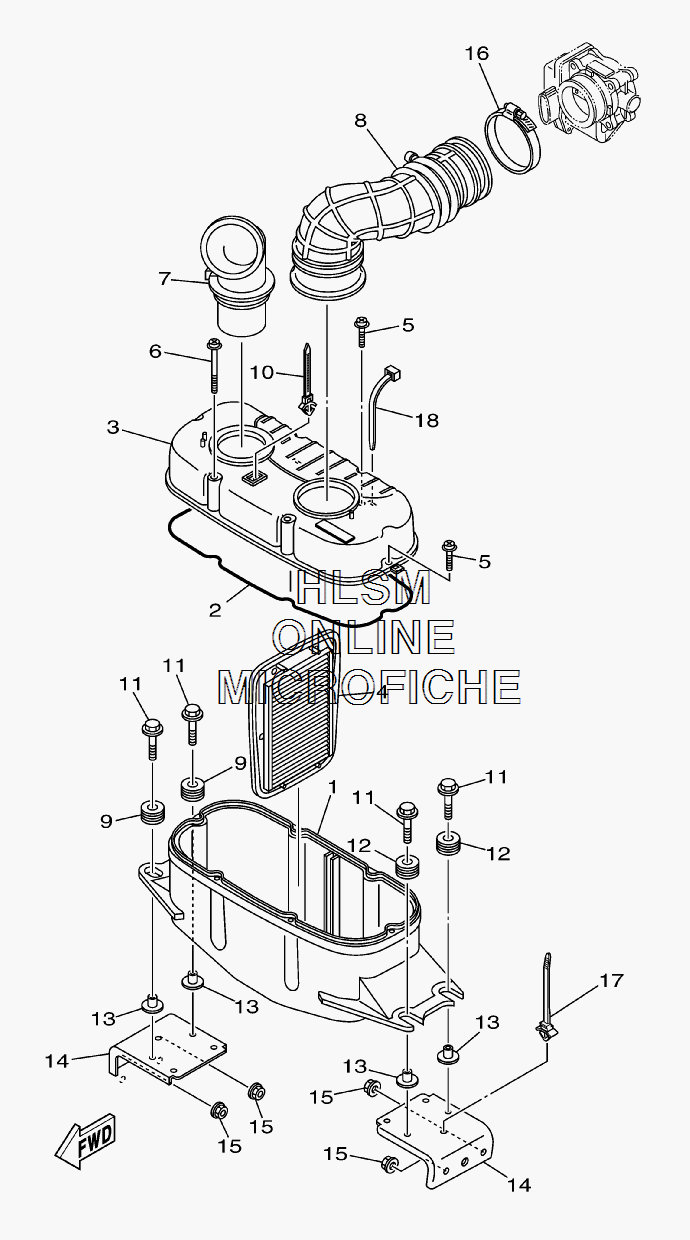

AIR SILENCER W/ INTAKE для Yamaha VX 3-PASS - 2008 года выпуска`
-
№АртикулНазвание
-
16D3-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
24XV-14452-00-00 SEALSEAL
-
36D3-14421-02-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
46D3-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
590159-05013-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
690159-05014-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
76D3-14437-00-00 DUCTDUCT
-
86D3-14419-01-00 PIPEPIPE
-
990480-22M15-00 GROMMETGROMMET
-
1090464-12089-00 CLAMPCLAMP
-
1190119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290480-22M15-00 GROMMETGROMMET
-
136D3-14495-00-00 COLLARCOLLAR
-
14F1K-U8572-02-00 BRACKET 2BRACKET 2
-
159572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
1690601-175UR-00 BAND, HOSE 75BAND, HOSE 75
-
1790464-38800-00 CLAMPCLAMP
-
1890464-40825-00 CLAMPCLAMP
