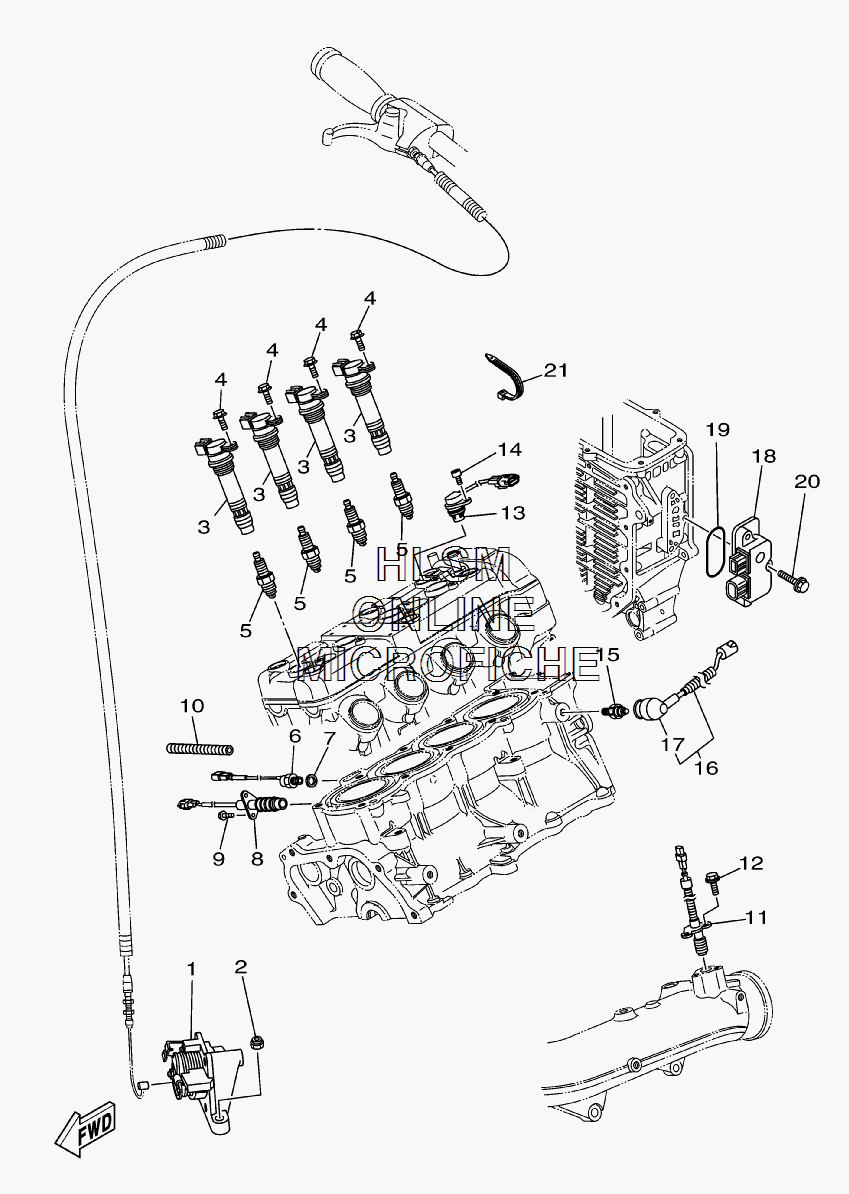

ELECTRICAL 2 для Yamaha VX SPORT 3-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
16D3-14305-20-00 ACCEL. POSITON SENSOR ASSYACCEL. POSITON SENSOR ASSY
-
295780-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
36D3-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
495880-06016-00 BOLT, FLANGEBOLT, FLANGE
-
594702-00409-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
661A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
792990-10600-00 WASHER, PLATEWASHER, PLATE
-
860E-82560-A1-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
997595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090446-14M23-00 HOSE (L180)HOSE (L180)
-
116D3-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1297595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
136D3-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
1491380-06016-00 BOLTBOLT
-
1568V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
1660E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
1760E-82532-00-00 ...CAP...CAP
-
186D3-8273J-01-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
1993210-60ME8-00 O-RINGO-RING
-
2090119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190465-13M18-00 CLAMPCLAMP
