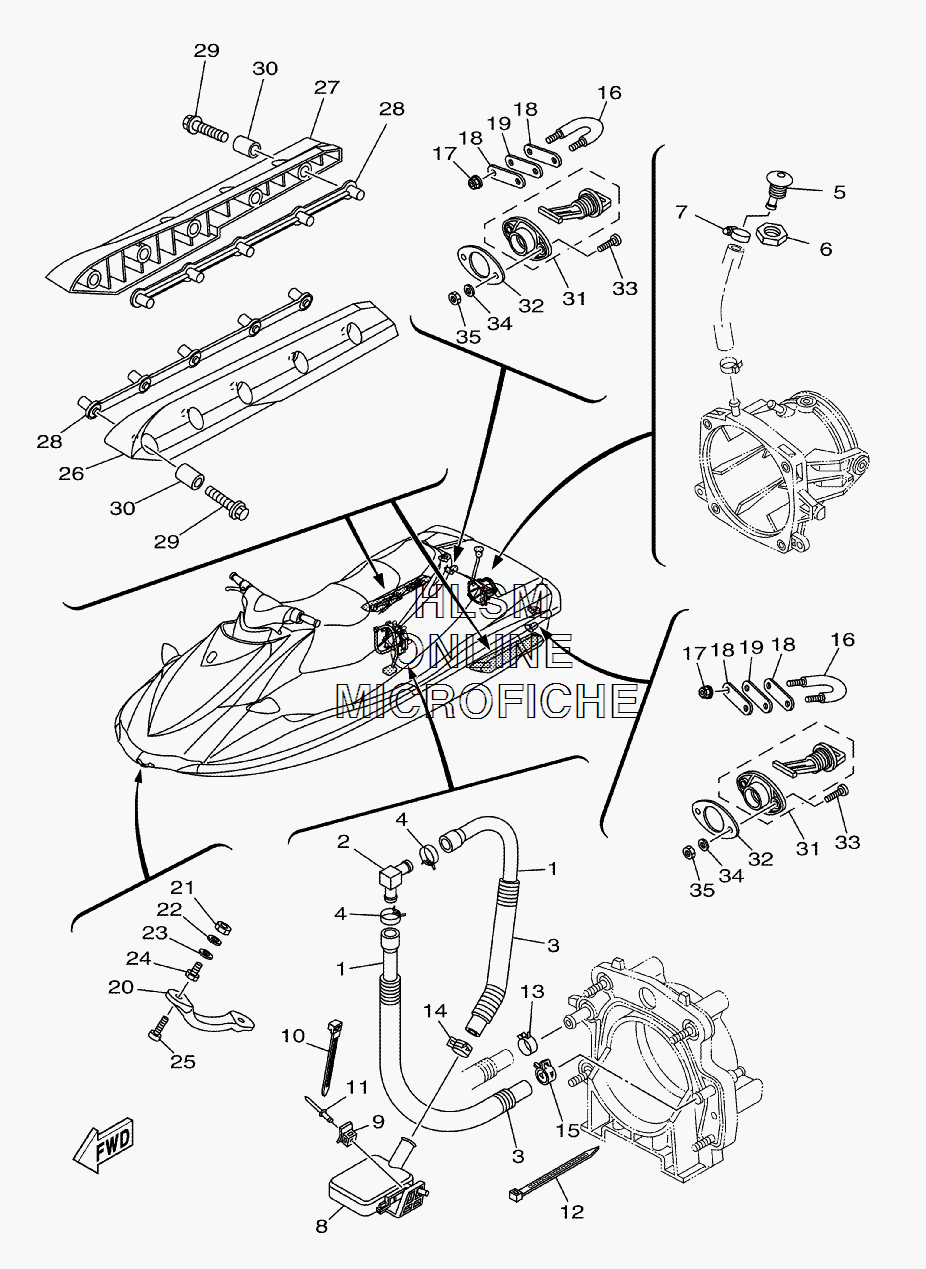

HULL FITTINGS W/ SPONSONS для Yamaha VX CRUISER 3-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
190445-20805-00 HOSE (L710)HOSE (L710)
-
261X-51162-00-00 JOINT, HOSEJOINT, HOSE
-
390446-27M55-00 TUBE (L400)TUBE (L400)
-
490467-18804-00 CLIPCLIP
-
5FN8-6269B-00-00 SPOUTSPOUT
-
6EU0-61652-00-00 NUTNUT
-
790601-118UF-00 NYLON CLIP 1NYLON CLIP 1
-
8F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
990600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1090464-32801-00 CLAMPCLAMP
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1290601-200U1-00 BAND HOSE 50BAND HOSE 50
-
1390467-21800-00 CLIP, SCISSORCLIP, SCISSOR
-
1490467-200A0-00 CLIPCLIP
-
1590467-210A0-00 CLIPCLIP
-
16F1K-61628-00-00 STERN EYESTERN EYE
-
179572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
18GP7-U4953-10-00 PLATE APLATE A
-
19F1B-U1653-01-00 PACKINGPACKING
-
20F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
2199780-12600-00 NUT. HEX. (COARSE)NUT. HEX. (COARSE)
-
2292990-12200-00 WASHER, PLAINWASHER, PLAIN
-
23F0X-61637-00-00 WASHERWASHER
-
24F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2590110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
26F1S-U883N-01-00 STABILIZER LH (BLACK)STABILIZER LH (BLACK)
-
27F1S-U883P-01-00 STABILIZER RH (BLACK)STABILIZER RH (BLACK)
-
28F1X-U883T-00-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
2990105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
30F1K-U8169-00-00 SPACERSPACER
-
31F1S-U2280-00-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
32F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
339788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
349299R-05200-00 WASHERWASHER
-
359572R-05300-00 NUT, FLANGENUT, FLANGE
