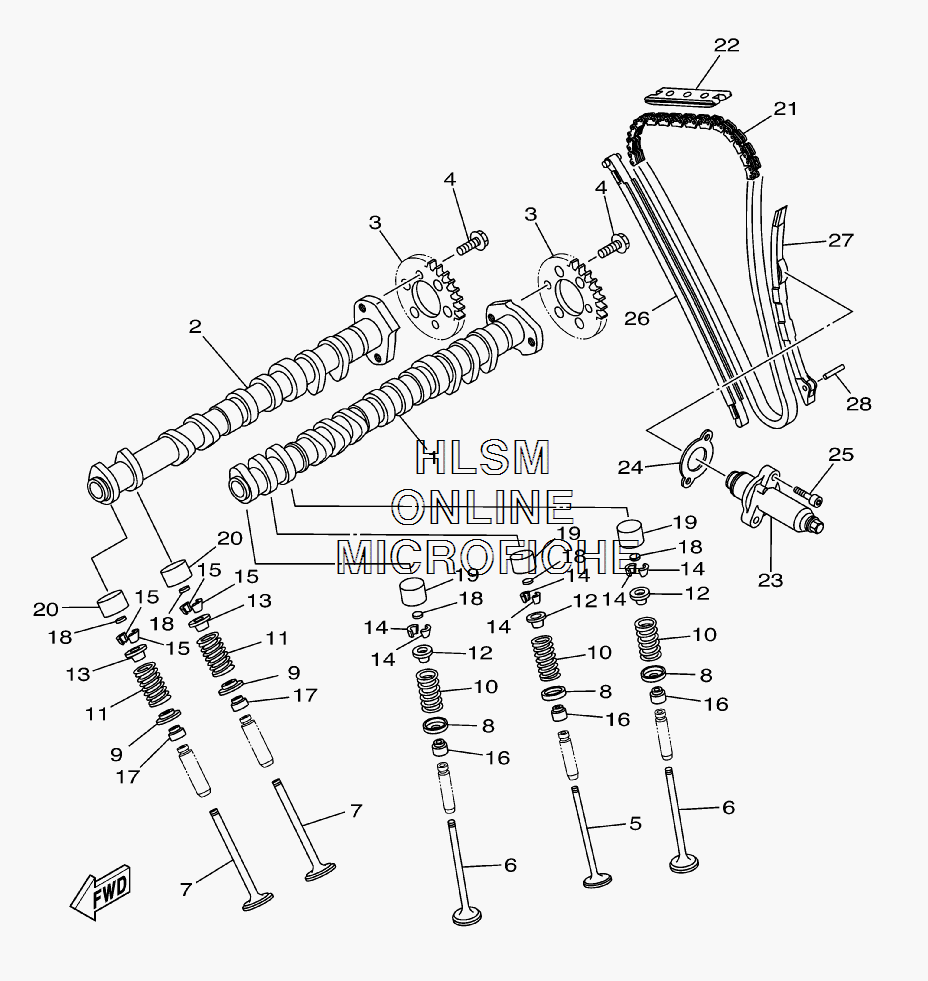

VALVE W/ CAM SHAFTS AND CHAIN для Yamaha VX 3-PASS - 2007 года выпуска`

№

Артикул

Название
1

6D3-12171-00-00 CAMSHAFT 1

CAMSHAFT 1

0 ₽
2

6D3-12181-00-00 CAMSHAFT 2

CAMSHAFT 2

35 430 ₽
3

6D3-12176-00-00 SPROCKET, CAM CHAIN

SPROCKET, CAM CHAIN

10 700 ₽
4

90105-07004-00 BOLT, FLANGE

BOLT, FLANGE

220 ₽
5

4XV-12111-00-00 VALVE, INTAKE

VALVE, INTAKE

2 200 ₽
6

4XV-12112-00-00 VALVE, INTAKE 2

VALVE, INTAKE 2

2 200 ₽
7

5LV-12121-00-00 VALVE, EXHAUST

VALVE, EXHAUST

5 660 ₽
8

1HX-12116-01-00 SEAT, VALVE SPRING

SEAT, VALVE SPRING

380 ₽
9

3GM-12126-00-00 SEAT, VALVE SPRING 2

SEAT, VALVE SPRING 2

500 ₽
10

4XV-12113-00-00 SPRING, VALVE INNER

SPRING, VALVE INNER

690 ₽
11

4XV-12114-00-00 SPRING, VALVE OUTER

SPRING, VALVE OUTER

970 ₽
12

1HX-12117-00-00 RETAINER, VALVE SPRING

RETAINER, VALVE SPRING

1 040 ₽
13

1WG-12117-00-00 RETAINER, VALVE SPRING

RETAINER, VALVE SPRING

890 ₽
14

1HX-12118-00-00 COTTER, VALVE

COTTER, VALVE

350 ₽
15

1WG-12118-00-00 COTTER, VALVE

COTTER, VALVE

290 ₽
16

4TV-12119-00-00 SEAL, VALVE STEM

SEAL, VALVE STEM

480 ₽
17

4SV-12119-00-00 SEAL, VALVE STEM

SEAL, VALVE STEM

500 ₽
18

1HX-12168-00-00 PAD, ADJUSTING 2 (1.20) (OPT)

PAD, ADJUSTING 2 (1.20) (OPT)

1 130 ₽
18

1HX-12168-20-00 PAD, ADJUSTING 2 (1.25) (OPT)

PAD, ADJUSTING 2 (1.25) (OPT)

1 130 ₽
18

1HX-12168-40-00 PAD, ADJUSTING 2 (1.30) (OPT)

PAD, ADJUSTING 2 (1.30) (OPT)

1 130 ₽
18

1HX-12168-60-00 PAD, ADJUSTING 2 (1.35) (OPT)

PAD, ADJUSTING 2 (1.35) (OPT)

1 130 ₽
18

1HX-12168-80-00 PAD, ADJUSTING 2 (1.40) (OPT)

PAD, ADJUSTING 2 (1.40) (OPT)

1 130 ₽
18

1HX-12168-A0-00 PAD, ADJUSTING 2 (1.45) (OPT)

PAD, ADJUSTING 2 (1.45) (OPT)

1 130 ₽
18

1HX-12168-F0-00 PAD, ADJUSTING 2 (1.50) (OPT)

PAD, ADJUSTING 2 (1.50) (OPT)

1 550 ₽
18

1HX-12168-H1-00 PAD, ADJUSTING 2 (1.55) (OPT)

PAD, ADJUSTING 2 (1.55) (OPT)

1 550 ₽
18

1HX-12168-K1-00 PAD, ADJUSTING 2 (1.60) (OPT)

PAD, ADJUSTING 2 (1.60) (OPT)

1 470 ₽
18

1HX-12168-M1-00 PAD, ADJUSTING 2 (1.65) (OPT)

PAD, ADJUSTING 2 (1.65) (OPT)

1 550 ₽
18

1HX-12168-R1-00 PAD, ADJUSTING 2 (1.70) (OPT)

PAD, ADJUSTING 2 (1.70) (OPT)

1 550 ₽
18

1HX-12168-U1-00 PAD, ADJUSTING 2 (1.75) (OPT)

PAD, ADJUSTING 2 (1.75) (OPT)

1 470 ₽
18

1HX-12168-W1-00 PAD, ADJUSTING 2 (1.80) (OPT)

PAD, ADJUSTING 2 (1.80) (OPT)

780 ₽
18

1HX-12168-Y1-00 PAD, ADJUSTING 2 (1.85) (OPT)

PAD, ADJUSTING 2 (1.85) (OPT)

1 470 ₽
18

1HX-12169-11-00 PAD, ADJUSTING 2 (1.90) (OPT)

PAD, ADJUSTING 2 (1.90) (OPT)

1 470 ₽
18

1HX-12169-31-00 PAD, ADJUSTING 2 (1.95) (OPT)

PAD, ADJUSTING 2 (1.95) (OPT)

1 470 ₽
18

1HX-12169-50-00 PAD, ADJUSTING 2 (2.00) (OPT)

PAD, ADJUSTING 2 (2.00) (OPT)

1 470 ₽
18

1HX-12169-70-00 PAD, ADJUSTING 2 (2.05) (OPT)

PAD, ADJUSTING 2 (2.05) (OPT)

1 550 ₽
18

1HX-12169-90-00 PAD, ADJUSTING 2 (2.10) (OPT)

PAD, ADJUSTING 2 (2.10) (OPT)

1 470 ₽
18

1HX-12169-E0-00 PAD, ADJUSTING 2 (2.15) (OPT)

PAD, ADJUSTING 2 (2.15) (OPT)

1 550 ₽
18

1HX-12169-G0-00 PAD, ADJUSTING 2 (2.20) (OPT)

PAD, ADJUSTING 2 (2.20) (OPT)

1 130 ₽
18

1HX-12169-J0-00 PAD, ADJUSTING 2 (2.25) (OPT)

PAD, ADJUSTING 2 (2.25) (OPT)

1 110 ₽
18

1HX-12169-L0-00 PAD, ADJUSTING 2 (2.30) (OPT)

PAD, ADJUSTING 2 (2.30) (OPT)

1 130 ₽
18

1HX-12169-N0-00 PAD, ADJUSTING 2 (2.35) (OPT)

PAD, ADJUSTING 2 (2.35) (OPT)

1 130 ₽
18

1HX-12169-T0-00 PAD, ADJUSTING 2 (2.40) (OPT)

PAD, ADJUSTING 2 (2.40) (OPT)

1 110 ₽
19

3LN-12153-10-00 LIFTER, VALVE (YELLOW)

LIFTER, VALVE (YELLOW)

8 340 ₽
20

3FV-12153-10-00 LIFTER, VALVE (YELLOW)

LIFTER, VALVE (YELLOW)

6 450 ₽
21

94591-49130-00 CHAIN

CHAIN

8 500 ₽
22

5BE-12241-00-00 GUIDE, STOPPER 2

GUIDE, STOPPER 2

1 520 ₽
23

6D3-12210-00-00 TENSIONER ASSY, CAM CHAIN

TENSIONER ASSY, CAM CHAIN

24 250 ₽
24

4FM-12213-00-00 GASKET, TENSIONER CASE

GASKET, TENSIONER CASE

160 ₽
25

91380-06025-00 BOLT

BOLT

150 ₽
26

6D3-12251-00-00 DAMPER, CHAIN 1

DAMPER, CHAIN 1

6 450 ₽
27

4XV-12252-00-00 DAMPER, CHAIN 2

DAMPER, CHAIN 2

10 700 ₽
28

93607-54002-00 PIN, DOWEL

PIN, DOWEL

1 510 ₽
