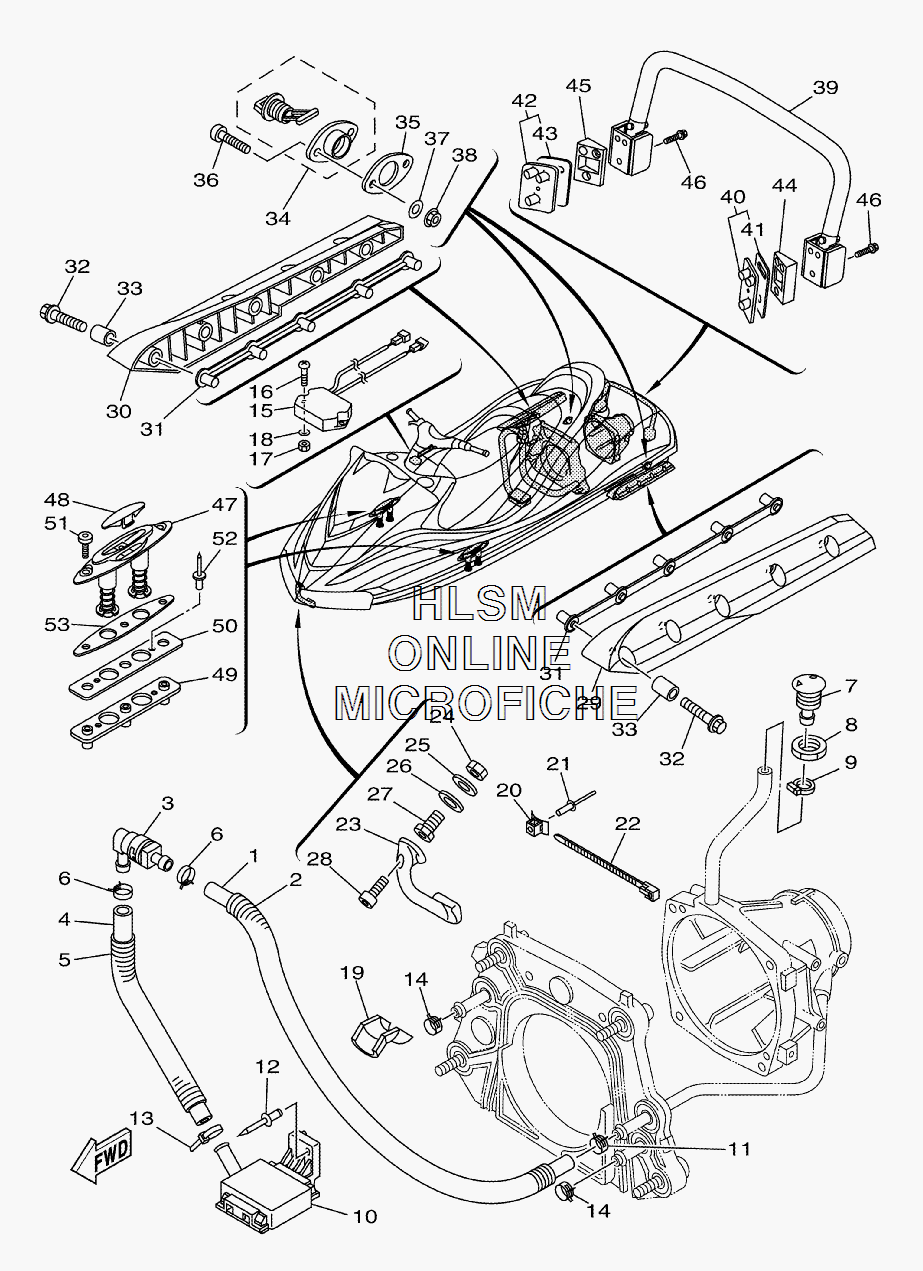

HULL FITTINGS W/ SPONSONS для Yamaha FX CRUISER HO 3-PASS - 2007 года выпуска
-
№АртикулНазвание
-
190445-20804-00 HOSE (L860)HOSE (L860)
-
290446-27M73-00 HOSE (L700)HOSE (L700)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20800-00 HOSE (L500)HOSE (L500)
-
590446-27M55-00 TUBE (L400)TUBE (L400)
-
690467-18804-00 CLIPCLIP
-
7FN8-6269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 NYLON CLIP 1NYLON CLIP 1
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190467-21800-00 CLIP, SCISSORCLIP, SCISSOR
-
1290267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1390601-200U1-00 BAND HOSE 50BAND HOSE 50
-
1490467-200A0-00 CLIPCLIP
-
15F1X-U8K22-01-00 SENSOR, COMPASSSENSOR, COMPASS
-
169788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
179572R-05300-00 NUT, FLANGENUT, FLANGE
-
189299R-05200-00 WASHERWASHER
-
19F1S-U828H-01-00 TRIM, 1TRIM, 1
-
2090600-917U4-00 CLAMP COMP.CLAMP COMP.
-
2190267-48802-00 RIVET, BLINDRIVET, BLIND
-
2290464-32801-00 CLAMPCLAMP
-
23F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
2499780-12600-00 NUT, HEX. (COARSE)NUT, HEX. (COARSE)
-
2592990-12200-00 WASHER, PLAINWASHER, PLAIN
-
26F0X-61637-00-00 WASHERWASHER
-
27F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2890110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
29F1S-U883N-01-00 STABILIZER LH (BLACK)STABILIZER LH (BLACK)
-
30F1S-U883P-01-00 STABILIZER RH (BLACK)STABILIZER RH (BLACK)
-
31F1X-U883T-00-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
3290105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
33F1K-U8169-00-00 SPACERSPACER
-
34F1S-U2280-00-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
35F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
369788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
379299R-05200-00 WASHERWASHER
-
389572R-05300-00 NUT, FLANGENUT, FLANGE
-
39F1X-U278A-10-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
40F1X-U278F-01-00 BRACKET, LADDER LHBRACKET, LADDER LH
-
41F1X-U278H-10-00 ...PACKING, BRACKET 1...PACKING, BRACKET 1
-
42F1X-U278G-01-00 BRACKET, LADDER RHBRACKET, LADDER RH
-
43F1X-U278H-10-00 ...PACKING, BRACKET 1...PACKING, BRACKET 1
-
44F1X-U278K-00-00 BRACKET 1BRACKET 1
-
45F1X-U278L-00-00 BRACKET 2BRACKET 2
-
4690119-08844-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
47F1X-U163A-01-00 CLEAT ASSY.CLEAT ASSY.
-
48F1X-U826D-00-00 COVERCOVER
-
49F1X-U826C-00-00 BRACKETBRACKET
-
50F1X-U2157-00-00 PACKINGPACKING
-
5190111-06805-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
53F1X-U2284-00-00 PACKINGPACKING
