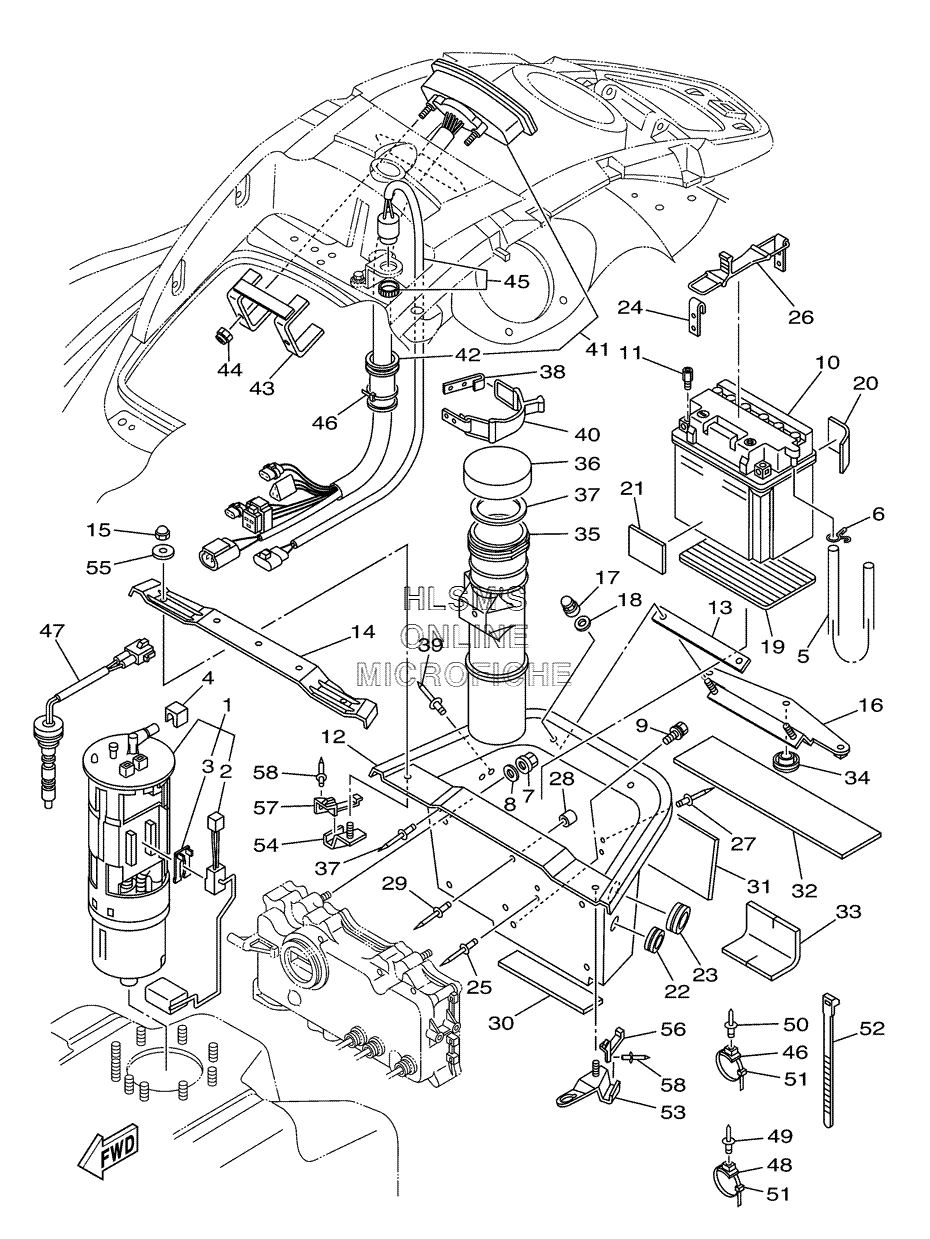

ELECTRICAL 2 для Yamaha GP1300R 2-PERSON - 2006 года выпуска`
-
№АртикулНазвание
-
160E-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
260E-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
460E-24474-00-00 COVERCOVER
-
5EU0-U7856-50-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
690467-089U1-00 CLIPCLIP
-
790179-08978-00 NUTNUT
-
89299R-08200-00 WASHERWASHER
-
990119-08826-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10EU0-82110-09-00 BATTERY ASSY (YB16CL-B)BATTERY ASSY (YB16CL-B)
-
11F0W-68239-01-00 NUTNUT
-
12F1G-U8211-01-00 CASE, BATTERYCASE, BATTERY
-
13F0X-U266D-00-00 PACKING 5PACKING 5
-
14F1G-68952-00-00 BEAM, DECK 1BEAM, DECK 1
-
1590176-06005-00 NUT, CROWNNUT, CROWN
-
16F0X-6821H-00-00 BRACKET, BASE BATTERYBRACKET, BASE BATTERY
-
1790179-08978-00 NUTNUT
-
189299R-08200-00 WASHERWASHER
-
19F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
20F0W-U822D-00-00 PAD, BATTERY 3PAD, BATTERY 3
-
21F0W-U822C-00-00 PAD, BATTERY 2PAD, BATTERY 2
-
2290480-279U1-00 GROMMETGROMMET
-
2390480-38800-00 GROMMETGROMMET
-
24GA7-65772-00-00 HOOK AHOOK A
-
2590267-489U9-00 RIVET, BLINDRIVET, BLIND
-
26GJ1-66607-00-00 HOOK COMPHOOK COMP
-
2790267-489U9-00 RIVET, BLINDRIVET, BLIND
-
28GK5-63768-00-00 CUSHION, RUBBERCUSHION, RUBBER
-
2990267-489U1-00 RIVET, BLINDRIVET, BLIND
-
30F0X-6352C-00-00 TRIM, MATTRIM, MAT
-
31GP8-67593-00-00 MATMAT
-
32F0X-6351B-00-00 MAT, LOWERMAT, LOWER
-
33GP8-6755J-00-00 MAT, WATER LOCKMAT, WATER LOCK
-
34F0X-65568-00-00 CAPCAP
-
35F0X-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
36EW2-U5912-01-00 CAP, CASECAP, CASE
-
37EW2-U5913-01-00 PACKING, CASEPACKING, CASE
-
38GA7-65772-00-00 HOOK AHOOK A
-
3990267-489U9-00 RIVET, BLINDRIVET, BLIND
-
40GJ1-66607-00-00 HOOK COMPHOOK COMP
-
41F1G-6820A-10-00 METER ASSY (BLACK)METER ASSY (BLACK)
-
42GU2-6822E-01-00 ...GROMMET...GROMMET
-
43GP7-68238-10-00 BRACKET, METERBRACKET, METER
-
449572R-05300-00 NUT, FLANGENUT, FLANGE
-
45F1S-68341-00-00 BUZZERBUZZER
-
4690464-32801-00 CLAMPCLAMP
-
47F0D-U824C-20-00 SENDER, OILSENDER, OIL
-
4890600-917U4-00 CLAMP COMP.CLAMP COMP.
-
4990267-489U6-00 RIVET, BLINDRIVET, BLIND
-
5090267-48802-00 RIVET, BLINDRIVET, BLIND
-
5190464-32801-00 CLAMPCLAMP
-
5290601-200U2-00 BANDBAND
-
53F0X-65938-01-00 STAY 1STAY 1
-
54F0X-65939-01-00 STAY 2STAY 2
-
5590201-06014-00 WASHER, PLATEWASHER, PLATE
-
56F0X-63225-00-00 PACKING, SEAL 2PACKING, SEAL 2
-
57F0X-63226-00-00 PACKING, SEALPACKING, SEAL
-
5890267-489U6-00 RIVET, BLINDRIVET, BLIND
