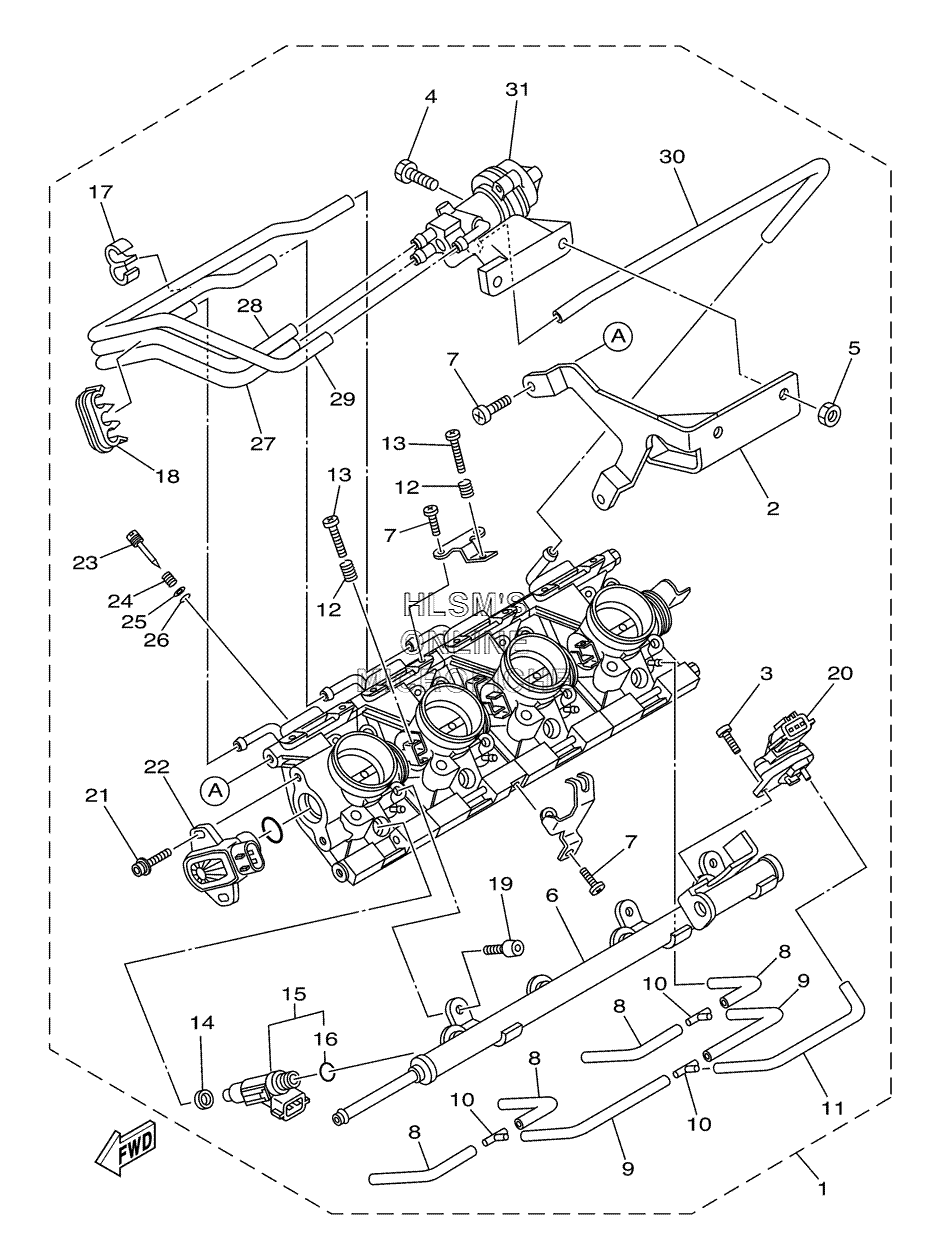

THROTTLE BODY ASSY. для Yamaha FX HO 3-PERSON - 2006 года выпуска`
-
№АртикулНазвание
-
16B6-13750-01-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26B6-14291-00-00 ...BRACKET 1...BRACKET 1
-
368V-81147-00-00 ...SCREW 3...SCREW 3
-
463P-14446-00-00 ...BOLT...BOLT
-
56B6-14358-00-00 ...NUT...NUT
-
660E-12880-11-00 ...DELIVERY PIPE...DELIVERY PIPE
-
760E-14216-00-00 ...SCREW...SCREW
-
85FL-14987-10-00 ...HOSE...HOSE
-
95FL-14349-10-00 ...PIPE...PIPE
-
104N0-14251-00-00 ...NIPPLE...NIPPLE
-
115PW-14396-00-00 ...PIPE...PIPE
-
123KW-14932-00-00 ...SPRING, THROTTLE 2...SPRING, THROTTLE 2
-
1369J-14321-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
1490430-09002-00 ...GASKET...GASKET
-
1560E-13761-10-00 ...INJECTOR ASSY...INJECTOR ASSY
-
1660E-14147-00-00 ......O-RING......O-RING
-
176B6-12486-00-00 ...CLIP...CLIP
-
186B6-12487-00-00 ...CLIP 2...CLIP 2
-
196B6-14446-00-00 ...BOLT...BOLT
-
206B6-83688-00-00 ...SENSOR ASSY...SENSOR ASSY
-
2168V-81145-01-00 ...SCREW 1...SCREW 1
-
2260E-85885-10-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
234BH-14923-00-00 ...SCREW, PILOT...SCREW, PILOT
-
244BH-14134-00-00 ...SPRING, AIR ADJUSTING...SPRING, AIR ADJUSTING
-
253L5-14962-00-00 ...WASHER...WASHER
-
263H1-14147-00-00 ...O-RING...O-RING
-
276B6-13545-00-00 ...HOSE 1...HOSE 1
-
286B6-13546-00-00 ...HOSE 2...HOSE 2
-
296B6-13547-00-00 ...HOSE 3...HOSE 3
-
306B6-13548-00-00 ...HOSE, AIR 4...HOSE, AIR 4
-
316B6-13660-00-00 ...INTAKE VALVE ASSY...INTAKE VALVE ASSY
