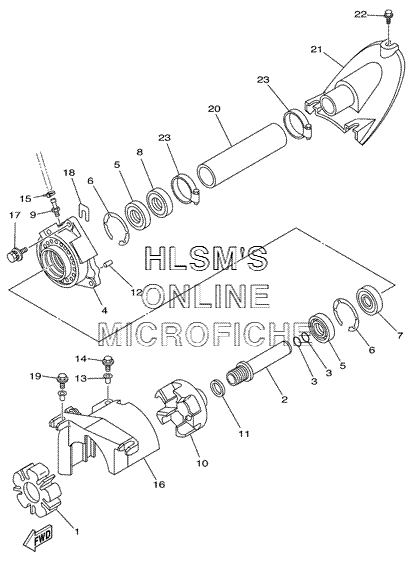

PROPULSION SYSTEM - INTERNAL для Yamaha WAVERUNNER FX HO - 2005 года выпуска`
-
№АртикулНазвание
-
166E-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
260E-51323-00-00 SHAFT, COUPLERSHAFT, COUPLER
-
393210-19001-00 O-RINGO-RING
-
461X-45332-03-94 HOUSING, BEARINGHOUSING, BEARING
-
593101-25M55-00 OIL SEALOIL SEAL
-
693430-47M04-00 CIRCLIPCIRCLIP
-
793306-205U6-00 BEARINGBEARING
-
893102-25009-00 OIL SEALOIL SEAL
-
961L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
1066E-45813-10-94 FLANGE, COUPLINGFLANGE, COUPLING
-
1190201-278T0-00 WASHER, PLATEWASHER, PLATE
-
1293606-12019-00 PIN, DOWELPIN, DOWEL
-
1390387-06M60-00 COLLARCOLLAR
-
1490119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590465-11829-00 CLAMPCLAMP
-
1660E-R1381-01-00 COVERCOVER
-
1790119-089UL-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
18GD0-U7249-00-05 SHIM (T=0.5)SHIM (T=0.5)
-
1990119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
20F0D-U883B-01-00 PIPE, 1PIPE, 1
-
21F1B-U883E-00-00 JOINT, PIPEJOINT, PIPE
-
2290149-069UA-00 SCREWSCREW
-
2390601-152U3-00 BAND, HOSE 52BAND, HOSE 52
