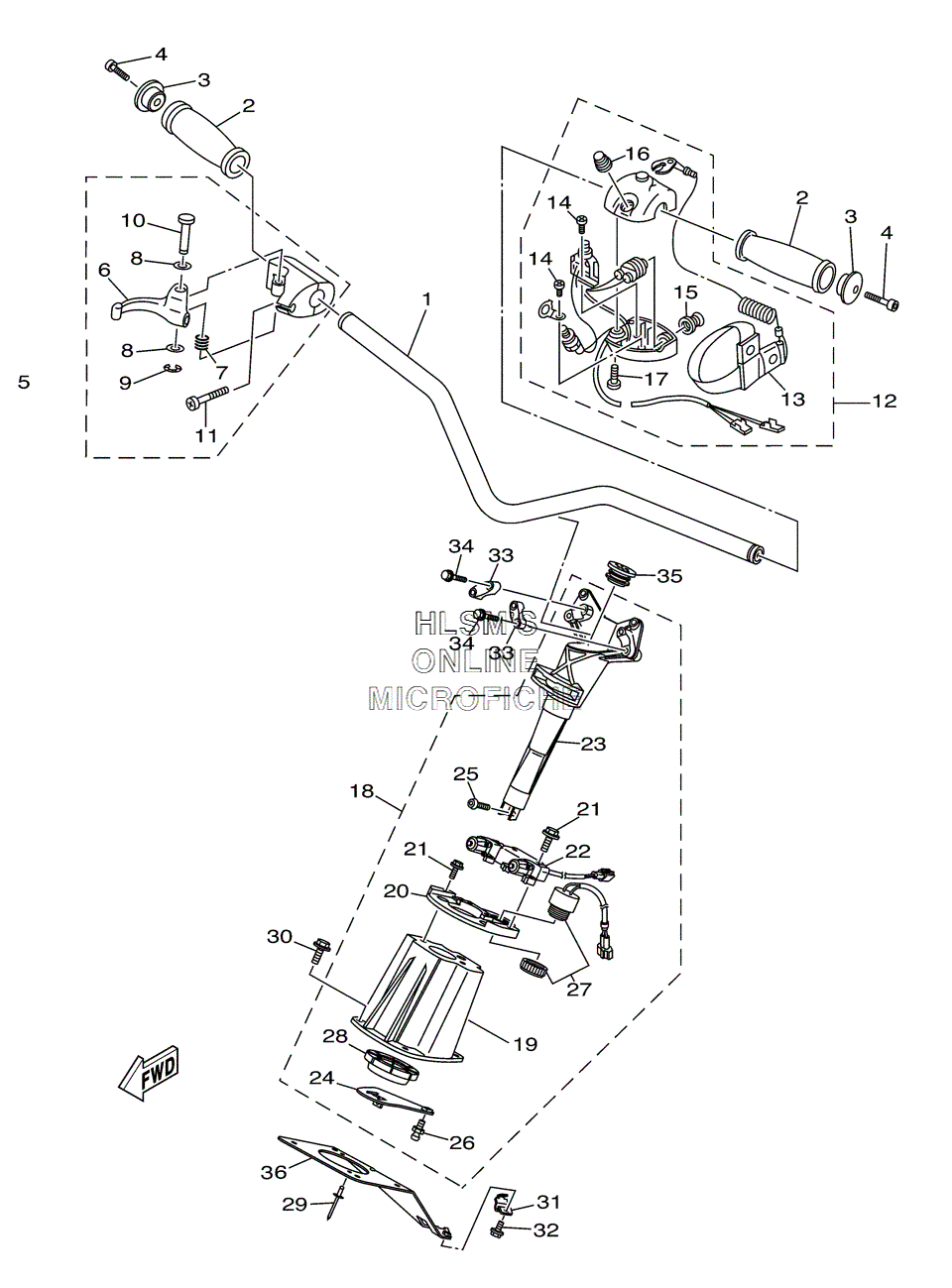

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha VX1100 SPORT - 2005 года выпуска`
-
№АртикулНазвание
-
1F1K-U1552-00-00 HANDLEHANDLE
-
2GP7-U155D-00-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-03-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
6F0D-67255-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
1198580-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
12FK7-68310-07-00 SWITCH BOX ASSY.SWITCH BOX ASSY.
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F1K-U154A-02-00 STEERING COLUMN COMP.STEERING COLUMN COMP.
-
19F1K-U152M-00-00 ...HOUSING ASSY. 1...HOUSING ASSY. 1
-
20F1K-U146H-01-00 ...SPACER, BRACKET...SPACER, BRACKET
-
2190119-08826-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
22F1B-68303-10-00 ...SENSOR ASSY....SENSOR ASSY.
-
23F1K-U1541-02-00 ...COLUMN, STEERING...COLUMN, STEERING
-
24F1K-U151B-01-00 ...ARM, STEERING...ARM, STEERING
-
2590111-08829-00 ...BOLT...BOLT
-
26GH3-U146E-00-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
27F1S-68341-00-00 ...BUZZER...BUZZER
-
28F1K-U143C-00-00 ...SEAL, RUBBER...SEAL, RUBBER
-
2990267-48806-00 RIVET, BLINDRIVET, BLIND
-
3090119-08836-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
31F1K-U1468-01-00 STOPPER, CABLESTOPPER, CABLE
-
3290119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
33EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
3490119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
35F0M-61469-00-00 PACKING, STEERING COLUMNPACKING, STEERING COLUMN
-
36F1K-U1467-00-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
