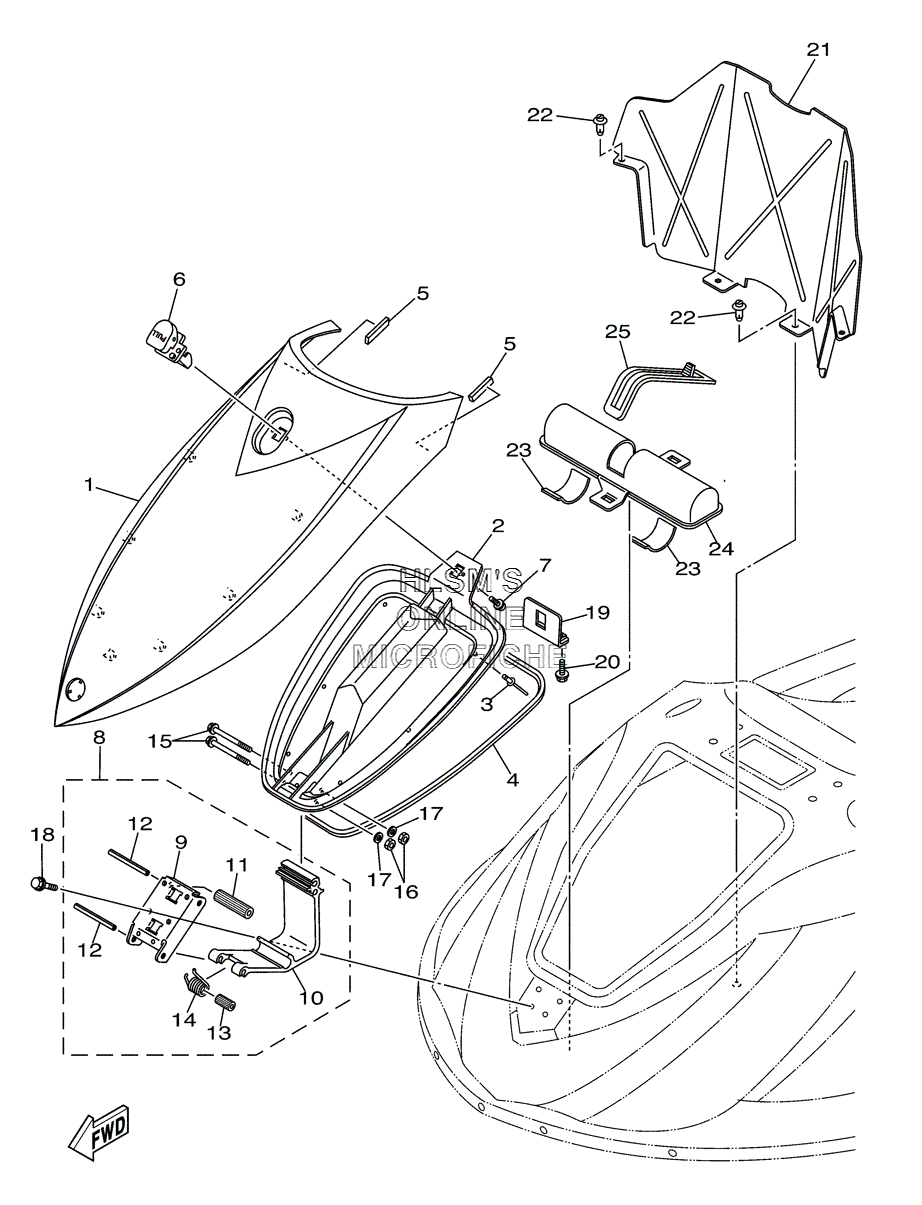

FRONT STORAGE W/ COVER для Yamaha VX1100 DELUXE - 2005 года выпуска`
-
№АртикулНазвание
-
1F1K-U517B-00-P0 LID, ENGINE ROOM (FOR RED)LID, ENGINE ROOM (FOR RED)
-
1F1K-U517B-10-P0 LID, ENGINE ROOM (FOR BLUE)LID, ENGINE ROOM (FOR BLUE)
-
2F1K-U2103-00-00 VENTILATOR COVER COMP., 2VENTILATOR COVER COMP., 2
-
390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
4F1K-U2663-00-00 PACKING 1PACKING 1
-
5F1K-U266B-00-00 PACKING 3PACKING 3
-
6F1K-6517C-00-00 LOCK, LIDLOCK, LID
-
790159-059U2-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
8F1K-U515A-00-00 HINGE ASSY..HINGE ASSY..
-
9F1K-U518E-03-00 ...PLATE, HINGE LID...PLATE, HINGE LID
-
10F1K-U517D-03-00 ...HINGE, LID...HINGE, LID
-
11F1K-U135C-00-00 ...ROLLER, DETENT...ROLLER, DETENT
-
12F1K-U517R-00-00 ...PIN, HINGE...PIN, HINGE
-
13F1K-U471E-01-00 ...SPACER 1...SPACER 1
-
14F1K-U283B-02-00 ...SPRING, TORSION...SPRING, TORSION
-
1590105-06826-00 BOLT, FLANGEBOLT, FLANGE
-
169572R-06300-00 NUT, NYLONNUT, NYLON
-
179299R-06200-00 WASHERWASHER
-
1890119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19F1K-U517F-01-00 HOOK, LID LOCKHOOK, LID LOCK
-
2090119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
21F1K-U475F-01-00 PLATE, LOCKER BOWPLATE, LOCKER BOW
-
2290269-08801-00 RIVETRIVET
-
23F1K-U759C-00-00 MAT 2MAT 2
-
24F1K-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
25F1K-U828K-00-00 BAND, 1BAND, 1
