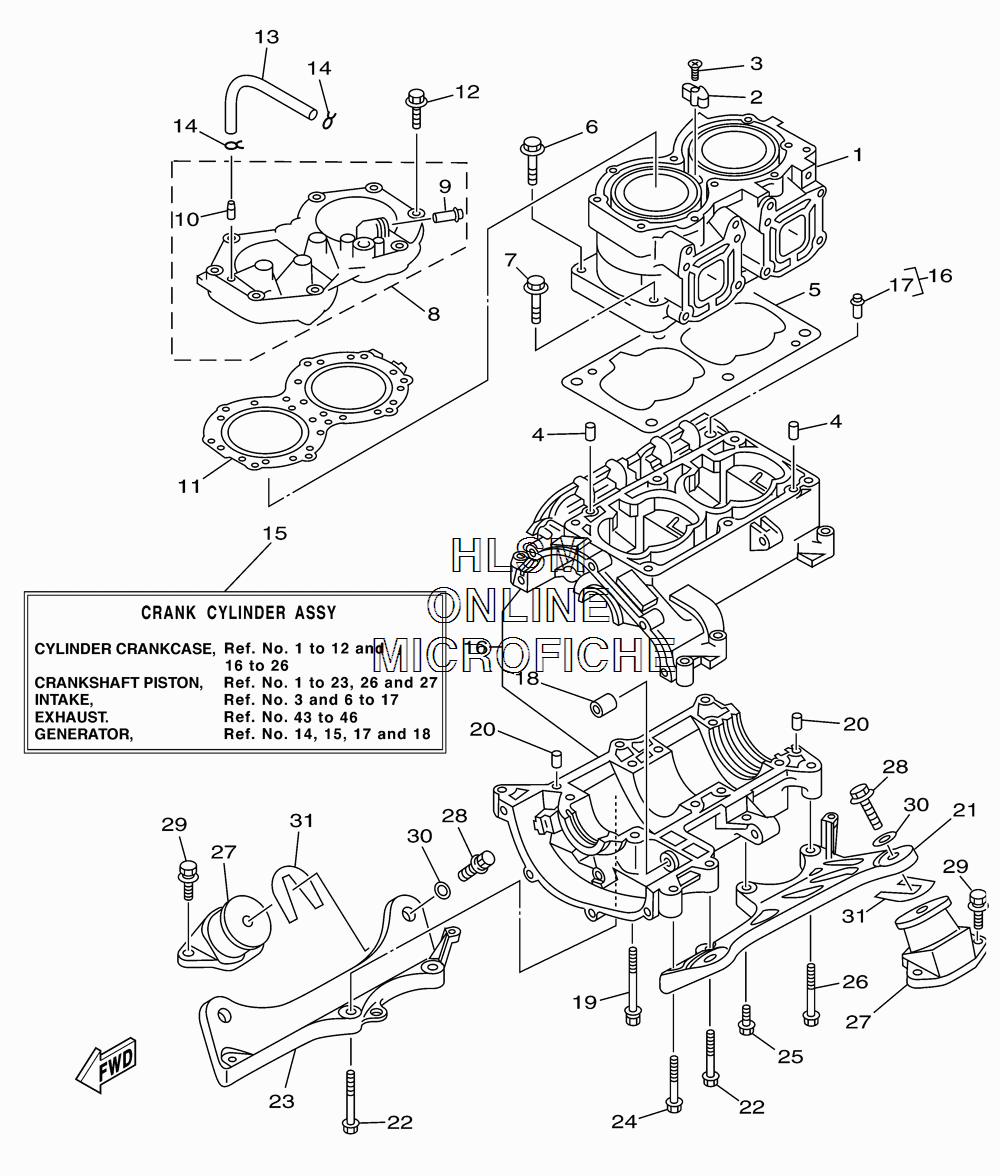

CYLINDER W/ CRANKCASE для Yamaha SUPERJET - 2005 года выпуска`
-
№АртикулНазвание
-
161X-11311-01-8S CYLINDER 1CYLINDER 1
-
26E5-11325-00-00 ANODEANODE
-
398780-04015-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
493606-12019-00 PIN, DOWELPIN, DOWEL
-
56M6-11351-A2-00 GASKET, CYLINDERGASKET, CYLINDER
-
690119-10M56-00 BOLT WITH WASHERBOLT WITH WASHER
-
790119-10M07-00 BOLT WITH WASHERBOLT WITH WASHER
-
864U-11111-00-8S HEAD, CYLINDER 1HEAD, CYLINDER 1
-
96K8-51129-00-00 ...NIPPLE...NIPPLE
-
106R7-14485-00-00 ...PIPE, JOINT...PIPE, JOINT
-
1162T-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1290119-08M96-00 BOLT WITH WASHERBOLT WITH WASHER
-
1390445-07M19-00 HOSE (L200)HOSE (L200)
-
1490467-06016-00 CLIP, SCISSORCLIP, SCISSOR
-
1564V-W0090-02-8S CRANK CYLINDER ASSYCRANK CYLINDER ASSY
-
1662T-15100-00-8S CRANKCASE ASSYCRANKCASE ASSY
-
1762T-14251-10-00 ...NIPPLE...NIPPLE
-
1890380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
1990119-08M55-00 BOLT WITH WASHERBOLT WITH WASHER
-
2093606-12019-00 PIN, DOWELPIN, DOWEL
-
216R7-21415-01-94 BRACKET, FRONT UPPER 1BRACKET, FRONT UPPER 1
-
2290119-10M02-00 BOLT WITH WASHERBOLT WITH WASHER
-
236R7-21425-01-94 BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
2490119-10M01-00 BOLT WITH WASHERBOLT WITH WASHER
-
2590119-10M00-00 BOLT WITH WASHERBOLT WITH WASHER
-
2690119-10M03-00 BOLT WITH WASHERBOLT WITH WASHER
-
276R7-44517-00-8S MOUNT RUBBERMOUNT RUBBER
-
2890119-08904-00 BOLT WITH WASHERBOLT WITH WASHER
-
2990119-08038-00 BOLT WITH WASHERBOLT WITH WASHER
-
30EU0-67324-00-00 PLATEPLATE
-
31EU0-67354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
31EU0-67354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
31EU0-67354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
31EU0-67354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
-
31EU0-67354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
