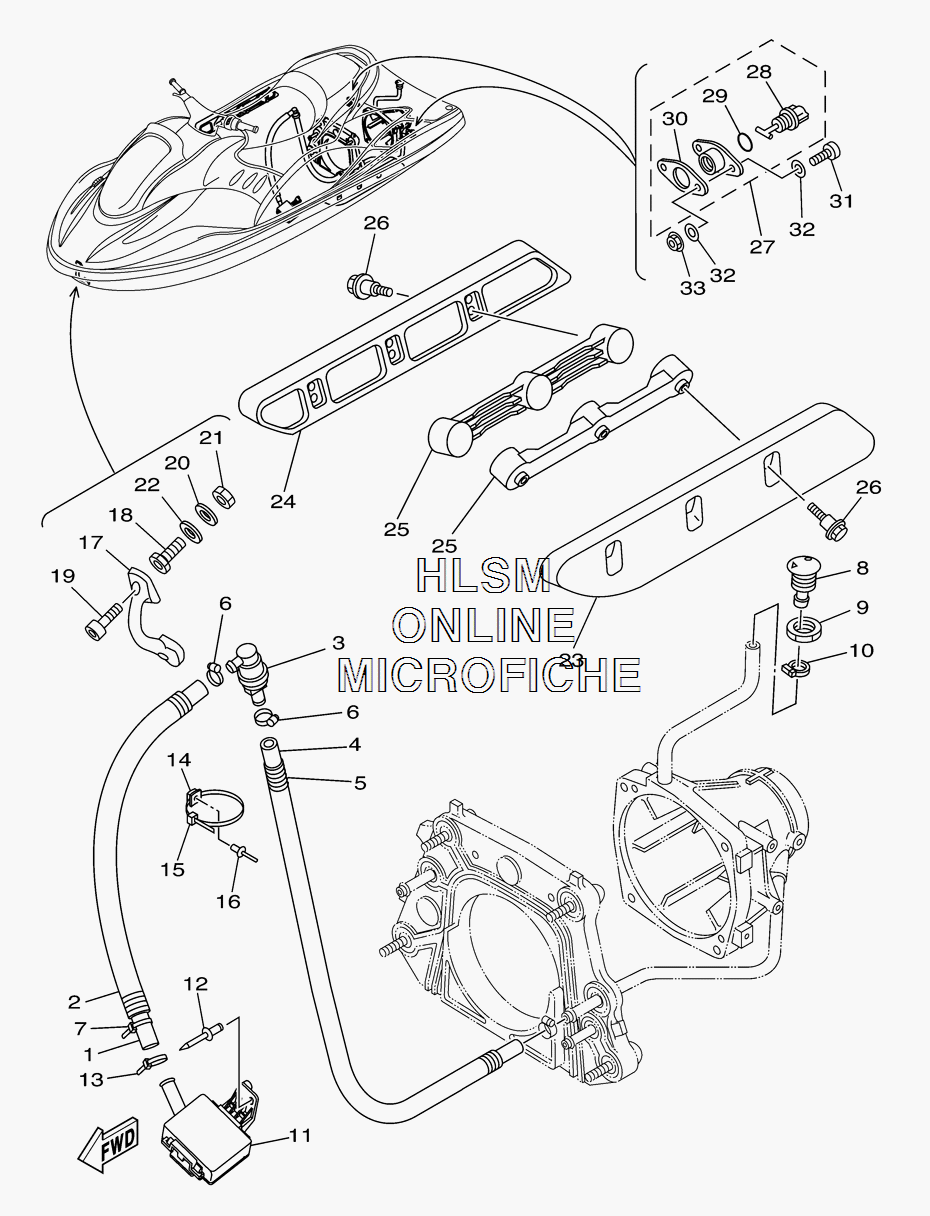

HULL FITTINGS W/ SPONSONS для Yamaha GP800R 2-PASS - 2005 года выпуска`
-
№АртикулНазвание
-
190445-198C0-00 HOSE (L1000)HOSE (L1000)
-
290446-27M95-00 HOSE (L800)HOSE (L800)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-198B9-00 HOSE (L650)HOSE (L650)
-
590446-27MF2-00 HOSE (L550)HOSE (L550)
-
690601-118UF-00 NYLON CLIPNYLON CLIP
-
790601-200U1-00 BANDBAND
-
8FN8-6269B-00-00 SPOUTSPOUT
-
9EU0-61652-00-00 NUTNUT
-
1090601-118UF-00 NYLON CLIPNYLON CLIP
-
11F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1290267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1390601-200U1-00 BANDBAND
-
1490600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1590601-200U2-00 BANDBAND
-
1690267-489U7-00 RIVET, BLINDRIVET, BLIND
-
17F0X-61624-00-00 BOWEYE 1BOWEYE 1
-
18F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
1990110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
20F0X-61637-00-00 WASHERWASHER
-
2199780-12600-00 NUT, HEXAGON (COARSE)NUT, HEXAGON (COARSE)
-
2292990-12200-00 WASHER, PLAINWASHER, PLAIN
-
23F0X-U883N-00-00 STABILIZER LHSTABILIZER LH
-
24F0X-U883P-00-00 STABILIZER RHSTABILIZER RH
-
25F1B-U883T-01-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
26F1G-U2624-10-00 BOLTBOLT
-
27EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
28EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
29EU0-62283-00-00 ...O-RING...O-RING
-
30EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
319788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
329299R-05200-00 WASHERWASHER
-
339572R-05300-00 NUT, FLANGENUT, FLANGE
