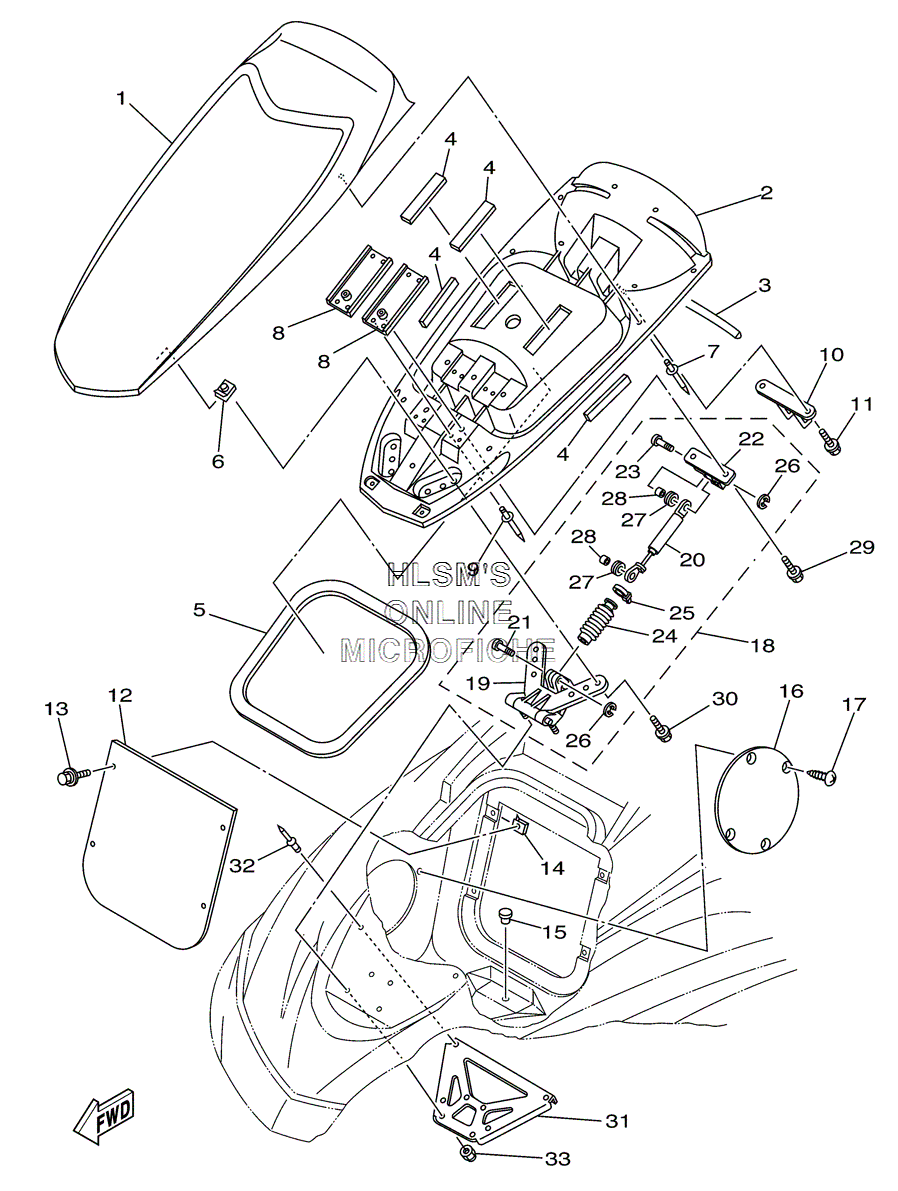

FRONT STORAGE W/ COVER для Yamaha FX1100 FX HO 3-PERSON - 2004 года выпуска`
-
№АртикулНазвание
-
1F1B-U517B-10-P1 LID, ENGINE ROOM (DPBMP - BLUE METALLIC)LID, ENGINE ROOM (DPBMP - BLUE METALLIC)
-
2F1B-U2103-01-00 VENTILATOR COVER COMP., 2VENTILATOR COVER COMP., 2
-
3F1B-U266B-00-00 PACKING 3PACKING 3
-
4F0V-U3635-00-00 TAPE, FITTINGTAPE, FITTING
-
5F1B-U2663-00-00 PACKING 1PACKING 1
-
690183-06902-00 NUT, SPRINGNUT, SPRING
-
790267-48807-00 RIVET, BLINDRIVET, BLIND
-
8F1B-65148-00-00 PLATE, HATCHPLATE, HATCH
-
990267-489U9-00 RIVET, BLINDRIVET, BLIND
-
10F0X-6517F-01-00 HOOK, LID LOCKHOOK, LID LOCK
-
1190119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
12F1B-U475F-00-00 PLATE, LOCKER BOWPLATE, LOCKER BOW
-
1390119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490183-06902-00 NUT, SPRINGNUT, SPRING
-
1590605-502U1-00 PLUG, BLINDPLUG, BLIND
-
16GP1-U7228-00-00 COVER, INSPECTION 2COVER, INSPECTION 2
-
179778R-40712-00 SCREW, TAPPINGSCREW, TAPPING
-
18F1B-6515A-00-00 HINGE ASSY.HINGE ASSY.
-
19F1B-6517D-00-00 ...HINGE, LID...HINGE, LID
-
20F1B-6515D-00-00 ...DAMPER 1...DAMPER 1
-
21F1B-6515H-00-00 ...SHAFT A...SHAFT A
-
22F1B-6514U-00-00 ...STAY, DAMPER...STAY, DAMPER
-
23F1B-6515J-00-00 ...SHAFT B...SHAFT B
-
24F1B-6518F-00-00 ...COVER , SPRING...COVER , SPRING
-
2590464-44001-00 ...CLAMP...CLAMP
-
2693430-06024-00 ...CIRCLIP...CIRCLIP
-
2790480-10006-00 ...GROMMET...GROMMET
-
2890387-07008-00 ...COLLAR...COLLAR
-
2990119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
31F1B-6518E-00-00 PLATE, HINGE LIDPLATE, HINGE LID
-
3290267-48020-00 RIVET, BLINDRIVET, BLIND
-
339572R-06300-00 NUT, NYLONNUT, NYLON
