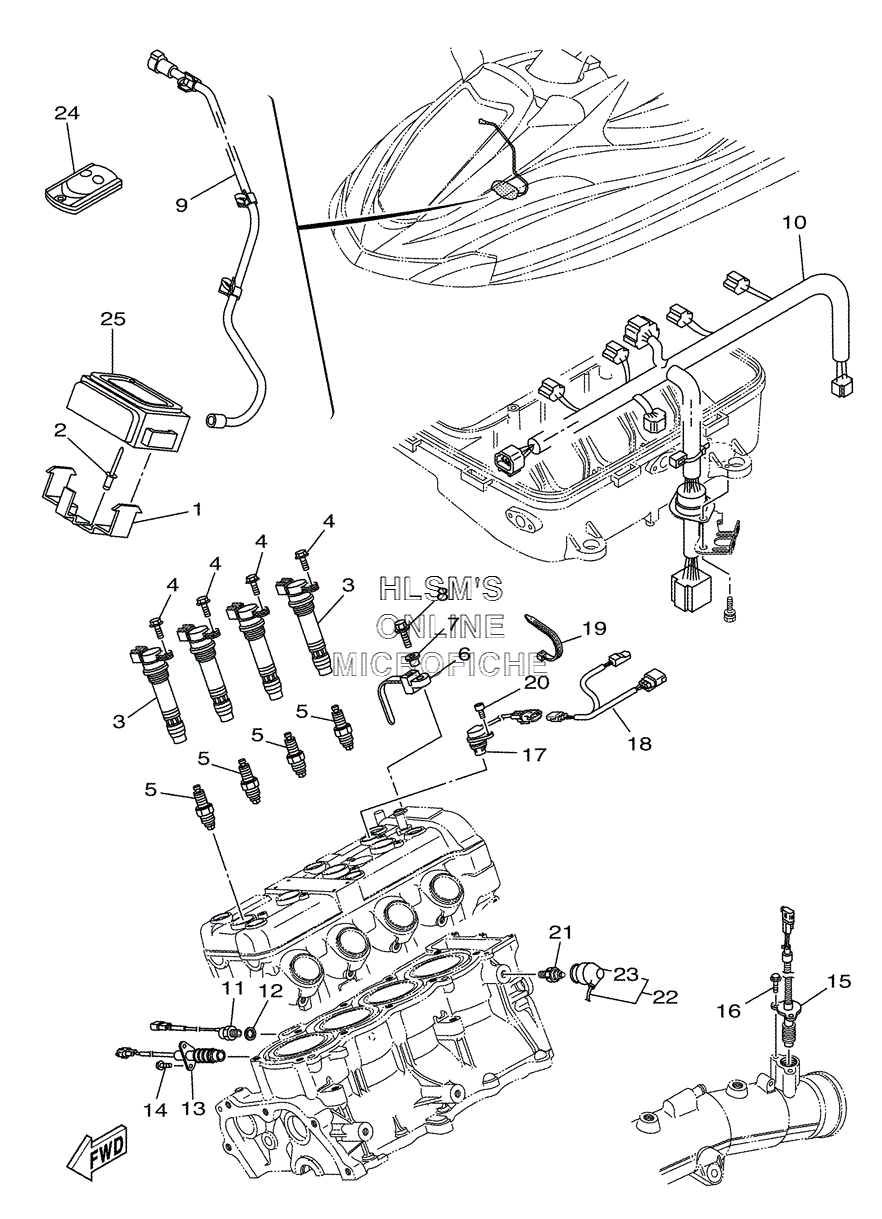

ELECTRICAL 2 для Yamaha FX1100 FX CRUISER HO 3-PERSON - 2004 года выпуска`
-
№АртикулНазвание
-
1F1S-U826C-00-00 BRACKETBRACKET
-
290267-489U9-00 RIVET, BLINDRIVET, BLIND
-
36B6-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
495814-06016-00 BOLT, FLANGEBOLT, FLANGE
-
594702-00409-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
690465-12M53-00 CLAMPCLAMP
-
790387-06M05-00 COLLARCOLLAR
-
895814-06016-00 BOLT, FLANGEBOLT, FLANGE
-
96B6-82117-00-00 WIRE, LEADWIRE, LEAD
-
106B6-8259M-00-00 WIRE HARNESS ASSY 2WIRE HARNESS ASSY 2
-
1160E-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1292990-10600-00 WASHER, PLATEWASHER, PLATE
-
1360E-82560-A0-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1497595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1560E-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1697595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1760E-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
1860E-81325-10-00 CONDENSER 1CONDENSER 1
-
1990465-13M11-00 CLAMPCLAMP
-
2091380-06016-00 BOLTBOLT
-
2168V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
2260E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
2360E-82532-00-00 ...CAP...CAP
-
246B6-86261-00-00 TRANSMITTER COMPTRANSMITTER COMP
-
256B6-86265-00-00 RECIVER COMPRECIVER COMP
