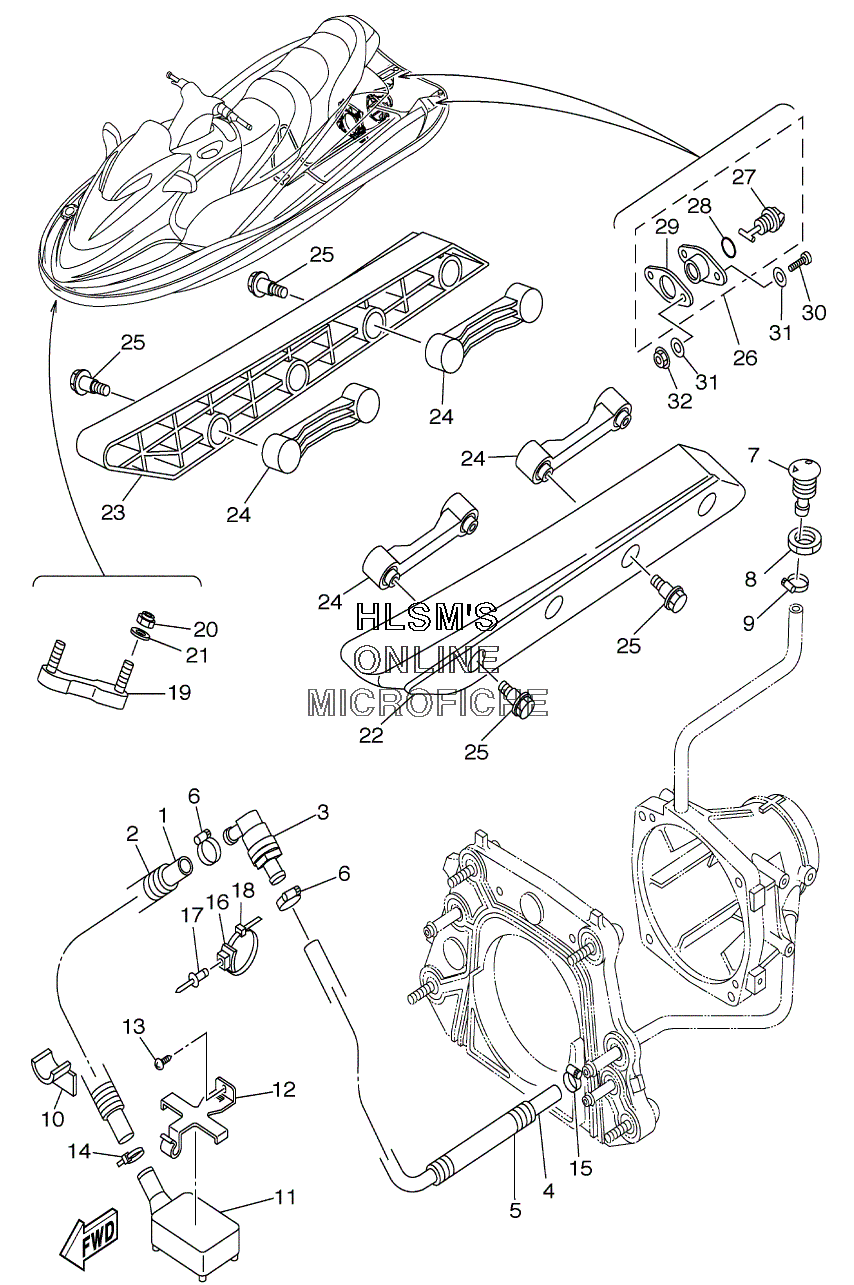

HULL FITTINGS W/ SPONSONS для Yamaha XLT 800 A - 2002 года выпуска
-
№АртикулНазвание
-
190445-198C0-00 HOSE (L1000)HOSE (L1000)
-
290446-27M73-00 HOSEHOSE
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-198B9-00 HOSE (L650)HOSE (L650)
-
590446-27M55-00 TUBE (L400)TUBE (L400)
-
690601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
7FN8-6269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10GJ1-U7578-21-00 PACKING, HOSE 2PACKING, HOSE 2
-
11GD0-U761D-00-00 STRAINER, BILGESTRAINER, BILGE
-
12EW2-67618-00-00 BASE, STRAINER BLIGEBASE, STRAINER BLIGE
-
139778R-50112-00 SCREW, TAPPINGSCREW, TAPPING
-
1490465-11829-00 CLAMPCLAMP
-
1590601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
1690600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1790267-48802-00 RIVET, BLINDRIVET, BLIND
-
1890464-32801-00 CLAMPCLAMP
-
19F0D-61624-01-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
209572R-08300-00 NUT, FLANGENUT, FLANGE
-
219299R-08200-00 WASHERWASHER
-
22F0D-U883N-20-00 STABILIZER (LEFT HAND) (YAMAHA (YB))STABILIZER (LEFT HAND) (YAMAHA (YB))
-
23F0D-U883P-20-00 STABILIZER (RIGHT HAND) (YAMAHA (YB))STABILIZER (RIGHT HAND) (YAMAHA (YB))
-
24F1F-U883T-00-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
25F0V-U2624-00-00 BOLTBOLT
-
26EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
27EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
28EU0-62283-00-00 ...O-RING...O-RING
-
29EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
309788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
319299R-05200-00 WASHERWASHER
-
329572R-05300-00 NUT, FLANGENUT, FLANGE
