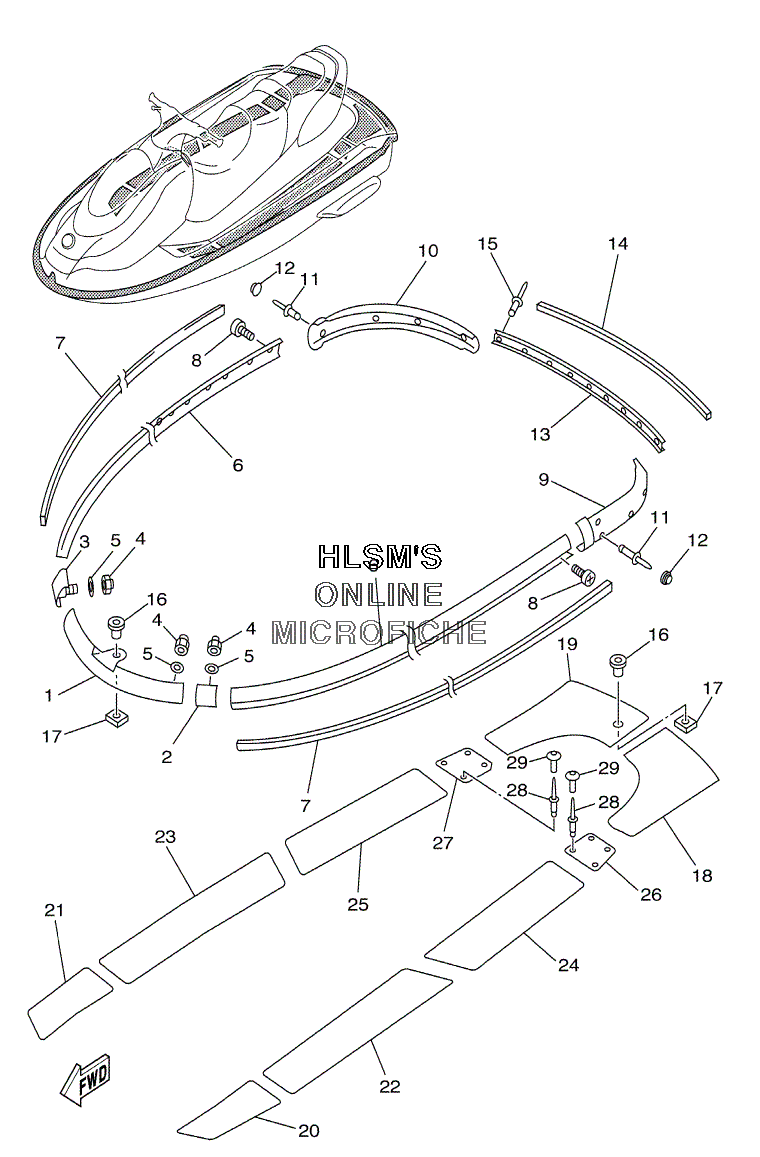

BUMBER W/ GUNWALE MAT для Yamaha XL 700 A - 2002 года выпуска
-
№АртикулНазвание
-
1GJ3-U2501-20-00 BOW GUNWALE COMP (YAMAHA BLACK)BOW GUNWALE COMP (YAMAHA BLACK)
-
2GU2-6252E-10-00 JOINT, GUNWALE (LEFT HAND) (YAMAHA BLACK)JOINT, GUNWALE (LEFT HAND) (YAMAHA BLACK)
-
3GU2-6252F-10-00 JOINT, GUNWALE (RIGHT HAND) (YAMAHA BLACK)JOINT, GUNWALE (RIGHT HAND) (YAMAHA BLACK)
-
49572R-06300-00 NUT, FLANGENUT, FLANGE
-
59299R-06200-00 WASHERWASHER
-
6GH3-U2512-20-00 GUNWALE, SIDE (YAMAHA BLACK)GUNWALE, SIDE (YAMAHA BLACK)
-
7GJ3-U2519-60-00 INNER, GUNWALE (YAMAHA BLACK)INNER, GUNWALE (YAMAHA BLACK)
-
890169-059U1-00 SCREW, TAPPINGSCREW, TAPPING
-
9GJ3-U251D-21-00 GUNWALE, STERN 1 (YAMAHA BLACK)GUNWALE, STERN 1 (YAMAHA BLACK)
-
10GJ3-U251E-21-00 GUNWALE, STERN 2 (YAMAHA BLACK)GUNWALE, STERN 2 (YAMAHA BLACK)
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
12GJ3-U354D-30-00 CAP, HEAD (YAMAHA BLACK)CAP, HEAD (YAMAHA BLACK)
-
13GJ3-U252C-20-00 COVER, GUNWALE 1 (YAMAHA BLACK)COVER, GUNWALE 1 (YAMAHA BLACK)
-
14GJ3-U252D-40-00 COVER, GUNWALE 2 (YAMAHA BLACK)COVER, GUNWALE 2 (YAMAHA BLACK)
-
1590267-489U8-00 RIVET, BLINDRIVET, BLIND
-
16FN8-61651-01-00 ROPE HOLEROPE HOLE
-
17EU0-61652-00-00 NUTNUT
-
18GU2-U358F-02-00 MAT, UPPER LHMAT, UPPER LH
-
19GU2-U358G-03-00 MAT, UPPER RHMAT, UPPER RH
-
20GU2-U351H-10-00 MAT, STEP 1 (BLACK)MAT, STEP 1 (BLACK)
-
21GU2-U351J-10-00 MAT, STEP 2 (BLACK)MAT, STEP 2 (BLACK)
-
22GU2-U351N-10-00 MAT, STEP 5 (BLACK)MAT, STEP 5 (BLACK)
-
23GU2-U351P-10-00 MAT, STEP 6 (BLACK)MAT, STEP 6 (BLACK)
-
24GU2-U351R-03-00 MAT, STEP 7 (BLACK)MAT, STEP 7 (BLACK)
-
25GU2-U351S-10-00 MAT, STEP 8 (BLACK)MAT, STEP 8 (BLACK)
-
26GH3-U351M-50-00 MAT, STEP 4 (YAMAHA BLACK)MAT, STEP 4 (YAMAHA BLACK)
-
27GH3-U351M-60-00 MAT, STEP 4 (YAMAHA BLACK)MAT, STEP 4 (YAMAHA BLACK)
-
2890267-48802-00 RIVET, BLINDRIVET, BLIND
-
29GJ3-U352E-50-00 MAT, BOW (YAMAHA BLACK)MAT, BOW (YAMAHA BLACK)
