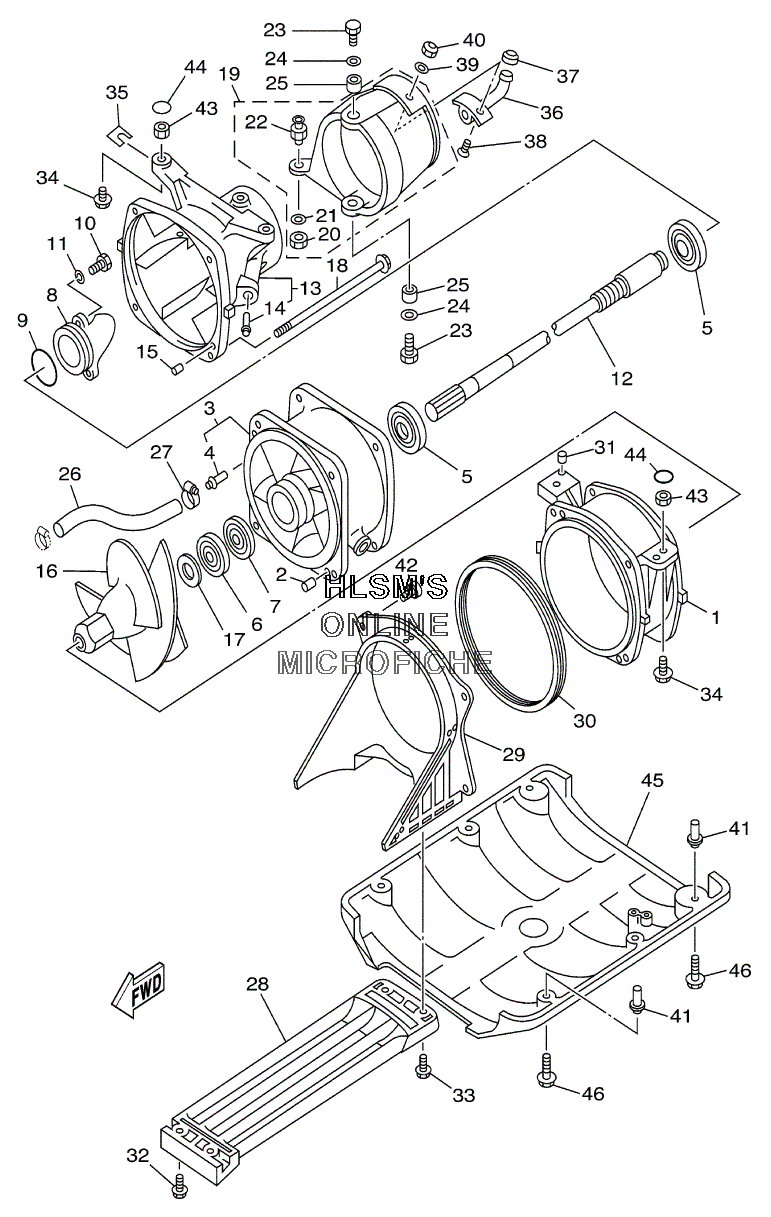

PROPULSION SYSTEM - EXTERNAL для Yamaha SJ 700 A - 2002 года выпуска`
-
№АртикулНазвание
-
16R7-51312-03-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
293606-12019-00 PIN, DOWELPIN, DOWEL
-
362T-51315-01-94 DUCT, IMPELLERDUCT, IMPELLER
-
46K8-51129-00-00 ...NIPPLE...NIPPLE
-
593306-205U0-00 BEARINGBEARING
-
693102-25M34-00 ...OIL SEAL...OIL SEAL
-
793101-25M50-00 ...OIL SEAL...OIL SEAL
-
862T-51326-00-00 CAPCAP
-
993210-46M16-00 ...O-RING...O-RING
-
1097095-06020-00 BOLTBOLT
-
1192995-06600-00 WASHERWASHER
-
126R7-45511-01-00 SHAFT, DRIVESHAFT, DRIVE
-
136R7-51318-05-94 NOZZLENOZZLE
-
146K8-51129-00-00 ...NIPPLE...NIPPLE
-
1593606-12019-00 PIN, DOWELPIN, DOWEL
-
166R7-51321-00-94 IMPELLERIMPELLER
-
1762T-51348-00-00 SPACERSPACER
-
1890119-06M70-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1961L-51313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
2095380-06700-00 ...NUT...NUT
-
2190201-06M02-00 ...WASHER, PLATE...WASHER, PLATE
-
226R7-42316-00-00 ...BOLT, JOINT...BOLT, JOINT
-
2397095-08018-00 BOLTBOLT
-
2492995-08600-00 WASHERWASHER
-
2590387-08M06-00 COLLARCOLLAR
-
2690445-14M12-00 HOSE (L110)HOSE (L110)
-
2790450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
286R7-51333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
296R7-51311-00-00 DUCT, INTAKEDUCT, INTAKE
-
306R7-51117-01-00 ...PACKING...PACKING
-
3193606-07M17-00 PIN, DOWELPIN, DOWEL
-
3290119-06915-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390119-06908-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3490119-10948-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
35EW2-67354-00-01 SHIM (THICKNESS=0.1)(OPT)SHIM (THICKNESS=0.1)(OPT)
-
35EW2-67354-00-03 SHIM (THICKNESS=0.3)(OPT)SHIM (THICKNESS=0.3)(OPT)
-
35EW2-67354-00-05 SHIM (THICKNESS=0.5)(OPT)SHIM (THICKNESS=0.5)(OPT)
-
35EW2-67354-00-10 SHIM (THICKNESS=1.0)(OPT)SHIM (THICKNESS=1.0)(OPT)
-
36EU0-62693-02-00 SPOUTSPOUT
-
37EU0-62695-00-00 CAP, SPOUTCAP, SPOUT
-
3898780-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
3992990-05200-00 WASHER, PLAINWASHER, PLAIN
-
4095720-05300-00 NUT, FLANGENUT, FLANGE
-
4190179-08962-00 NUTNUT
-
4297780-60120-00 SCREW, TAPPINGSCREW, TAPPING
-
4390179-10925-00 NUTNUT
-
44EW2-62723-30-00 SEALSEAL
-
45EW2-62731-01-00 PLATE 2PLATE 2
-
4690119-08943-00 BOLT, WITH WASHERBOLT, WITH WASHER
