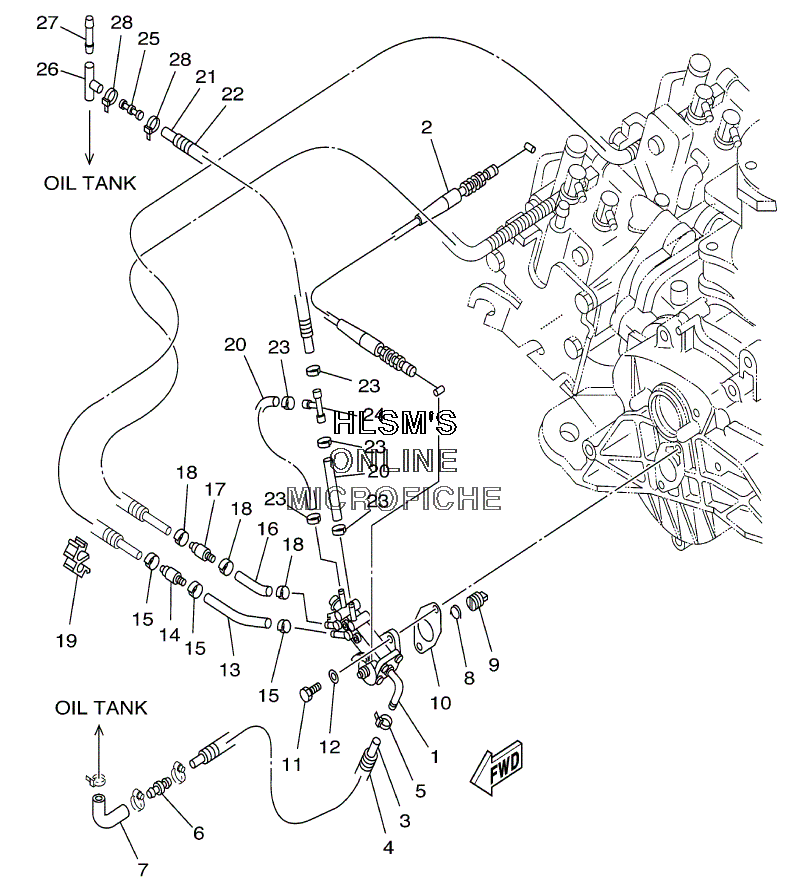

OIL PUMP для Yamaha GP 800 A - 2002 года выпуска`
-
№АртикулНазвание
-
166E-13200-02-00 OIL INJECTION PUMP ASSYOIL INJECTION PUMP ASSY
-
266E-26320-00-00 PUMP CABLE ASSYPUMP CABLE ASSY
-
390445-11M35-00 HOSE (L540)HOSE (L540)
-
490446-17M72-00 HOSEHOSE
-
590465-11M10-00 CLAMPCLAMP
-
666V-51142-00-00 CONNECTIONCONNECTION
-
790445-14M00-00 HOSE (L118)HOSE (L118)
-
866E-13469-00-00 SPRINGSPRING
-
965U-13132-00-00 JOINTJOINT
-
1063M-13116-00-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
1197095-06020-00 BOLTBOLT
-
1292995-06600-00 WASHERWASHER
-
1390445-07009-00 HOSEHOSE
-
1467X-13183-00-00 VALVE, CHECKVALVE, CHECK
-
1590468-02001-00 CLIPCLIP
-
1690445-07009-00 HOSEHOSE
-
1767X-13183-00-00 VALVE, CHECKVALVE, CHECK
-
1890468-02001-00 CLIPCLIP
-
1990464-07M20-00 CLAMPCLAMP
-
2090445-07M25-00 HOSE (L53)HOSE (L53)
-
2190445-07006-00 HOSEHOSE
-
2290447-07002-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
2390468-02001-00 CLIPCLIP
-
246E0-24378-00-00 PIPE, JOINT 4PIPE, JOINT 4
-
2563M-13132-00-00 JOINTJOINT
-
2663M-24378-00-00 PIPE, JOINT 4PIPE, JOINT 4
-
276G8-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
2890465-11829-00 CLAMPCLAMP
