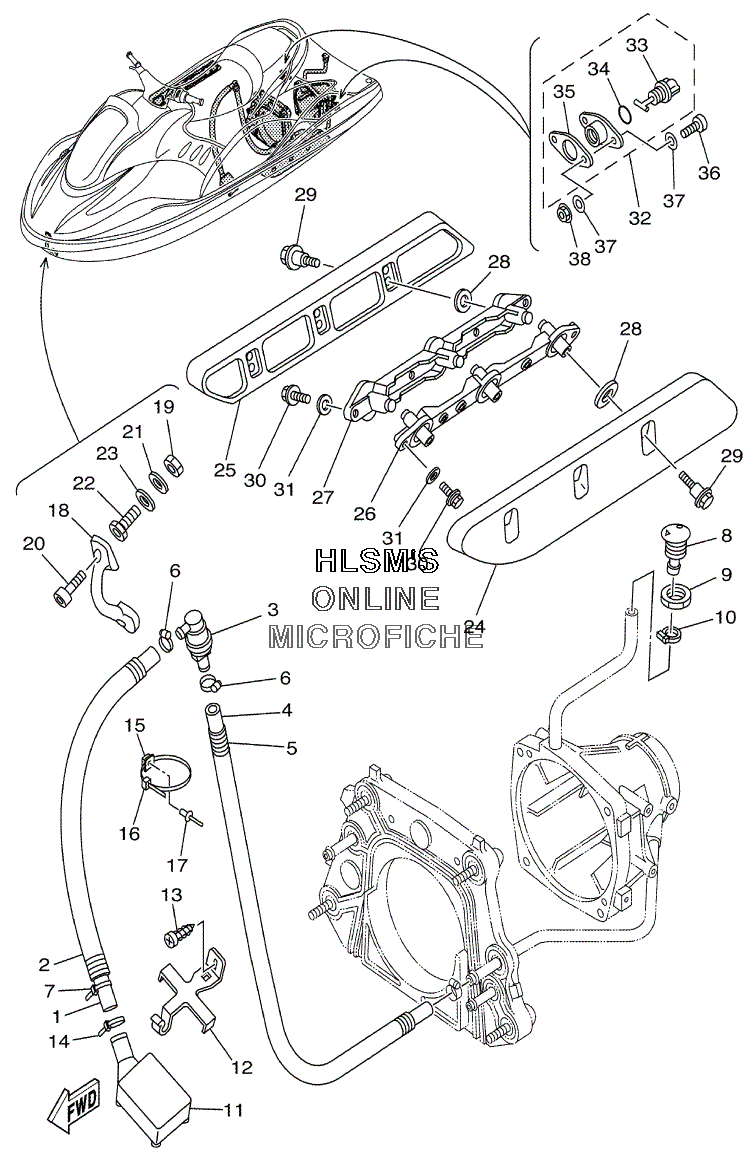

HULL FITTINGS W/ SPONSONS для Yamaha GP 800 A - 2002 года выпуска`
-
№АртикулНазвание
-
190445-198C0-00 HOSE (L1000)HOSE (L1000)
-
290446-27M95-00 HOSEHOSE
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-198B9-00 HOSE (L650)HOSE (L650)
-
590446-27MF2-00 HOSEHOSE
-
690601-118UF-00 BAND, HOSE 8BAND, HOSE 8
-
790601-200U1-00 BANDBAND
-
8FN8-6269B-00-00 SPOUTSPOUT
-
9EU0-61652-00-00 NUTNUT
-
1090601-118UF-00 BAND, HOSE 8BAND, HOSE 8
-
11GD0-U761D-00-00 STRAINER, BILGESTRAINER, BILGE
-
12EW2-67618-00-00 BASE, STRAINER BILGEBASE, STRAINER BILGE
-
139778R-50112-00 SCREW, TAPPINGSCREW, TAPPING
-
1490601-200U1-00 BANDBAND
-
1590600-917U4-00 CLAMP COMPCLAMP COMP
-
1690601-200U2-00 BANDBAND
-
1790267-489U7-00 RIVET, BLINDRIVET, BLIND
-
18F0X-61624-00-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
19F0X-61652-00-00 NUTNUT
-
2090110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
21F0X-61637-00-00 WASHERWASHER
-
2299780-12600-00 NUTHEX(COARS)NUTHEX(COARS)
-
2392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
24F0X-U883N-00-00 STABILIZER LH (BLACK)STABILIZER LH (BLACK)
-
25F0X-U883P-00-00 STABILIZER RH (BLACK)STABILIZER RH (BLACK)
-
26F0X-6883T-00-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
27F0X-6883V-00-00 BRACKET, STABILIZER 2BRACKET, STABILIZER 2
-
28F0X-6883U-01-00 PACKING, STABILIZERPACKING, STABILIZER
-
29F0X-62624-00-00 BOLTBOLT
-
3090119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190202-05001-00 WASHER, PLATEWASHER, PLATE
-
32EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
33EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
34EU0-62283-00-00 ...O-RING...O-RING
-
35EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
369788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
379299R-05200-00 WASHERWASHER
-
389572R-05300-00 NUT, FLANGENUT, FLANGE
