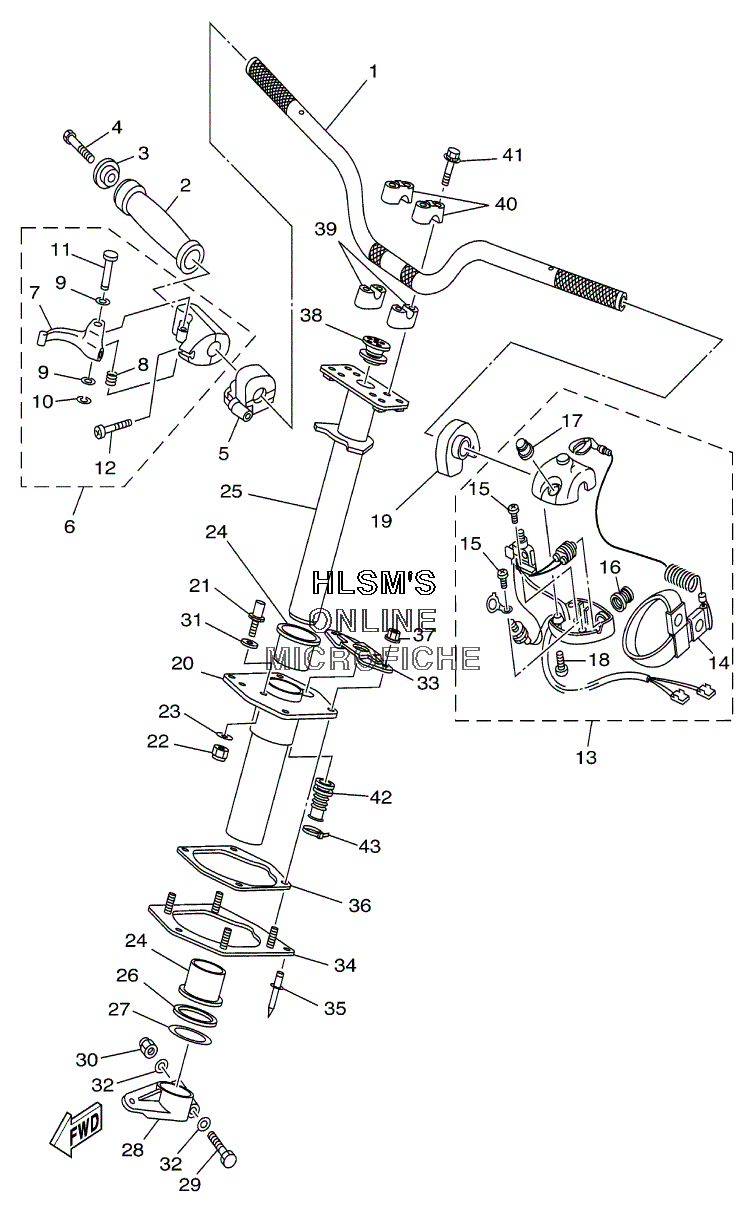

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha GP 800 A - 2002 года выпуска`
-
№АртикулНазвание
-
1F0X-61552-00-00 HANDLEHANDLE
-
2GP7-U155D-00-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0X-6724A-00-00 CHOKE LEVER ASSYCHOKE LEVER ASSY
-
6F0D-67250-03-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
7F0D-67255-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
8EW2-67256-00-00 ...SPRING...SPRING
-
9EW2-67258-01-00 ...WASHER...WASHER
-
10EW2-67259-01-00 ...CLIP...CLIP
-
11F0D-67257-00-00 ...SHAFT...SHAFT
-
1298500-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
13FK7-68310-07-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
14EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1597880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
16FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
17FK7-68313-02-00 ...START BUTTON COMP...START BUTTON COMP
-
1897880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
19F0X-6143G-00-00 SPACERSPACER
-
20F0X-6152M-00-00 HOUSING ASSYHOUSING ASSY
-
21FN8-6131B-00-00 PIN, STOPPERPIN, STOPPER
-
2295720-10300-00 NUTNUT
-
2392990-10600-00 WASHER, PLATEWASHER, PLATE
-
24F0X-6141B-00-00 BEARING, COLUMNBEARING, COLUMN
-
25F0X-61541-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
26F0X-6153P-00-00 WASHERWASHER
-
27F0X-6153P-10-00 WASHERWASHER
-
28F0X-6151B-00-00 ARM, STEERINGARM, STEERING
-
2990101-08003-00 BOLTBOLT
-
3090185-08002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190201-10017-00 WASHER, PLATEWASHER, PLATE
-
3292990-08600-00 WASHER, PLATEWASHER, PLATE
-
33F0X-61596-00-00 PLATEPLATE
-
34F0X-6133B-00-00 PLATE, BRACKETPLATE, BRACKET
-
3590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
36F0X-6143C-00-00 SEAL, RUBBERSEAL, RUBBER
-
379572R-08300-00 NUT, FLANGENUT, FLANGE
-
38F0X-61469-00-00 PACKING, STEERING COLUMNPACKING, STEERING COLUMN
-
39EU0-23814-01-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
40EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4190119-089UM-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
42F0D-6822E-00-00 GROMMETGROMMET
-
4390464-32801-00 CLAMPCLAMP
