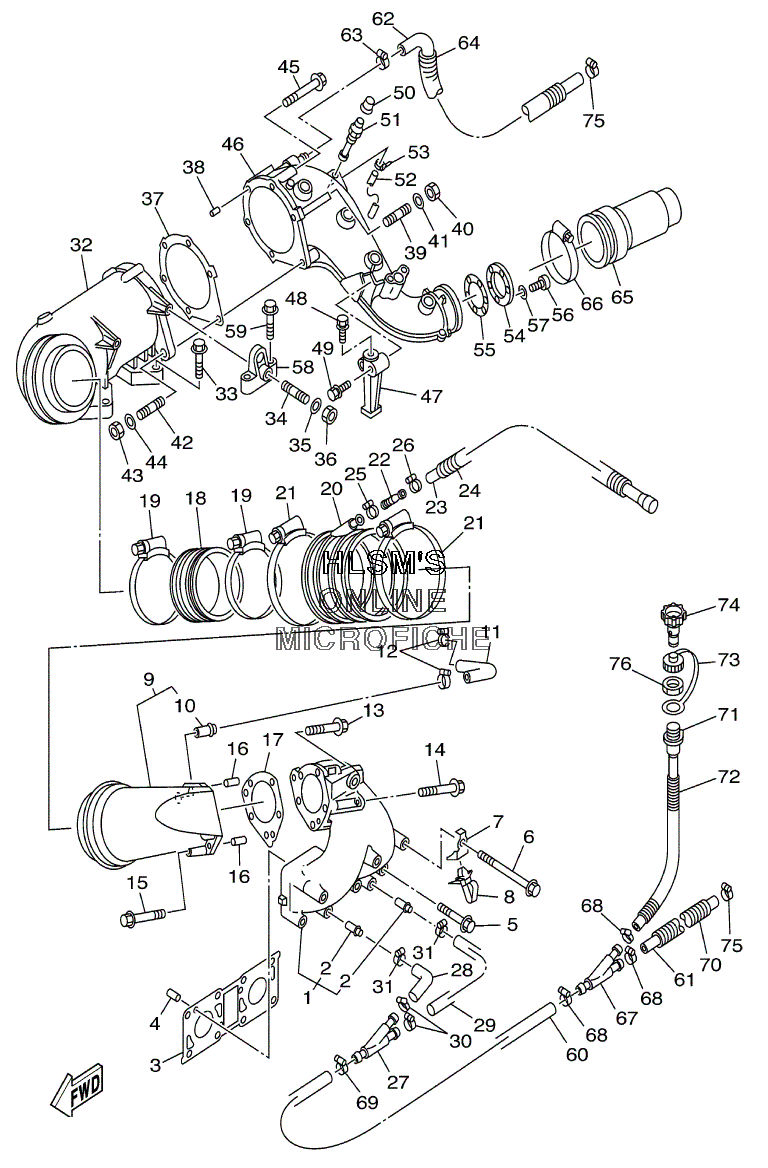

EXHAUST SYSTEM для Yamaha GP 800 A - 2002 года выпуска`
-
№АртикулНазвание
-
166E-14711-10-8P MUFFLER 1MUFFLER 1
-
26K8-51129-00-00 ...NIPPLE...NIPPLE
-
366E-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
493606-12019-00 PIN, DOWELPIN, DOWEL
-
590105-10M85-00 BOLT, FLANGEBOLT, FLANGE
-
690105-10M86-00 BOLT, FLANGEBOLT, FLANGE
-
790465-20M78-00 CLAMPCLAMP
-
890465-12M56-00 CLAMPCLAMP
-
966E-14712-10-8P RING, JOINTRING, JOINT
-
1066E-51129-00-00 ...NIPPLE...NIPPLE
-
1166E-12576-00-00 HOSE 1HOSE 1
-
1290450-22M14-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390105-08M83-00 BOLT, FLANGEBOLT, FLANGE
-
1490105-08M84-00 BOLT, FLANGEBOLT, FLANGE
-
1590105-08M66-00 BOLT, FLANGEBOLT, FLANGE
-
1693606-12019-00 PIN, DOWELPIN, DOWEL
-
1766E-14749-00-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
1866E-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
1990450-99M02-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2066E-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
2190450-99M18-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2266E-51142-00-00 CONNECTIONCONNECTION
-
2390445-14M21-00 HOSE (L890)HOSE (L890)
-
2490446-20M70-00 HOSEHOSE
-
2590450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2690450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2763M-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
2866E-12577-00-00 HOSE 2HOSE 2
-
2966E-12579-00-00 HOSE 4HOSE 4
-
3090450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3190450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3266E-14721-10-94 MUFFLER 2MUFFLER 2
-
3390105-10M82-00 BOLT, FLANGEBOLT, FLANGE
-
3490116-10M66-00 BOLT, STUDBOLT, STUD
-
3592990-10600-00 WASHER, PLATEWASHER, PLATE
-
3695380-10600-00 NUTNUT
-
3766E-41124-10-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
3893606-12019-00 PIN, DOWELPIN, DOWEL
-
3990116-08M64-00 BOLT, STUDBOLT, STUD
-
4095333-08600-00 NUTNUT
-
4192990-08600-00 WASHER, PLATEWASHER, PLATE
-
4290116-10M65-00 BOLT, STUDBOLT, STUD
-
4395380-10600-00 NUTNUT
-
4492990-10600-00 WASHER, PLATEWASHER, PLATE
-
4590105-08M83-00 BOLT, FLANGEBOLT, FLANGE
-
4667A-41123-00-94 OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
4766E-14791-00-94 STAY, MUFFLERSTAY, MUFFLER
-
4890119-10M10-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4990119-10M00-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
50663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
5161L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
5290445-09M21-00 HOSE (L445)HOSE (L445)
-
5390465-11M10-00 CLAMPCLAMP
-
5466E-14763-10-00 SPACERSPACER
-
5566E-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
5697885-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
5792995-06600-00 WASHERWASHER
-
5866E-14771-01-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
5990119-10M18-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6090445-18M17-00 HOSE (L60)HOSE (L60)
-
6190445-18M02-00 HOSE (L700)HOSE (L700)
-
6266E-12578-00-00 HOSE 3HOSE 3
-
6390450-22M14-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6490446-27M95-00 HOSEHOSE
-
6567A-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
6690460-90M11-00 CLAMP, HOSECLAMP, HOSE
-
6763M-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
6890450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6990450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
7090446-24M52-00 HOSEHOSE
-
7164T-12580-00-00 JOINT ASSYJOINT ASSY
-
7290446-24M89-00 HOSEHOSE
-
73682-84385-01-00 CAP 1CAP 1
-
7467X-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
7590601-118UF-00 BAND, HOSE 8BAND, HOSE 8
-
76EU0-61652-00-00 NUTNUT
