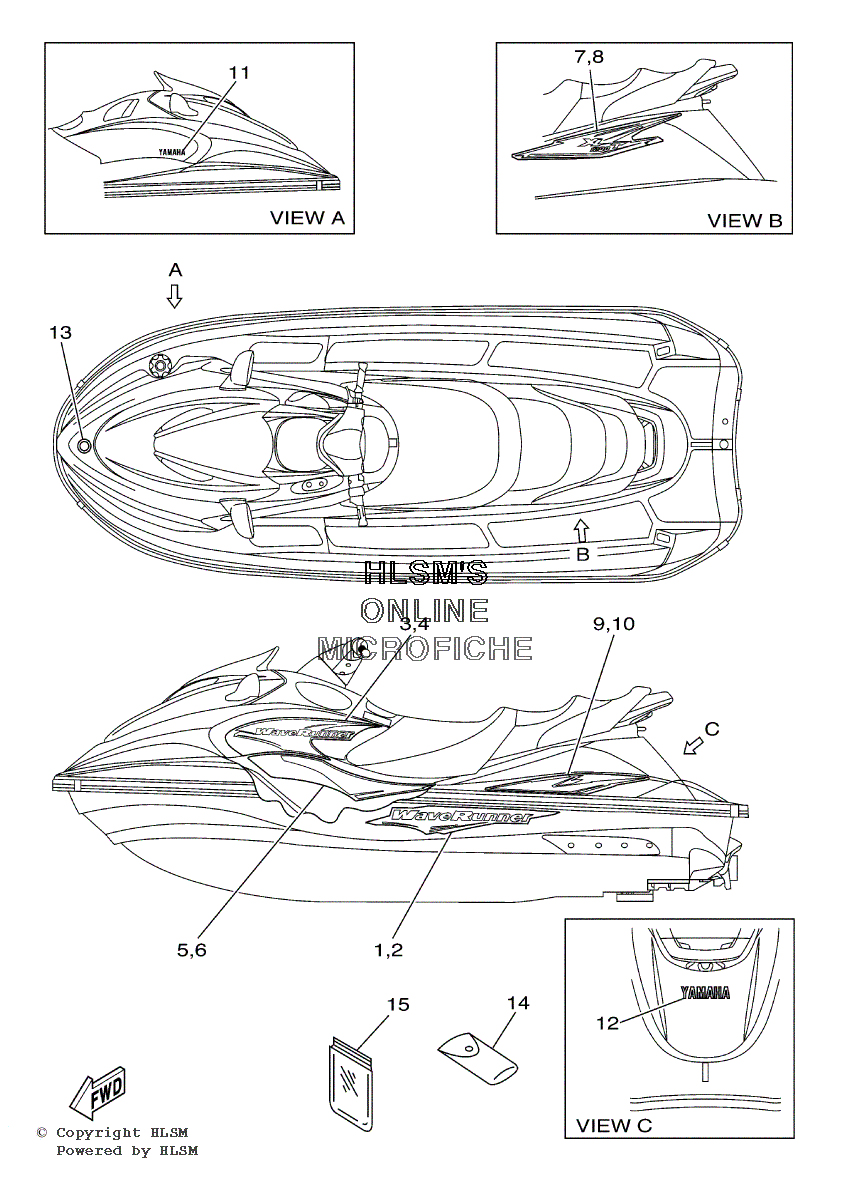

GRAPHICS - WARNING / CAUTION для Yamaha XL 1200 Z - 2001 года выпуска`
-
№АртикулНазвание
-
1F0V-U41B1-00-00 LABEL, WARNING JDC 1LABEL, WARNING JDC 1
-
2F0M-U41B2-00-00 LABEL, WARNING JDC 2LABEL, WARNING JDC 2
-
3F0P-U415B-00-00 LABEL, WARNING (FUEL)LABEL, WARNING (FUEL)
-
4F0P-U418R-00-00 LABEL, WARNING VENTILATIONLABEL, WARNING VENTILATION
-
5F0P-U41D5-00-00 LABEL, WARNING SHIFT LEVERLABEL, WARNING SHIFT LEVER
-
6F0P-U41D7-00-00 LABEL, WARNING OIL TANKLABEL, WARNING OIL TANK
-
7F0V-U418J-00-00 LABEL, CAUTIONLABEL, CAUTION
-
8F0P-U41E1-10-00 LABEL, SET 1LABEL, SET 1
-
9F0P-U418B-00-00 LABEL, CAUTION (RH INSIDE)LABEL, CAUTION (RH INSIDE)
-
10F0V-U41E1-00-00 LABEL, SET 1LABEL, SET 1
-
11F0V-U418U-00-00 LABEL, WARNING (START)LABEL, WARNING (START)
-
12F0X-U418V-00-00 LABEL, WARNING MUFFLERLABEL, WARNING MUFFLER
-
13F0P-U418G-00-00 LABEL, CAUTIONLABEL, CAUTION
-
14F0V-U419M-00-00 LABEL, CAUTIONLABEL, CAUTION
-
15F0P-U41F5-00-00 LABEL, FIRE EXTINGUISHER 1LABEL, FIRE EXTINGUISHER 1
-
16F0P-U416R-00-00 LABEL, WARNING (REVERSE)LABEL, WARNING (REVERSE)
-
17F0P-U41G1-00-00 LABEL, CAPACITYLABEL, CAPACITY
