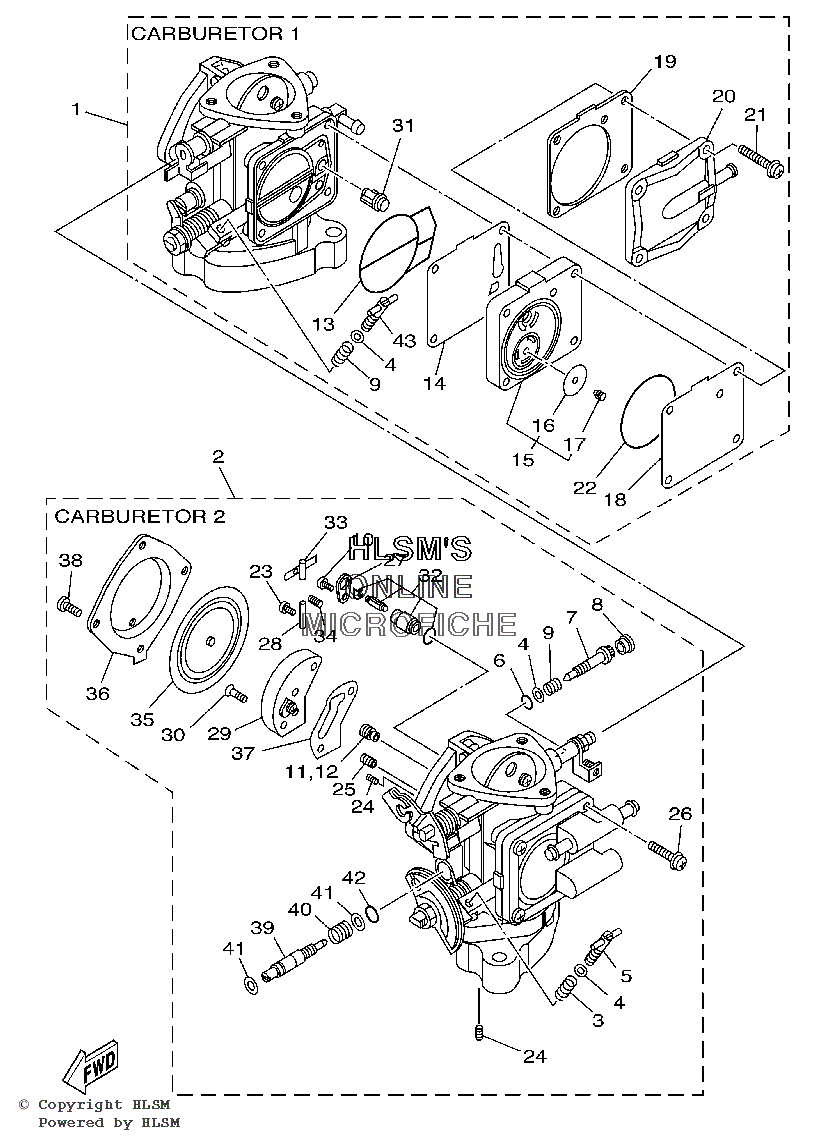

CARBURETOR для Yamaha SJ 700 AZ - 2001 года выпуска`

№

Артикул

Название
1

64U-14301-02-00 CARBURETOR ASSY 1

CARBURETOR ASSY 1

79 220 ₽
2

64U-14302-02-00 CARBURETOR ASSY 2

CARBURETOR ASSY 2

0 ₽
3

47X-14133-00-00 ...SPRING, THROTTLE STOP (CARBURETOR 2)

...SPRING, THROTTLE STOP (CARBURETOR 2)

370 ₽
4

812-14235-00-00 ...WASHER, NEEDLE

...WASHER, NEEDLE

340 ₽
5

6M6-14521-01-00 ...SCREW, ADJUST (CARBURETOR 2)

...SCREW, ADJUST (CARBURETOR 2)

5 030 ₽
6

812-14147-00-00 ...O-RING

...O-RING

500 ₽
7

63M-14946-00-00 ...PLATE, NEEDLE FITTING

...PLATE, NEEDLE FITTING

1 730 ₽
8

6K8-14471-10-00 ...CAP, CARBURETOR

...CAP, CARBURETOR

510 ₽
9

3KW-14932-00-00 ...SPRING, THROTTLE 2

...SPRING, THROTTLE 2

400 ₽
10

6M6-14503-00-00 ...SCREW

...SCREW

400 ₽
11

3G2-14231-26-00 ...JET, MAIN (130) (CARBURETOR 1)

...JET, MAIN (130) (CARBURETOR 1)

1 190 ₽
12

3G2-14231-26-00 ...JET, MAIN (130) (CARBURETOR 2)

...JET, MAIN (130) (CARBURETOR 2)

1 190 ₽
13

6K8-14564-00-00 ...O-RING

...O-RING

1 360 ₽
14

6K8-24411-20-00 ...DIAPHRAGM (CARBURETOR 1)

...DIAPHRAGM (CARBURETOR 1)

2 360 ₽
15

6M6-24413-01-00 ...BODY 2 (CARBURETOR 1)

...BODY 2 (CARBURETOR 1)

4 400 ₽
16

65U-24421-00-00 ......VALVE, CHECK (CARBURETOR 1)

......VALVE, CHECK (CARBURETOR 1)

1 110 ₽
17

65U-24492-00-00 ......BUSH, FUEL PUMP (CARBURETOR 1)

......BUSH, FUEL PUMP (CARBURETOR 1)

1 330 ₽
18

6K8-24421-10-00 ...VALVE, CHECK (CARBURETOR 1)

...VALVE, CHECK (CARBURETOR 1)

3 770 ₽
19

6K8-24431-20-00 ...GASKET, FUEL PUMP 1 (CARBURETOR 1)

...GASKET, FUEL PUMP 1 (CARBURETOR 1)

1 730 ₽
20

6K8-24452-10-00 ...COVER (CARBURETOR 1)

...COVER (CARBURETOR 1)

970 ₽
21

97980-05330-00 ...SCREW, WITH WASHER (CARBURETOR 1)

...SCREW, WITH WASHER (CARBURETOR 1)

0 ₽
22

6K8-14563-00-00 ...O-RING (CARBURETOR 1)

...O-RING (CARBURETOR 1)

1 360 ₽
23

6K8-14503-02-00 ...SCREW

...SCREW

400 ₽
24

6K8-14521-10-00 ...SCREW

...SCREW

4 400 ₽
25

830-14231-14-00 ...JET, MAIN (70)

...JET, MAIN (70)

1 040 ₽
26

98580-05018-00 ...SCREW, PAN HEAD (CARBURETOR 1)

...SCREW, PAN HEAD (CARBURETOR 1)

190 ₽
27

6K8-14527-11-00 ...PLATE

...PLATE

810 ₽
28

439-14186-00-00 ...PIN, FLOAT

...PIN, FLOAT

530 ₽
29

6R7-24412-01-00 ...BODY 1

...BODY 1

3 300 ₽
30

6K8-14523-11-00 ...SCREW, STOP

...SCREW, STOP

810 ₽
31

6R7-14569-00-00 ...STRAINER

...STRAINER

1 170 ₽
32

61X-14916-15-00 ...NEEDLE

...NEEDLE

4 250 ₽
33

6K8-14547-01-00 ...ARM, FLOAT

...ARM, FLOAT

920 ₽
34

6R7-14253-00-00 ...SPRING

...SPRING

320 ₽
35

6R7-14541-00-00 ...DIAPHRAGM, PUMP

...DIAPHRAGM, PUMP

3 770 ₽
36

6R7-14542-00-00 ...BODY, PUMP 1

...BODY, PUMP 1

4 400 ₽
37

6K8-14536-11-00 ...GASKET

...GASKET

2 200 ₽
38

97880-05012-00 ...SCREW, PAN HEAD

...SCREW, PAN HEAD

310 ₽
39

64U-14923-00-00 ...SCREW, PILOT

...SCREW, PILOT

4 400 ₽
40

6K8-14589-00-00 ...SPRING

...SPRING

320 ₽
41

822-14235-00-00 ...WASHER, NEEDLE

...WASHER, NEEDLE

220 ₽
42

583-14561-00-00 ...O-RING

...O-RING

540 ₽
43

6K8-14521-01-00 ...SCREW, ADJUST (CARBURETOR 1)

...SCREW, ADJUST (CARBURETOR 1)

4 400 ₽
