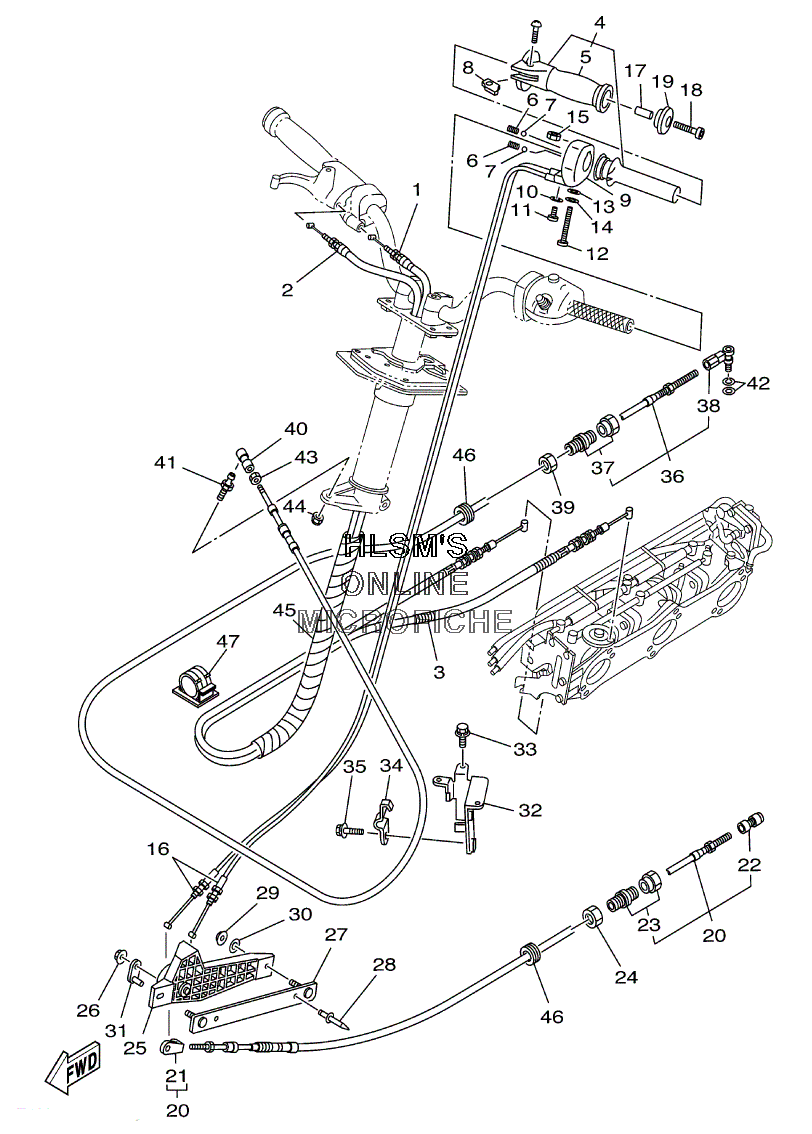

CONTROL CABLES для Yamaha GP 1200 RZ - 2001 года выпуска
-
№АртикулНазвание
-
167X-67242-00-00 CABLE, CHOKECABLE, CHOKE
-
266V-67252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
390446-10ME3-00 HOSEHOSE
-
4GP7-U157A-00-00 GRIP HANDLE ASSY.GRIP HANDLE ASSY.
-
5GP7-U155C-00-00 ...GRIP, HANDLE...GRIP, HANDLE
-
6GP7-U152P-00-00 SPRINGSPRING
-
7GP7-U152R-00-00 BALLBALL
-
8GP7-U151M-00-00 LEVER ASSYLEVER ASSY
-
9GP7-U152M-00-00 HOUSING ASSYHOUSING ASSY
-
1092990-04600-00 WASHER, PLATEWASHER, PLATE
-
1198980-04010-00 SCREW, BINDSCREW, BIND
-
1297880-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392990-06600-00 WASHER, PLATEWASHER, PLATE
-
149299R-06100-00 WASHERWASHER
-
15GH1-U143B-00-00 NUT, SPECIALNUT, SPECIAL
-
16F0D-U153D-01-00 CABLE, NOZZLE CONTROL 2CABLE, NOZZLE CONTROL 2
-
1790387-05800-00 COLLARCOLLAR
-
1890110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
19GP7-U155F-00-00 GRIP, ENDGRIP, END
-
20F0X-U153E-01-00 CABLE, NOZZLE CONTROL 3CABLE, NOZZLE CONTROL 3
-
21GH1-U046C-00-00 ...END, CABLE...END, CABLE
-
22EU0-U1461-30-00 ...SHAFT, JOINT BALL...SHAFT, JOINT BALL
-
23EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
24EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
25F0D-U153J-00-00 REMOCON, NOZZLE 2REMOCON, NOZZLE 2
-
269572R-06300-00 NUT, FLANGENUT, FLANGE
-
27F0X-U4958-00-00 BASE, REMOCON.BASE, REMOCON.
-
2890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
299572R-06300-00 NUT, FLANGENUT, FLANGE
-
309299R-06200-00 WASHERWASHER
-
31F0D-U152C-00-00 PINPIN
-
32F0X-61467-00-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
3390119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
34F0X-61468-00-00 STOPPER, CABLESTOPPER, CABLE
-
3590119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
36F0X-U1481-00-00 CABLE, STEERINGCABLE, STEERING
-
37GK5-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
38GP8-U1461-T0-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
39EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
40GK5-U146F-00-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
41EU0-U1461-02-00 STUD, JOINT BALLSTUD, JOINT BALL
-
4290201-06906-00 WASHER, PLATEWASHER, PLATE
-
439538R-06700-00 NUTNUT
-
449572R-06300-00 NUT, FLANGENUT, FLANGE
-
4590448-25800-00 HOSE, WITH UNIONHOSE, WITH UNION
-
4690480-279U1-00 GROMMETGROMMET
-
4790600-925U9-00 CLAMPCLAMP
