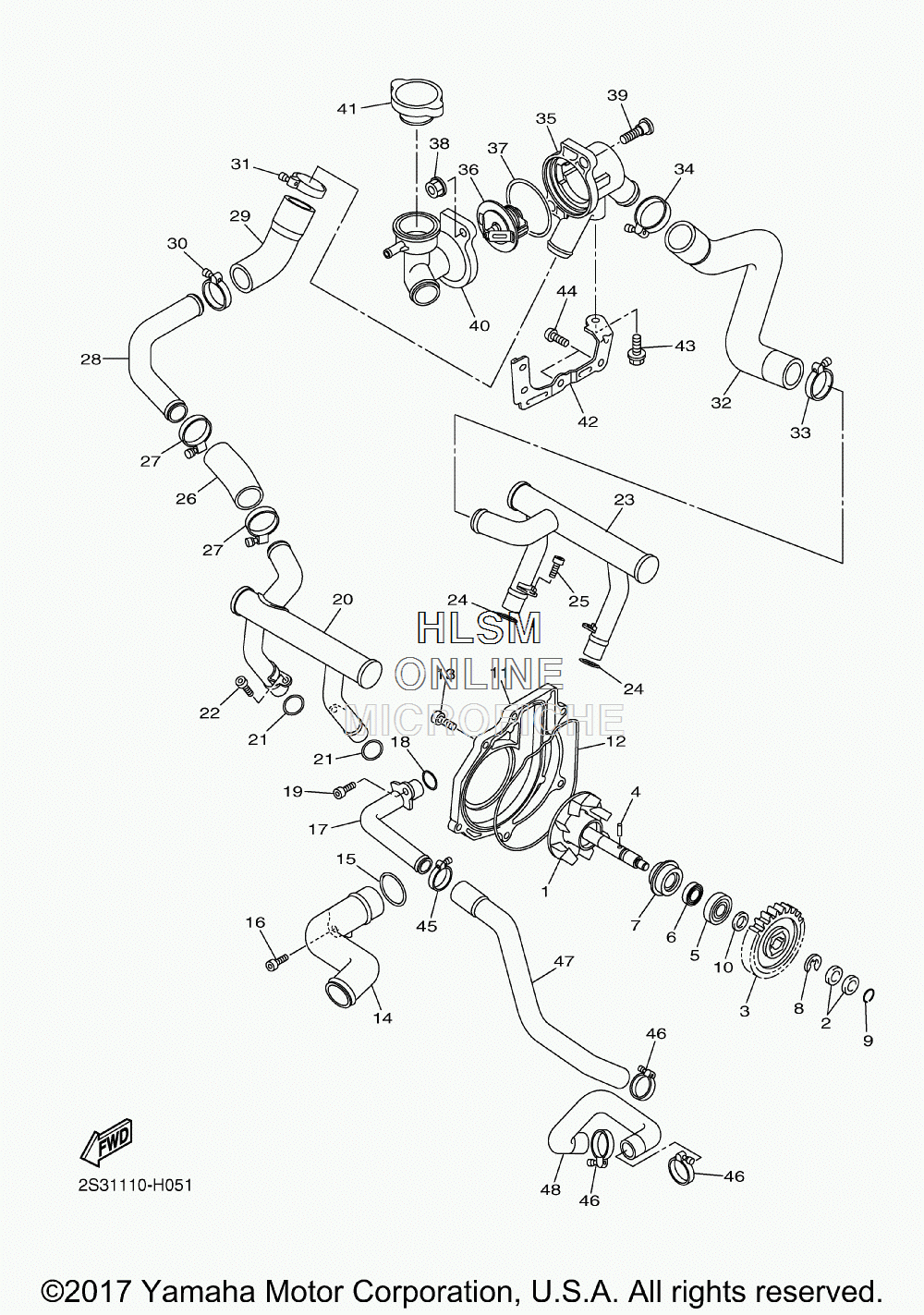

WATER PUMP для Yamaha V MAX - 2018 года выпуска`
-
№АртикулНазвание
-
12S3-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
290201-08067-00 WASHER, PLATEWASHER, PLATE
-
32S3-12459-00-00 GEAR, IMPELLER SHAFTGEAR, IMPELLER SHAFT
-
493603-16219-00 PIN, DOWELPIN, DOWEL
-
593306-00105-00 BEARINGBEARING
-
693102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
75VK-12438-00-00 SEAL, MECHANICALSEAL, MECHANICAL
-
899009-12400-00 CIRCLIPCIRCLIP
-
993440-07182-00 CIRCLIPCIRCLIP
-
1090201-12541-00 WASHER, PLATEWASHER, PLATE
-
112S3-12422-10-00 COVER, HOUSINGCOVER, HOUSING
-
122S3-12414-00-00 GASKET, COVERGASKET, COVER
-
1390110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
142S3-12483-00-00 PIPE 3PIPE 3
-
1593210-27194-00 O-RINGO-RING
-
1690110-06247-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
172S3-12485-00-00 PIPE 5PIPE 5
-
1893210-14104-00 O-RINGO-RING
-
1990110-06247-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
202S3-12481-00-00 PIPE 1PIPE 1
-
2193210-15414-00 O-RINGO-RING
-
2291312-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
232S3-12482-00-00 PIPE 2PIPE 2
-
2493210-15414-00 O-RINGO-RING
-
2591312-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
262S3-12589-00-00 HOSE 6HOSE 6
-
2790450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
282S3-12484-00-00 PIPE 4PIPE 4
-
292S3-12551-00-00 HOSE 7HOSE 7
-
3090450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3190450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
322S3-1243E-00-00 HOSE 2HOSE 2
-
3390450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3490450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
352S3-12417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
365LP-12411-00-00 THERMOSTATTHERMOSTAT
-
3793210-49046-00 O-RINGO-RING
-
3895702-06500-00 NUT, FLANGENUT, FLANGE
-
392S3-12615-00-00 BOLTBOLT
-
402S3-12591-00-00 SUPT, FILLER NECKSUPT, FILLER NECK
-
415SL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
422S3-12443-00-00 STAYSTAY
-
4390105-06081-00 BOLT, FLANGEBOLT, FLANGE
-
4490111-06054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4590450-25037-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4690450-22001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
472S3-12588-00-00 HOSE 5HOSE 5
-
482S3-12579-00-00 HOSE 4HOSE 4
