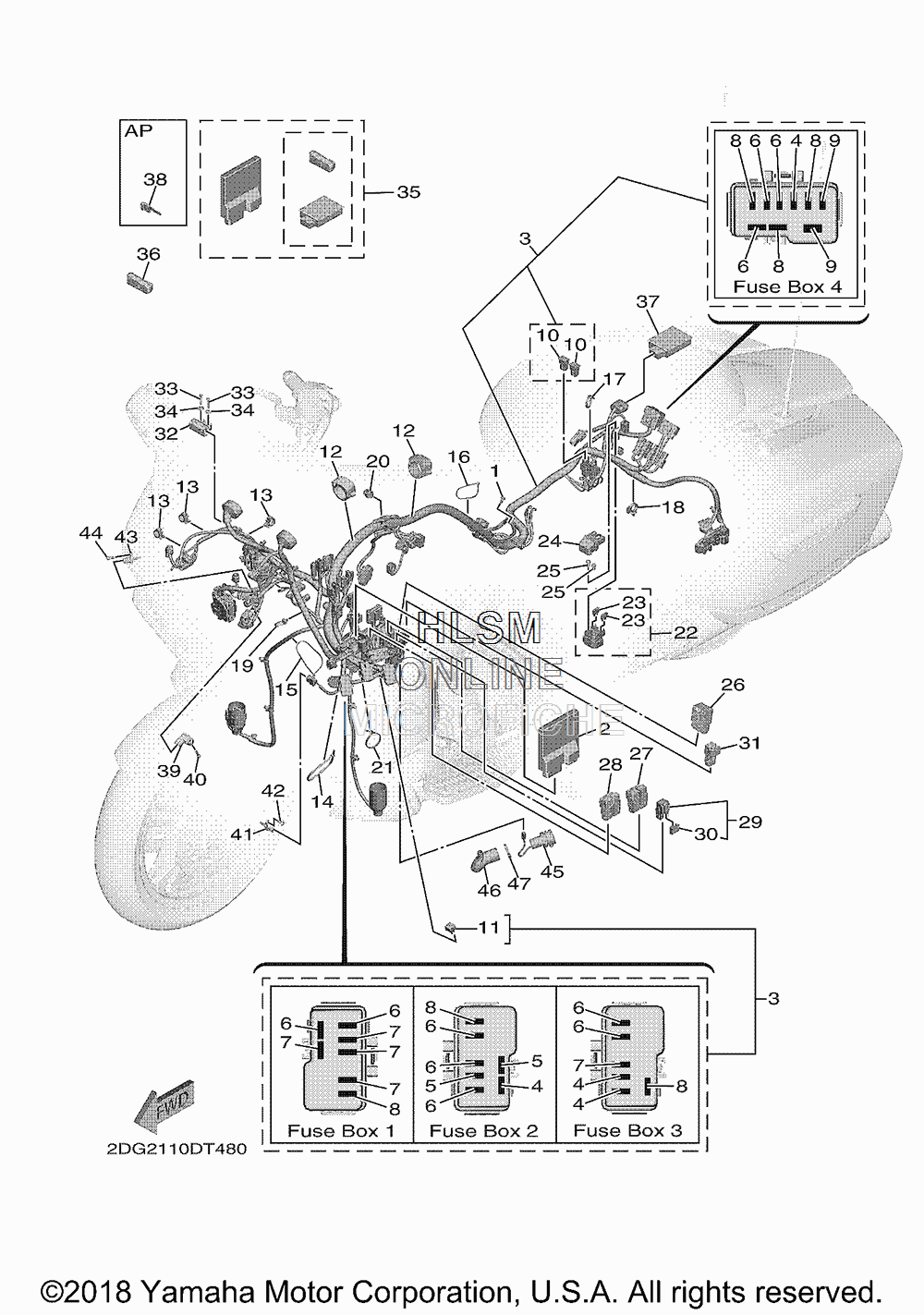

ELECTRICAL 2 для Yamaha STAR ELUDER - 2018 года выпуска`
-
№АртикулНазвание
-
190153-06044-00 SCREW, HEXAGONSCREW, HEXAGON
-
22DG-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
32DG-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
45JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
55JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
65JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
75JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
85JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
95JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
105JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
113XV-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
1290464-40002-00 CLAMPCLAMP
-
1390464-16006-00 CLAMPCLAMP
-
1490464-80002-00 CLAMPCLAMP
-
153MA-82591-00-00 BANDBAND
-
1690460-15126-00 CLAMP, HOSECLAMP, HOSE
-
1790464-12045-00 CLAMPCLAMP
-
1890464-20181-00 CLAMPCLAMP
-
1990464-20016-00 CLAMPCLAMP
-
2090464-14010-00 CLAMPCLAMP
-
211UA-82591-00-00 BANDBAND
-
222DF-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2336Y-82151-00-00 ...FUSE (15A-BLUE)...FUSE (15A-BLUE)
-
245SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
2595027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
265VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
275XT-81950-00-00 RELAY ASSYRELAY ASSY
-
285XT-81950-00-00 RELAY ASSYRELAY ASSY
-
291ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
305JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
315DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
325VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3391312-04025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490201-04030-00 WASHER, PLATEWASHER, PLATE
-
352DF-W862A-00-00 REMOTE CONTROL UNIT SETREMOTE CONTROL UNIT SET
-
362DF-86261-00-00 XMTR. COMP.XMTR. COMP.
-
372DF-86265-00-00 RECEIVER COMPLETERECEIVER COMPLETE
-
382DF-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
391WS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
4091312-05020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
415YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4292012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
435YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4492012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4523P-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
46538-82599-10-00 COVER, CONNECTERCOVER, CONNECTER
-
4790464-25004-00 CLAMPCLAMP
