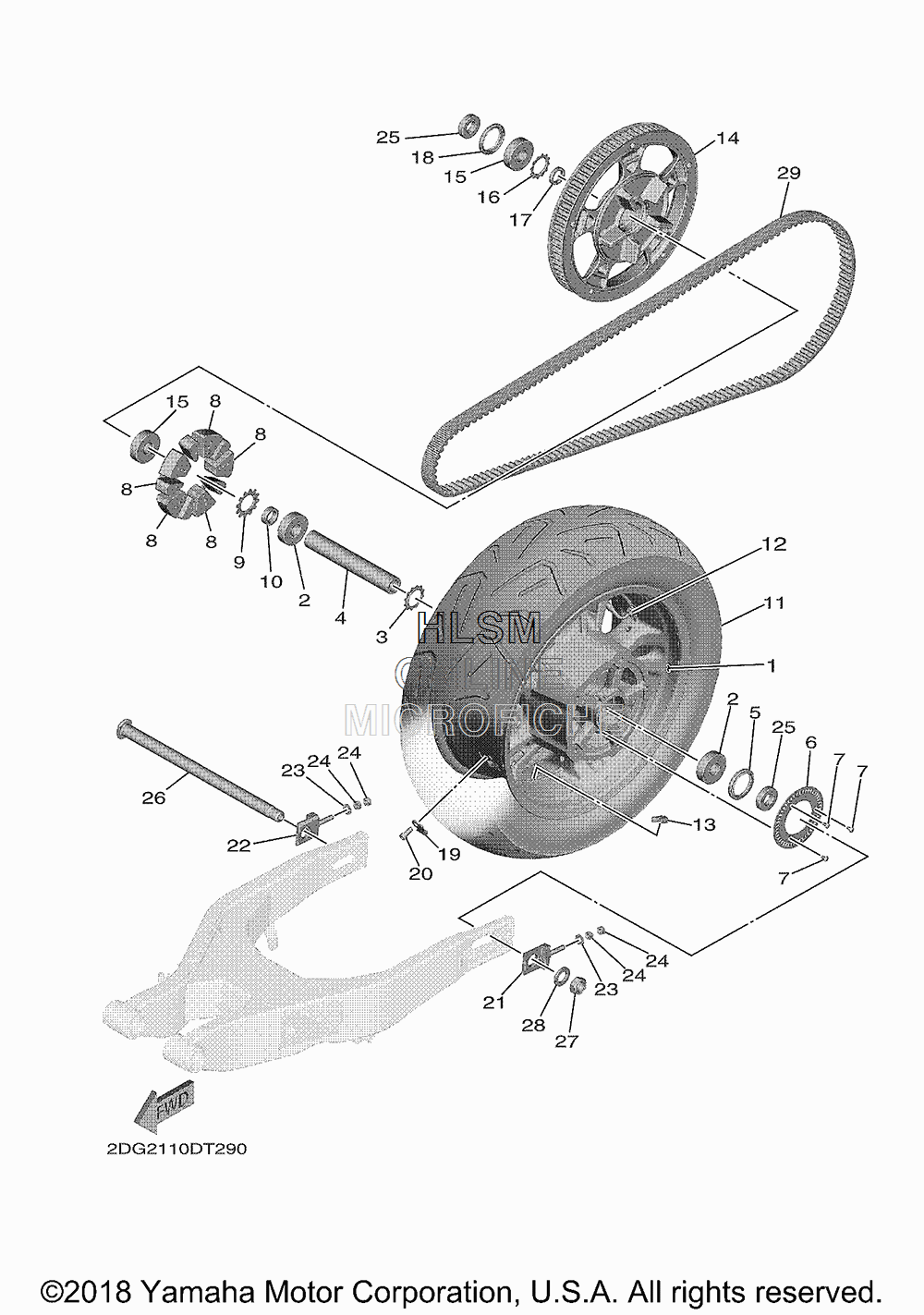

WHEEL - REAR для Yamaha STAR ELUDER (SILVER) - 2018 года выпуска`
-
№АртикулНазвание
-
12DF-25338-10-0X CAST WHEEL, REAR (LGB - GLOSS BLACK / HTR - HEAT RED FOR S3 - SILVER)CAST WHEEL, REAR (LGB - GLOSS BLACK / HTR - HEAT RED FOR S3 - SILVER)
-
293306-37219-00 BEARINGBEARING
-
32DF-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
42DF-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
593105-42024-00 OIL SEALOIL SEAL
-
61XC-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
790149-05029-00 SCREWSCREW
-
82DF-25364-00-00 DAMPERDAMPER
-
92DF-25316-00-00 FLANGE, SPACER 2FLANGE, SPACER 2
-
102DF-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1194120-16008-00 TIRE (200/55R16M/C 77H)TIRE (200/55R16M/C 77H)
-
1293900-00025-00 VALVE, RIM (PVR59A)VALVE, RIM (PVR59A)
-
135MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
135MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
135MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
142DF-25470-00-00 SPROCKET, DRIVEN (70T)SPROCKET, DRIVEN (70T)
-
1593306-37219-00 BEARINGBEARING
-
162DF-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
172DF-25376-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1893105-42024-00 OIL SEALOIL SEAL
-
192DG-25199-00-00 BALANCER, WHEELBALANCER, WHEEL
-
2092012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
212DF-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
222DF-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
2392902-08200-00 WASHERWASHER
-
2495302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
2590387-22034-00 COLLARCOLLAR
-
262DF-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2790185-20002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890201-20036-00 WASHER, PLATEWASHER, PLATE
-
292DF-46241-00-00 BELTBELT
