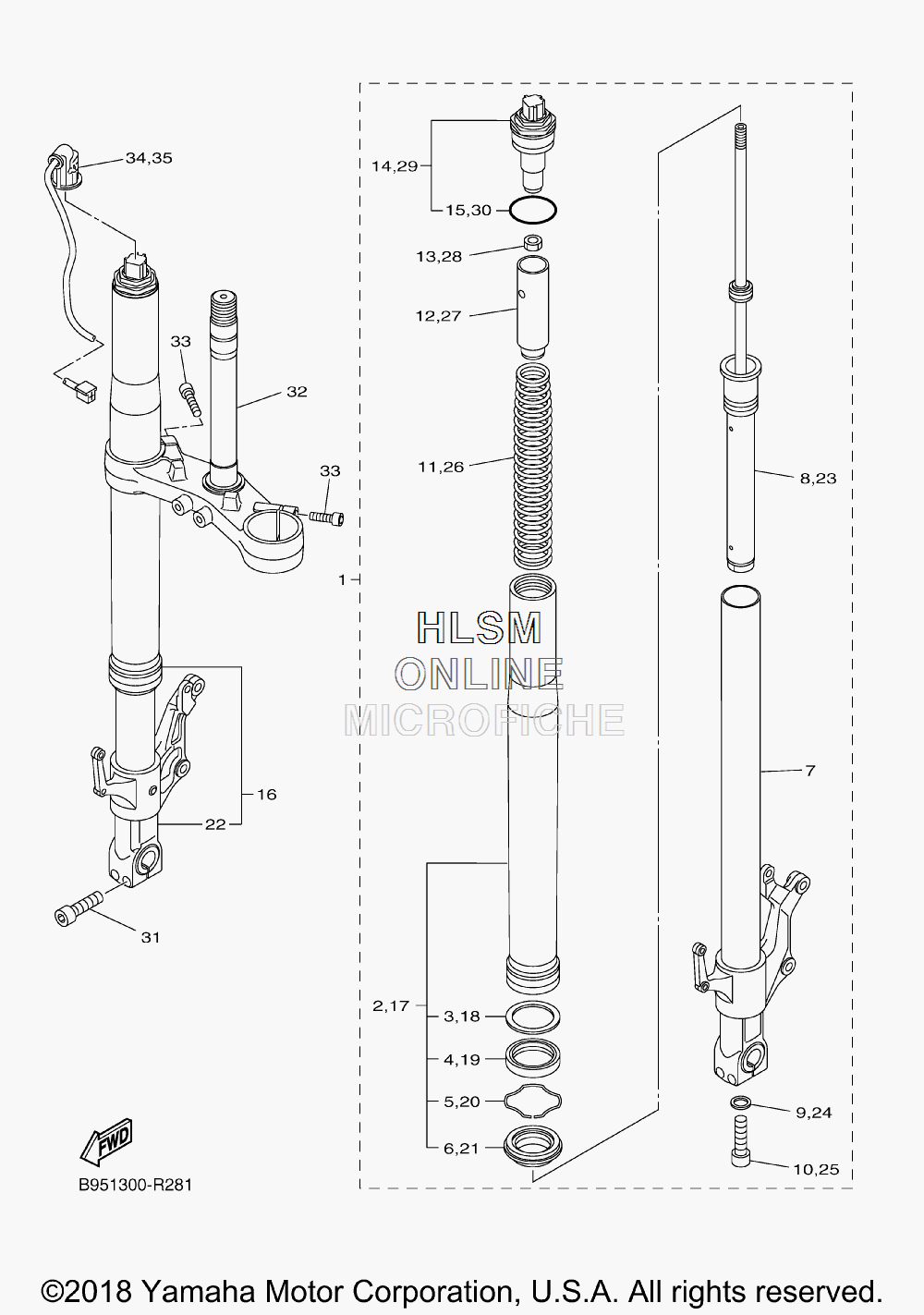

SUSPENSION - FRONT FORK для Yamaha FJR 1300ES - 2018 года выпуска`
-
№АртикулНазвание
-
11MD-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
21MD-23136-00-00 ...TUBE, OUTER...TUBE, OUTER
-
34V4-23146-L0-00 ......WASHER, OIL SEAL......WASHER, OIL SEAL
-
44PU-23145-01-00 ......OIL SEAL......OIL SEAL
-
54V4-23153-L0-00 ......RING, SNAP......RING, SNAP
-
64PU-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
71MD-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
81MD-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
9509-23158-L0-00 ...GASKET...GASKET
-
10278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
111MD-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
121MD-23118-00-00 ...SPACER...SPACER
-
133LC-23357-00-00 ...NUT...NUT
-
141MD-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1539P-23147-00-00 ......O-RING......O-RING
-
161MD-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
171MD-23136-00-00 ...TUBE, OUTER...TUBE, OUTER
-
184V4-23146-L0-00 ......WASHER, OIL SEAL......WASHER, OIL SEAL
-
194PU-23145-01-00 ......OIL SEAL......OIL SEAL
-
204V4-23153-L0-00 ......RING, SNAP......RING, SNAP
-
214PU-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
221MD-23120-00-00 ......INNER TUBE COMP. 2......INNER TUBE COMP. 2
-
231MD-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
24509-23158-L0-00 ...GASKET...GASKET
-
25278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
261MD-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
271MD-23118-00-00 ...SPACER...SPACER
-
283LC-23357-00-00 ...NUT...NUT
-
291MD-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3039P-23147-00-00 ......O-RING......O-RING
-
3191314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
321MD-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3391312-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
341MD-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
351MD-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
