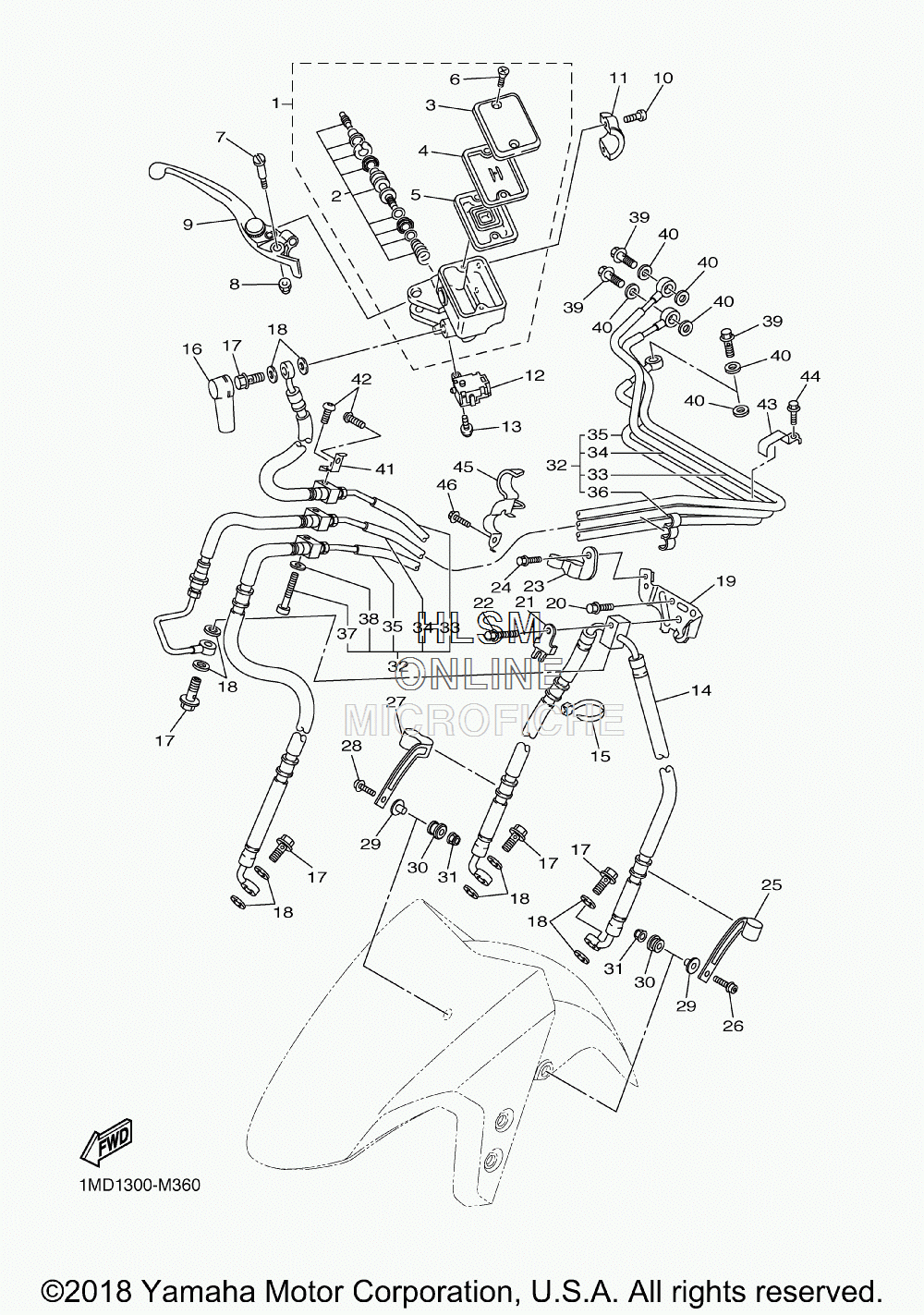

BRAKE - FRONT MASTER CYLINDER для Yamaha FJR 1300ES - 2018 года выпуска`
-
№АртикулНазвание
-
11MC-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
21MC-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VS-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
45VS-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
520S-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, S/LNUT, S/L
-
95VS-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
112D2-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
121MC-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1397602-04214-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
141MD-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
151UA-82591-00-00 BANDBAND
-
164L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
1790401-10020-00 BOLT, UNIONBOLT, UNION
-
1890430-10005-00 GASKETGASKET
-
193P6-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2095022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
215VS-25843-00-00 SLEEVE, CALIPERSLEEVE, CALIPER
-
2295022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
233P6-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
251MD-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2690109-06031-00 BOLTBOLT
-
271MD-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2890109-06031-00 BOLTBOLT
-
2990387-065J6-00 COLLARCOLLAR
-
3090480-12072-00 GROMMETGROMMET
-
3195702-06500-00 NUT, FLANGENUT, FLANGE
-
321MD-2584A-00-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
333P6-2584B-10-00 ...HOSE, BRAKE...HOSE, BRAKE
-
343P6-2584C-10-00 ...HOSE, BRAKE...HOSE, BRAKE
-
351MD-2584D-00-00 ...HOSE, BRAKE...HOSE, BRAKE
-
3690464-07003-00 ...CLAMP...CLAMP
-
3790110-06149-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3892907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
3990401-10020-00 BOLT, UNIONBOLT, UNION
-
4090430-10005-00 GASKETGASKET
-
413P6-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
4292017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
433P6-2639F-00-00 HOLDER 2HOLDER 2
-
4495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
453P6-26393-00-00 HOLDERHOLDER
-
4695022-06010-00 BOLT, FLANGEBOLT, FLANGE
